03036ET3H286TS-W22G WEG AC Motors
Part#:03036ET3H286TS-W22G
Manufacturer:WEG
Alt. Part#:7909492026464
Product Lifecycle:Active
Get a quick Quote!

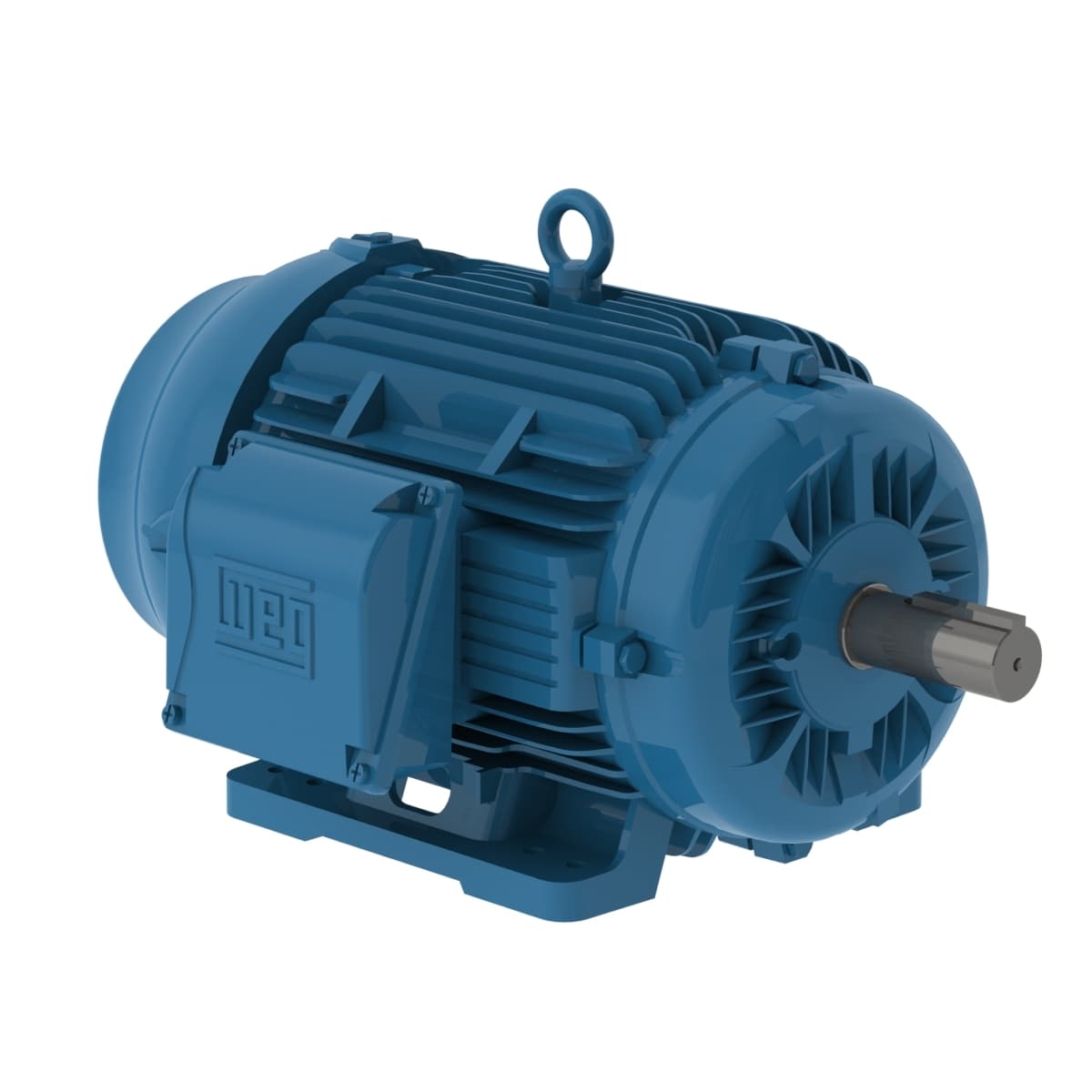

W22 NEMA Premium Efficiency 30 HP 2P 284/6TS 3Ph 575 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 03036ET3H286TS-W22G WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating30 HP
- Rated Speed3545 rpm
- Number of Poles2 Pole
- Voltage575 V
- Flange TypeWithout
- Breakdown torque 250 %
- L. R. Amperes 172 A
- Approx. weight³ 392 lb
- Temperature rise 80 K
- Number of Poles 2
- Insulation Class F
- Output 30 HP (22 kW)
- Locked rotor torque 200 %
- Ambient temperature -20°C to +40°C
- Design B
- Duty Cycle Cont.(S1)
- Service factor 1.25
- Moment of inertia (J) 3.37 sq.ft.lb
- Flange Without
- No load current 7.28 A
- Synchronous speed 3600 rpm
- Terminal box¹ Left position
- Slip 1.53 %
- Locked rotor time 27s (cold) 15s (hot)
- Output rating 30 HP
- Rated current 27.4 A
- Altitude 1000 m.a.s.l.
- Standard NEMA MG-1
- Starting Method Direct On Line
- Noise level² 72.0 dB(A)
- Frame 284/6TS
- Degree of Protection IP55
- Rated speed 3545 rpm
- Rated torque 44.4 ft.lb
- Rotation¹ Both (CW and CCW)
- Mounting F-1
- Frequency 60 Hz
- Number of poles 2
- Rated voltage 575 V
- LRC 6.3x(Code G)
- Voltage 575 V
- Enclosure IC411 - TEFC
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 03036ET3H286TS-W22G Specs
1-year warranty
