03036OT3H284JP WEG AC Motors
Part#:03036OT3H284JP
Manufacturer:WEG
Alt. Part#:7909158614714
Product Lifecycle:Active
Get a quick Quote!

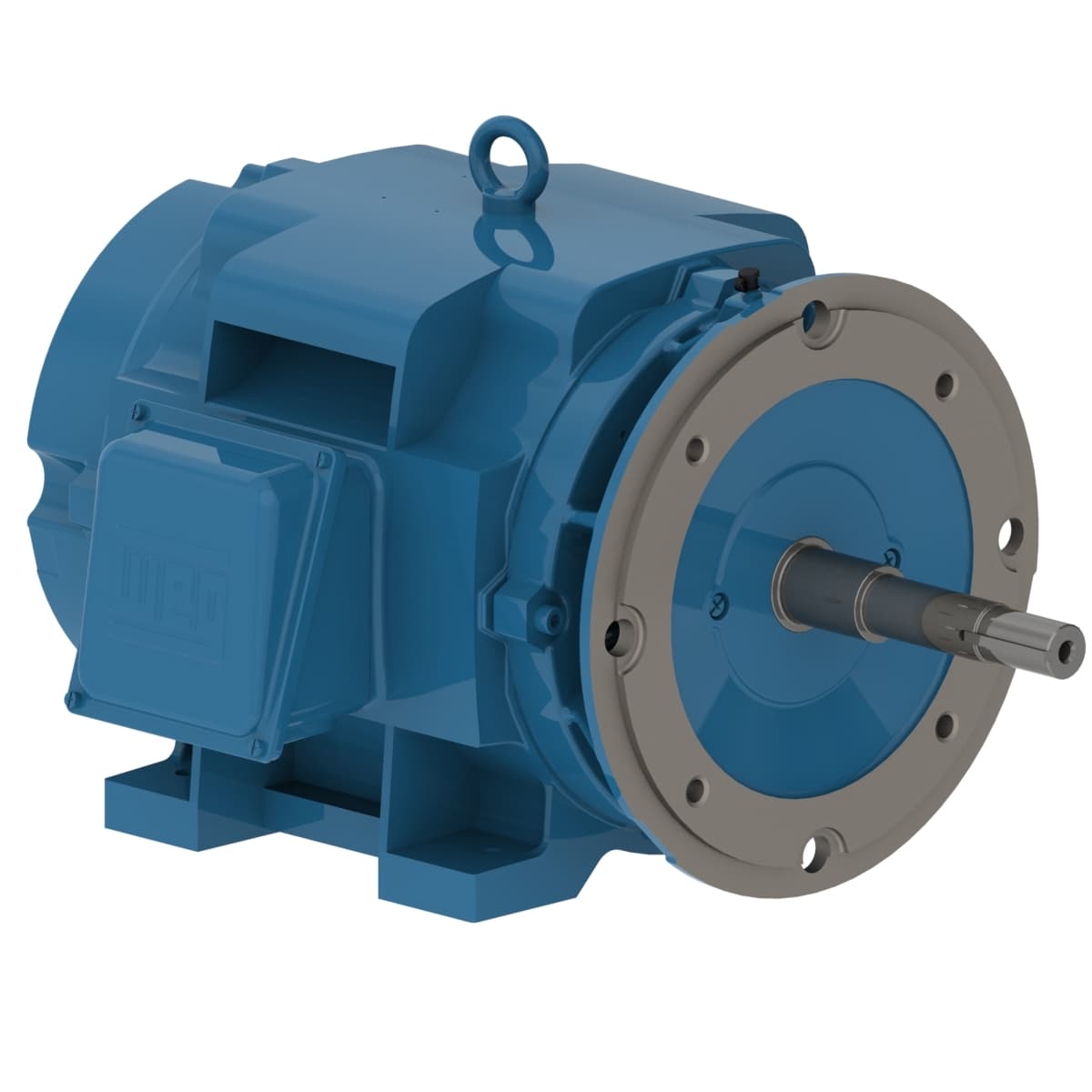

Close Coupled Pump NEMA Premium Efficiency 30 HP 2P 284JP 3Ph 575 V 60 Hz IC01 - ODP - Foot-mounted
Check out the 03036OT3H284JP WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating30 HP
- Rated Speed3550 rpm
- Number of Poles2 Pole
- Voltage575 V
- Flange TypeC
- Rated speed 3550 rpm
- Insulation Class F
- Mounting F-1
- Number of poles 2
- Rated voltage 575 V
- Breakdown torque 260 %
- Starting Method Direct On Line
- Synchronous speed 3600 rpm
- Rated current 28.0 A
- Moment of inertia (J) 1.89 sq.ft.lb
- Enclosure IC01 - ODP
- Rotation¹ Both (CW and CCW)
- Slip 1.39 %
- Rated torque 44.4 ft.lb
- Voltage 575 V
- L. R. Amperes 176 A
- Locked rotor time 18s (cold) 10s (hot)
- Altitude 1000 m.a.s.l.
- Terminal box¹ Left position
- Output 30 HP (22 kW)
- Duty Cycle Cont.(S1)
- Standard NEMA MG-1
- Frequency 60 Hz
- Number of Poles 2
- Locked rotor torque 180 %
- Design B
- Temperature rise 80 K
- Ambient temperature -20°C to +40°C
- Approx. weight³ 332 lb
- Output rating 30 HP
- Frame 284JP
- No load current 10.3 A
- Degree of Protection IP23
- Flange C
- LRC 6.3x(Code G)
- Service factor 1.15
- Noise level² 72.0 dB(A)
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 03036OT3H284JP Specs
