03036OP3EFP284TSC WEG AC Motors
Part#:03036OP3EFP284TSC
Manufacturer:WEG
Alt. Part#:7891327633193
Product Lifecycle:Active
Get a quick Quote!

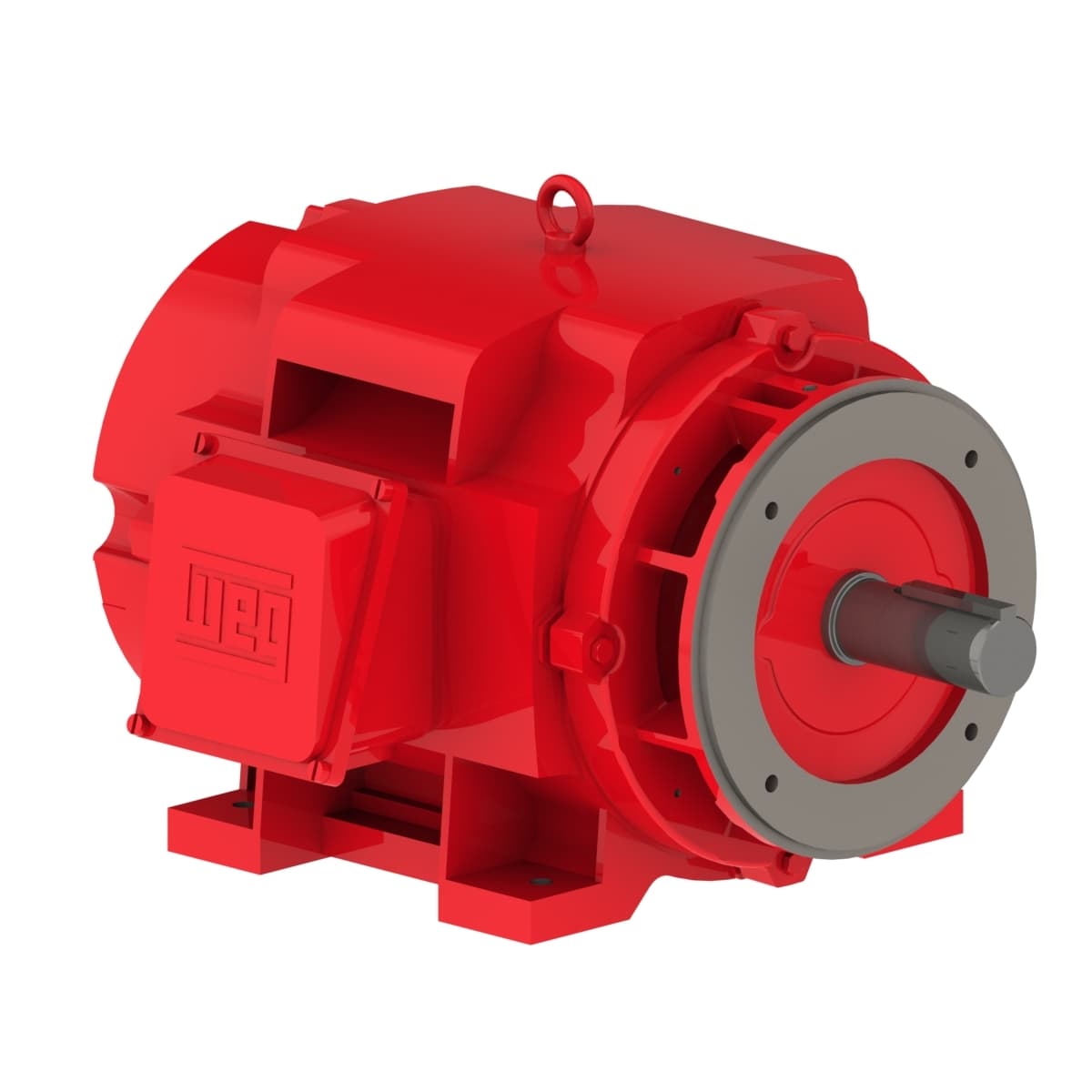

ODP High Efficiency 30 HP 2P 284TSC 3Ph 230/460 V 60 Hz IC01 - ODP - Foot-mounted
Check out the 03036OP3EFP284TSC WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating30 HP
- Rated Speed3540 rpm
- Number of Poles2 Pole
- Voltage230/460 V
- Flange TypeC
- Frame 284TSC
- LRC 6.2x(Code G)
- Service factor 1.15
- Degree of Protection IP23
- Synchronous speed 3600 rpm
- Frequency 60 Hz
- No load current 18.2/9.10 A
- Temperature rise 80 K
- Standard NEMA MG-1
- Locked rotor time 21s (cold) 12s (hot)
- Altitude 1000 m.a.s.l.
- Flange C
- Rated voltage 230/460 V
- Design B
- Rotation¹ Both (CW and CCW)
- Slip 1.67 %
- Rated torque 44.5 ft.lb
- Starting Method Direct On Line
- Terminal box¹ Left position
- Rated speed 3540 rpm
- Rated current 69.0/34.5 A
- Duty Cycle Cont.(S1)
- Noise level² 72.0 dB(A)
- Number of Poles 2
- Breakdown torque 270 %
- Mounting F-1
- Output rating 30 HP
- Locked rotor torque 200 %
- Ambient temperature -20°C to +40°C
- Number of poles 2
- Output 30 HP (22 kW)
- Moment of inertia (J) 1.68 sq.ft.lb
- Enclosure IC01 - ODP
- Voltage 230/460 V
- L. R. Amperes 428/214 A
- Insulation Class F
- Approx. weight³ 322 lb
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
