02536ST3QIE284TSC-W2 WEG AC Motors
Part#:02536ST3QIE284TSC-W2
Manufacturer:WEG
Alt. Part#:7909323158876
Product Lifecycle:Active
Get a quick Quote!

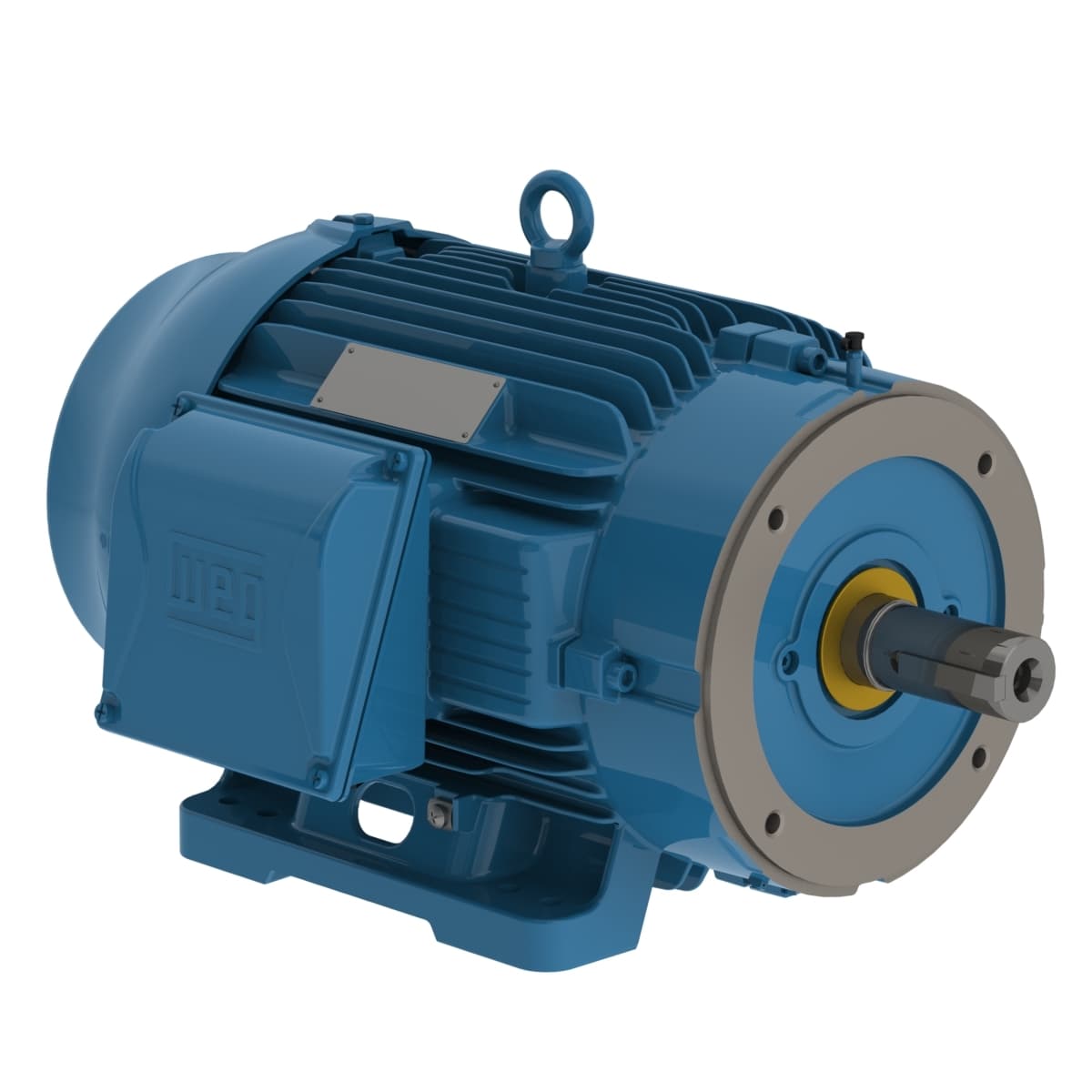

W22 IEEE 841 NEMA Premium Efficiency 25 HP 2P 284/6TSC 3Ph 460 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 02536ST3QIE284TSC-W2 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating25 HP
- Rated Speed3550 rpm
- Number of Poles2 Pole
- Voltage460 V
- Flange TypeC
- Frequency 60 Hz
- Breakdown torque 260 %
- Enclosure IC411 - TEFC
- No load current 8.20 A
- Altitude 1000 m.a.s.l.
- Mounting F-1
- L. R. Amperes 180 A
- Duty Cycle Cont.(S1)
- Output 25 HP (18.5 kW)
- Locked rotor time 28s (cold) 16s (hot)
- Starting Method Direct On Line
- Output rating 25 HP
- Rotation¹ Both (CW and CCW)
- Rated current 29.1 A
- Moment of inertia (J) 2.69 sq.ft.lb
- Service factor 1.25
- Noise level² 72.0 dB(A)
- Rated voltage 460 V
- Synchronous speed 3600 rpm
- Number of Poles 2
- Locked rotor torque 220 %
- Ambient temperature -20°C to +40°C
- Standard NEMA MG-1
- Slip 1.39 %
- Insulation Class F
- Temperature rise 80 K
- Number of poles 2
- Terminal box¹ Left position
- Frame 284/6TSC
- LRC 6.2x(Code G)
- Rated torque 37.0 ft.lb
- Voltage 460 V
- Flange C
- Rated speed 3550 rpm
- Design B
- Approx. weight³ 400 lb
- Degree of Protection IP56
