02536OT3ECD256TF2 WEG AC Motors
Part#:02536OT3ECD256TF2
Manufacturer:WEG
Alt. Part#:7909018873039
Product Lifecycle:Active
Get a quick Quote!

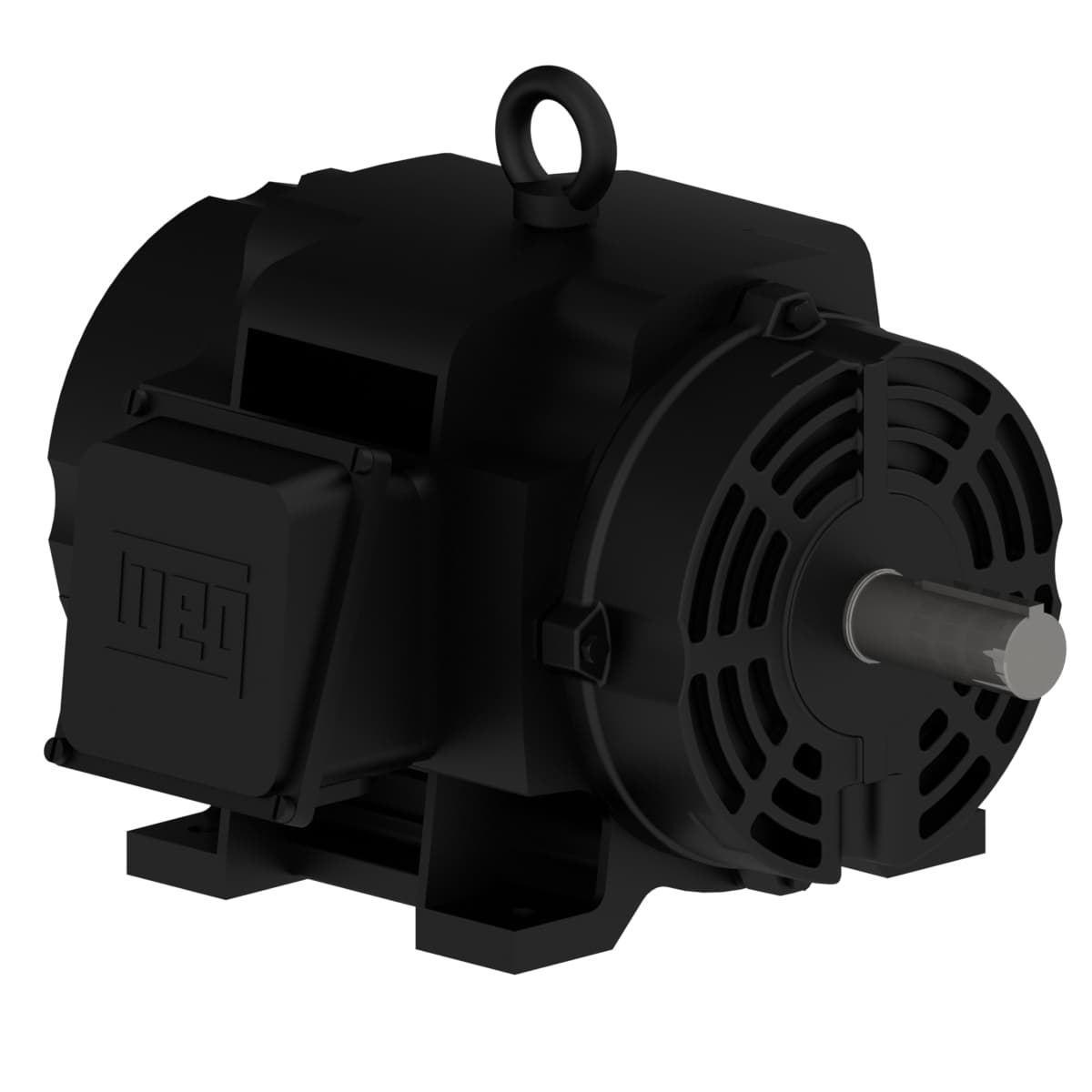

ODP NEMA Premium Efficiency 25 HP 2P 256T 3Ph 230/460 V 60 Hz IC01 - ODP - Foot-mounted
Check out the 02536OT3ECD256TF2 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating25 HP
- Rated Speed3530 rpm
- Number of Poles2 Pole
- Voltage230/460 V
- Flange TypeWithout
- Slip 1.94 %
- Locked rotor time 16s (cold) 9s (hot)
- Ambient temperature -20°C to +40°C
- Output rating 25 HP
- Rated speed 3530 rpm
- Breakdown torque 260 %
- Degree of Protection IP23
- Voltage 230/460 V
- Frequency 60 Hz
- Rated torque 37.2 ft.lb
- Duty Cycle Cont.(S1)
- Standard NEMA MG-1
- Rated voltage 230/460 V
- Moment of inertia (J) 1.08 sq.ft.lb
- Altitude 1000 m.a.s.l.
- Flange Without
- LRC 6.5x(Code G)
- Insulation Class F
- Rotation¹ Both (CW and CCW)
- Terminal box¹ Right position
- Frame 256T
- Starting Method Direct On Line
- Noise level² 67.0 dB(A)
- Output 25 HP (18.5 kW)
- Locked rotor torque 200 %
- Design B
- Synchronous speed 3600 rpm
- Number of Poles 2
- Service factor 1.15
- Mounting F-2
- Rated current 59.6/29.8 A
- Temperature rise 80 K
- Approx. weight³ 245 lb
- L. R. Amperes 387/194 A
- No load current 22.0/11.0 A
- Enclosure IC01 - ODP
- Number of poles 2
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 02536OT3ECD256TF2 Specs
1-year warranty
