02536OT3H256JPV-S WEG AC Motors
Part#:02536OT3H256JPV-S
Manufacturer:WEG
Alt. Part#:7909322237763
Product Lifecycle:Active
Get a quick Quote!

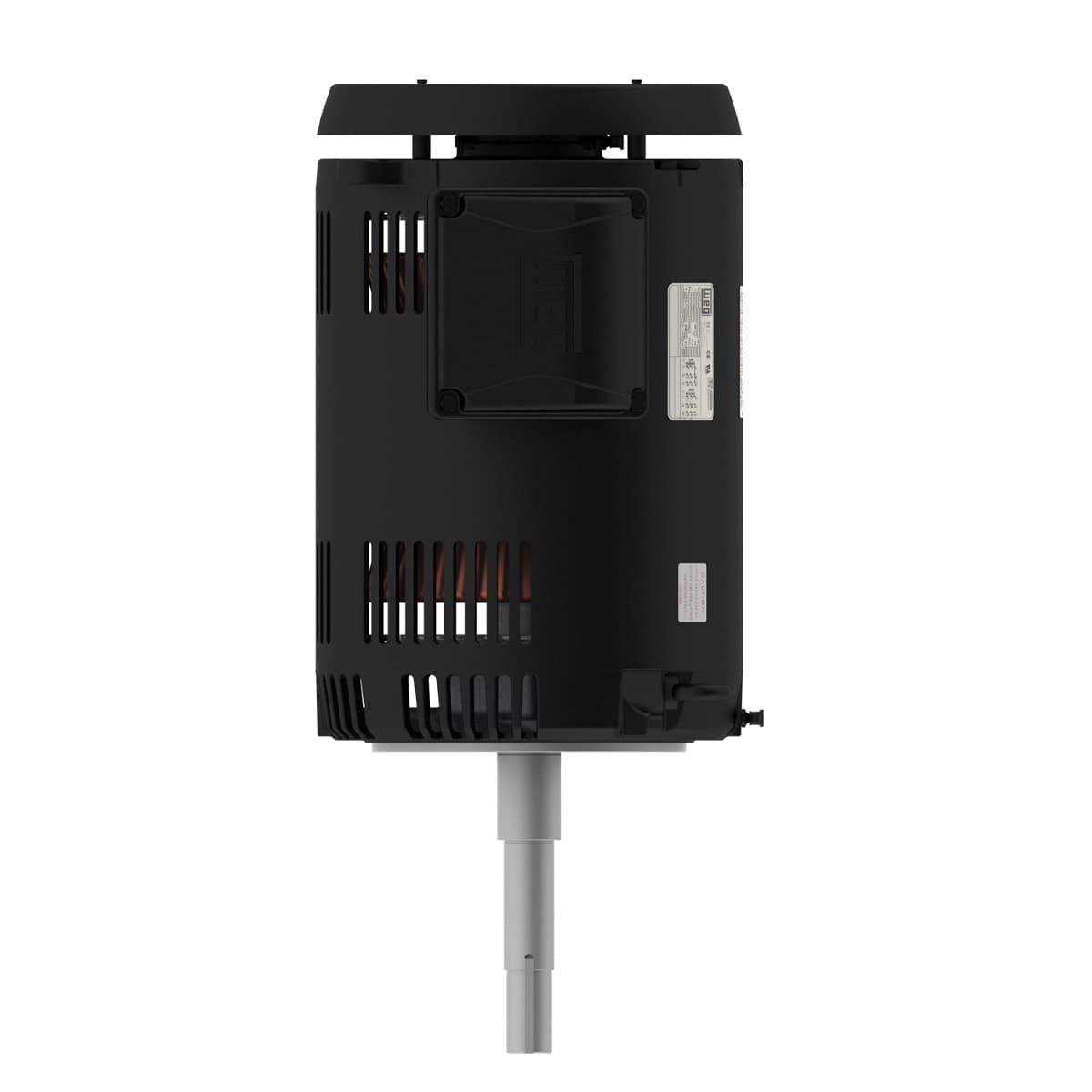

Rolled Steel JP Pump NEMA Premium Efficiency 25 HP 2P 254/6JP 3Ph 575 V 60 Hz IC01 - ODP - Footless
Check out the 02536OT3H256JPV-S WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating25 HP
- Rated Speed3530 rpm
- Number of Poles2 Pole
- Voltage575 V
- Flange TypeC
- Frame 254/6JP
- Design B
- Temperature rise 80 K
- Rotation¹ Both (CW and CCW)
- L. R. Amperes 147 A
- Moment of inertia (J) 0.9155 sq.ft.lb
- Ambient temperature -20°C to +40°C
- Terminal box¹ Left position
- Slip 1.94 %
- No load current 9.12 A
- Duty Cycle Cont.(S1)
- Synchronous speed 3600 rpm
- Frequency 60 Hz
- Locked rotor time 16s (cold) 9s (hot)
- Voltage 575 V
- Number of Poles 2
- Rated torque 37.2 ft.lb
- Altitude 1000 m.a.s.l.
- Output rating 25 HP
- Rated voltage 575 V
- LRC 6.3x(Code G)
- Enclosure IC01 - ODP
- Standard NEMA MG-1
- Rated current 23.3 A
- Insulation Class F
- Noise level² 70.0 dB(A)
- Output 25 HP (18.5 kW)
- Service factor 1.15
- Approx. weight³ 192 lb
- Locked rotor torque 180 %
- Starting Method Direct On Line
- Number of poles 2
- Rated speed 3530 rpm
- Breakdown torque 290 %
- Mounting W-6
- Flange C
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 02536OT3H256JPV-S Specs
1-year warranty
