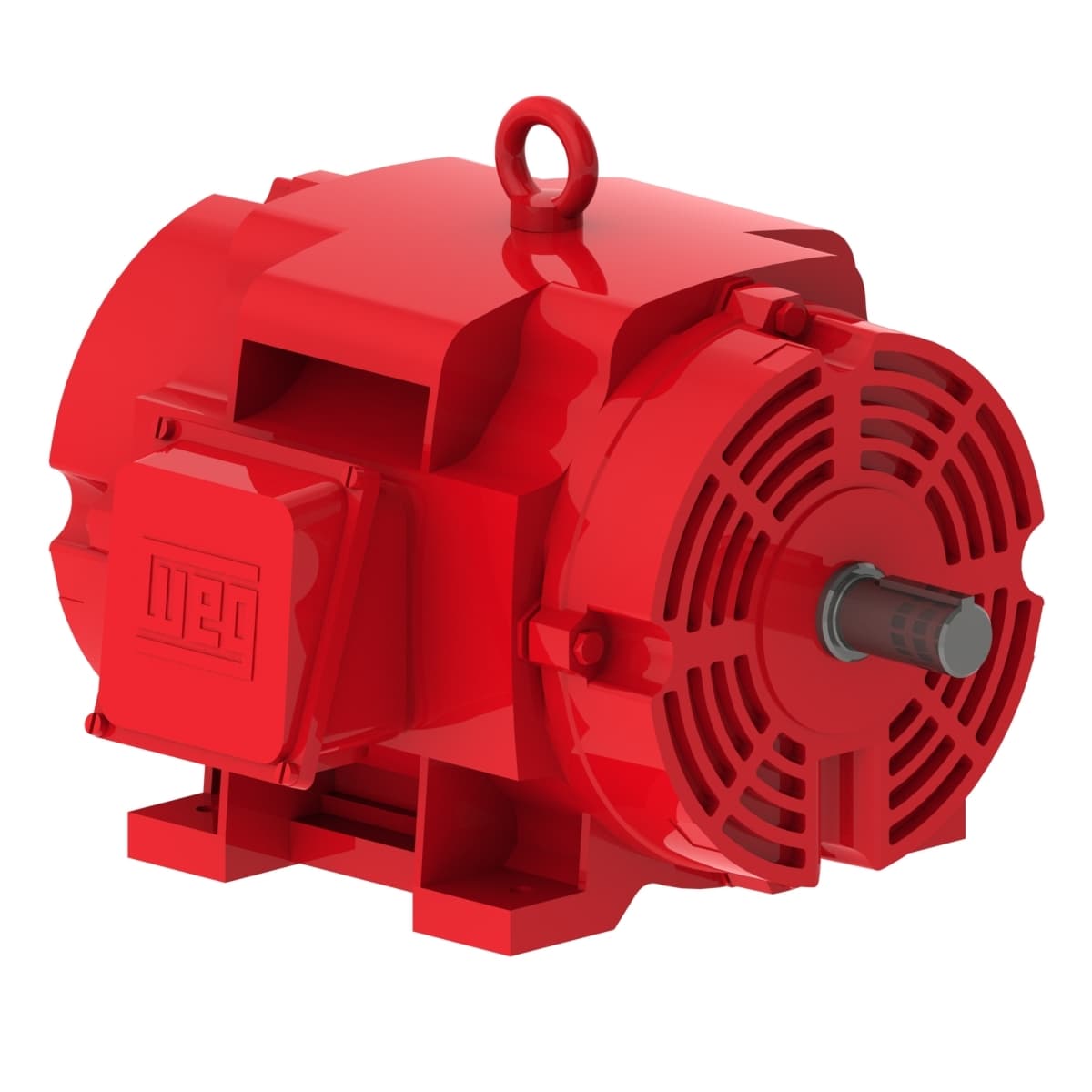

02536OP3HFP256T WEG AC Motors
Part#:02536OP3HFP256T
Manufacturer:WEG
Alt. Part#:7890705907543
Product Lifecycle:Active
Get a quick Quote!
ODP High Efficiency 25 HP 2P 256T 3Ph 575 V 60 Hz IC01 - ODP - Foot-mounted
Check out the 02536OP3HFP256T WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating25 HP
- Rated Speed3530 rpm
- Number of Poles2 Pole
- Voltage575 V
- Flange TypeWithout
- Number of Poles 2
- Insulation Class F
- Voltage 575 V
- Output 25 HP (18.5 kW)
- Rated torque 37.2 ft.lb
- Duty Cycle Cont.(S1)
- Rotation¹ Both (CW and CCW)
- Frame 256T
- Temperature rise 105 K
- Synchronous speed 3600 rpm
- Rated current 23.4 A
- Locked rotor torque 200 %
- Degree of Protection IP23
- Noise level² 67.0 dB(A)
- Rated speed 3530 rpm
- No load current 7.52 A
- Mounting F-1
- Standard NEMA MG-1
- LRC 6.0x(Code G)
- Breakdown torque 250 %
- Service factor 1.15
- Frequency 60 Hz
- Locked rotor time 18s (cold) 10s (hot)
- Ambient temperature -20°C to +40°C
- Flange Without
- Terminal box¹ Left position
- L. R. Amperes 141 A
- Starting Method Direct On Line
- Number of poles 2
- Rated voltage 575 V
- Design B
- Altitude 1000 m.a.s.l.
- Approx. weight³ 233 lb
- Slip 1.94 %
- Moment of inertia (J) 0.9774 sq.ft.lb
- Enclosure IC01 - ODP
- Output rating 25 HP
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 02536OP3HFP256T Specs
1-year warranty
