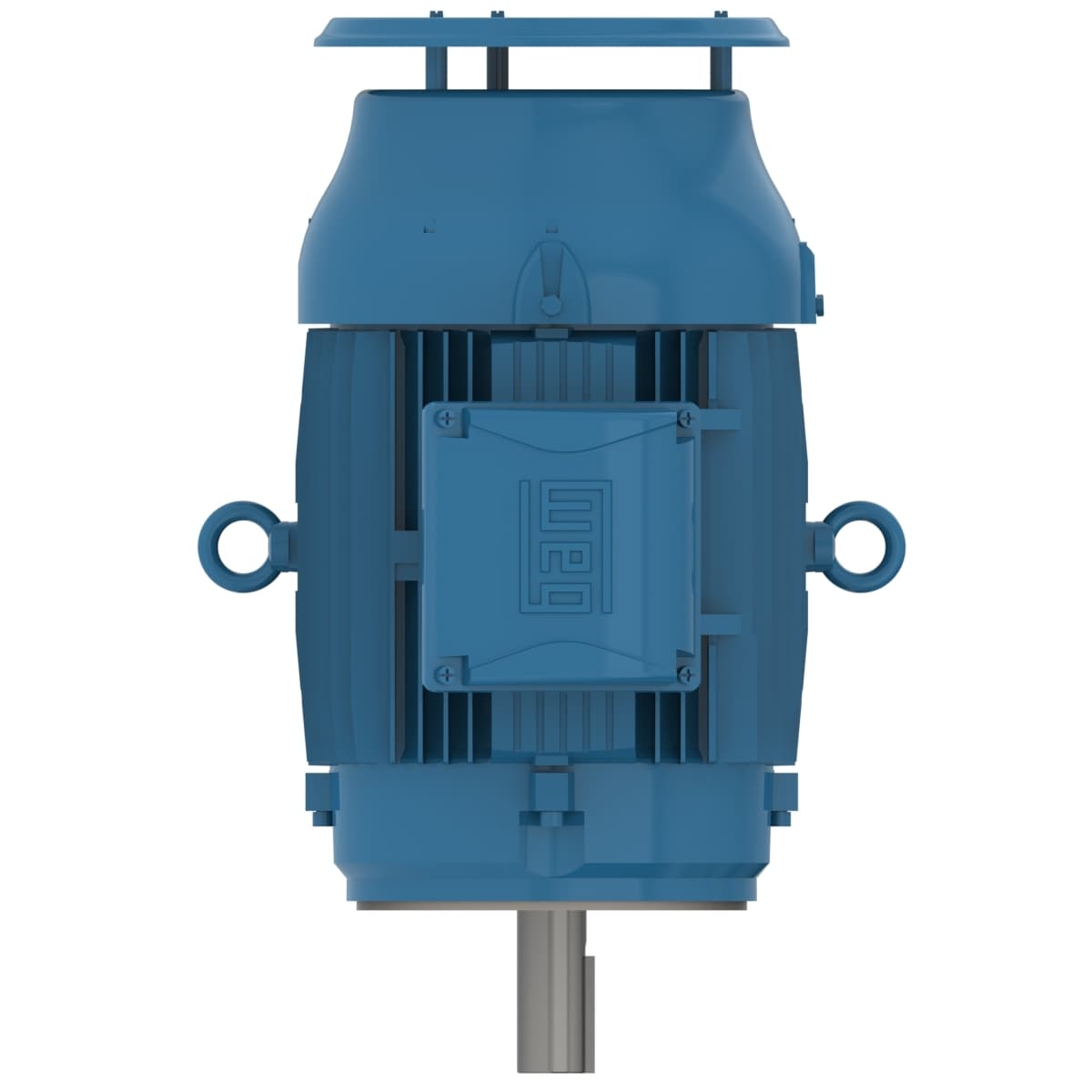

02536ET3ER284TSC-W22 WEG AC Motors
Part#:02536ET3ER284TSC-W22
Manufacturer:WEG
Alt. Part#:7909322212845
Product Lifecycle:Active
Get a quick Quote!
W22 NEMA Premium Efficiency 25 HP 2P 284TSC 3Ph 230/460//380 V 60//50 Hz IC411 - TEFC - Footless
Check out the 02536ET3ER284TSC-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating25 HP
- Rated Speed3545 rpm
- Number of Poles2 Pole
- Voltage230/460 V
- Flange TypeC
- Frequency 60 Hz
- Breakdown torque 250 %
- Temperature rise 80 K
- Number of poles 2
- Output 25 HP (18.5 kW)
- No load current 16.3/8.15 A
- Degree of Protection IP55
- Voltage 230/460//380 V
- Slip 1.53 %
- Design B
- Enclosure IC411 - TEFC
- Rated speed 3545 rpm
- Insulation Class F
- Ambient temperature -20°C to +40°C
- Flange C
- Locked rotor torque 200 %
- Starting Method Direct On Line
- Terminal box¹ Left position
- Rated torque 37.0 ft.lb
- Mounting W-6
- Output rating 25 HP
- Number of Poles 2
- L. R. Amperes 363/181 A
- Service factor 1.25
- LRC 6.3x(Code G)
- Frame 284TSC
- Rated voltage 230/460 V
- Moment of inertia (J) 2.69 sq.ft.lb
- Altitude 1000 m.a.s.l.
- Rated current 57.5/28.8 A
- Locked rotor time 30s (cold) 17s (hot)
- Rotation¹ Both (CW and CCW)
- Approx. weight³ 367 lb
- Duty Cycle Cont.(S1)
- Synchronous speed 3600 rpm
- Standard NEMA MG-1
- Noise level² 72.0 dB(A)
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 02536ET3ER284TSC-W22 Specs
1-year warranty
