02012XT3E286T WEG AC Motors
Part#:02012XT3E286T
Manufacturer:WEG
Alt. Part#:7909492060970
Product Lifecycle:Active
Get a quick Quote!

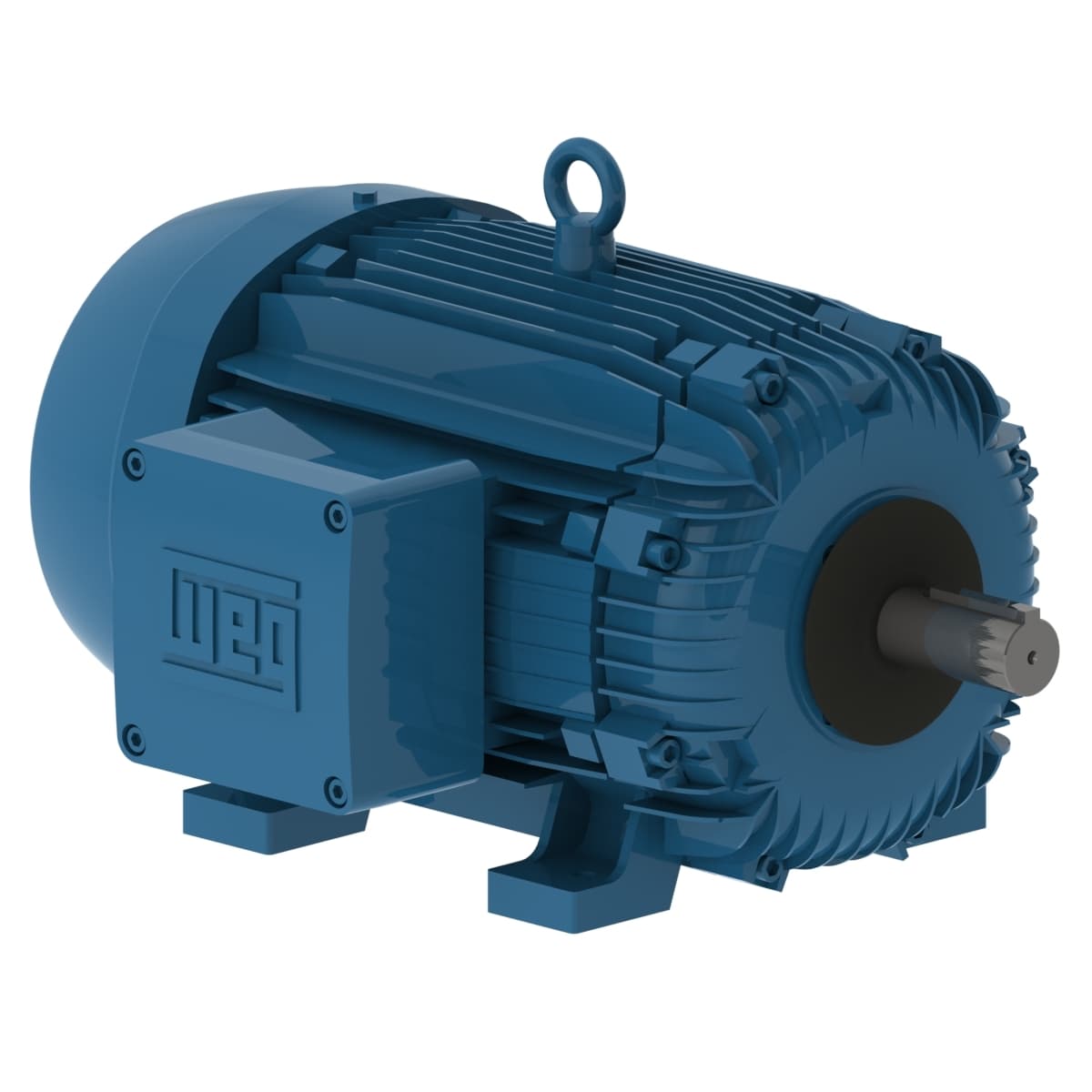

W21 Explosion-proof Motor NEMA Premium Efficiency 20 HP 6P 286T 3Ph 230/460//380 V 60//50 Hz IC411 - TEFC - Foot-mounted
Check out the 02012XT3E286T WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating20 HP
- Rated Speed1175 rpm
- Number of Poles6 Pole
- Voltage230/460 V
- Flange TypeWithout
- Frequency 60 Hz
- Breakdown torque 260 %
- Ambient temperature -20°C to +40°C
- Number of poles 6
- Frame 286T
- Temperature rise 80 K
- Standard NEMA MG-1
- Slip 2.08 %
- Locked rotor torque 250 %
- Duty Cycle Cont.(S1)
- Approx. weight³ 499 lb
- Rated speed 1175 rpm
- Locked rotor time 39s (cold) 22s (hot)
- Starting Method Direct On Line
- Voltage 230/460//380 V
- Rated current 48.4/24.2 A
- Moment of inertia (J) 8.02 sq.ft.lb
- Service factor 1.15
- Flange Without
- Output 20 HP (15 kW)
- No load current 18.0/9.00 A
- Degree of Protection IP55
- Noise level² 59.0 dB(A)
- Rated voltage 230/460 V
- Enclosure IC411 - TEFC
- L. R. Amperes 348/174 A
- Design B
- Rotation¹ Both (CW and CCW)
- Terminal box¹ Left position
- Number of Poles 6
- Rated torque 89.4 ft.lb
- Altitude 1000 m.a.s.l.
- Output rating 20 HP
- LRC 7.2x(Code H)
- Insulation Class F
- Mounting F-1
- Synchronous speed 1200 rpm
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
