02018OT3E256JP WEG AC Motors
Part#:02018OT3E256JP
Manufacturer:WEG
Alt. Part#:7890355493199
Product Lifecycle:Active
Get a quick Quote!

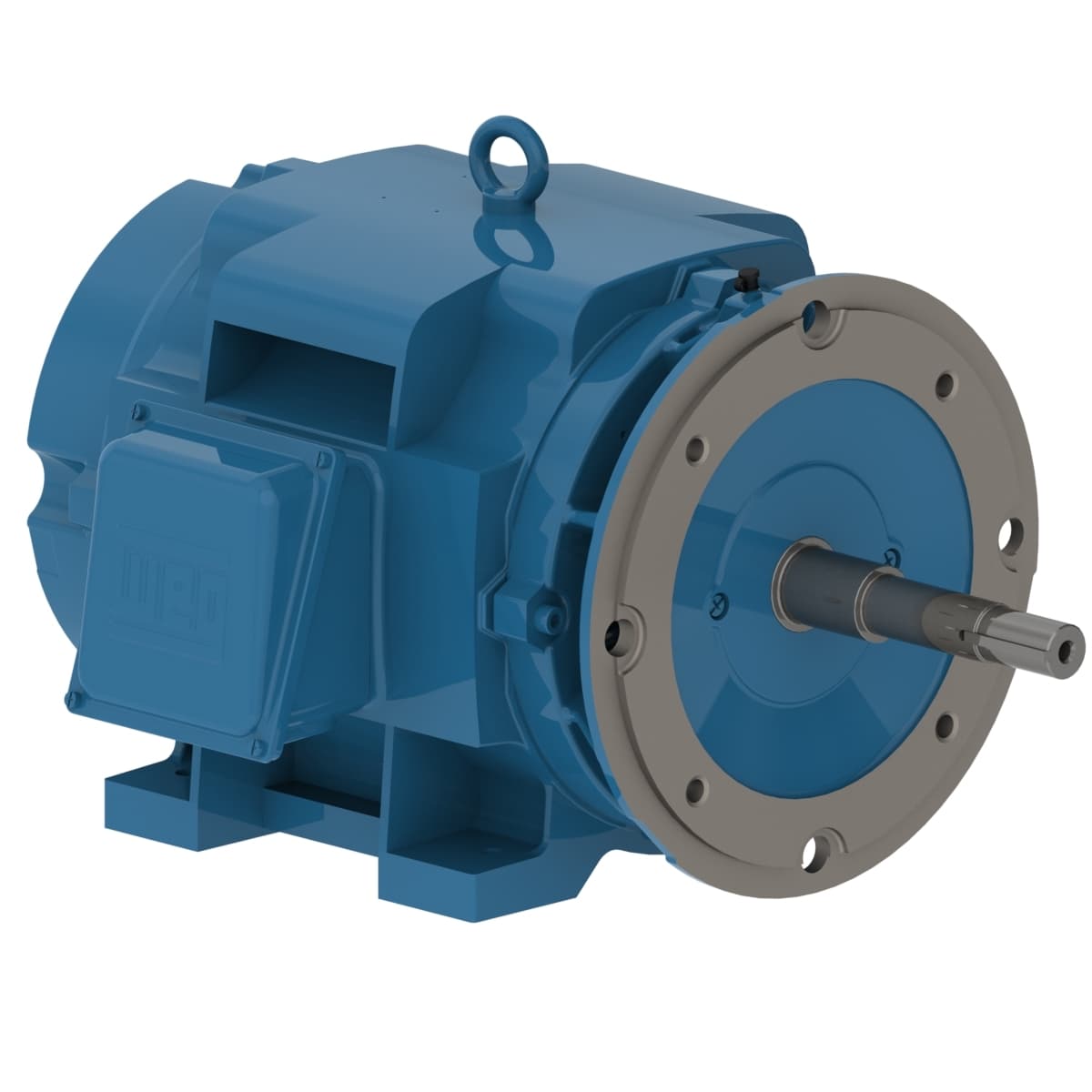

Close Coupled Pump NEMA Premium Efficiency 20 HP 4P 256JP 3Ph 230/460 V 60 Hz IC01 - ODP - Foot-mounted
Check out the 02018OT3E256JP WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating20 HP
- Rated Speed1770 rpm
- Number of Poles4 Pole
- Voltage230/460 V
- Flange TypeC
- Number of Poles 4
- Locked rotor torque 260 %
- Altitude 1000 m.a.s.l.
- Output rating 20 HP
- Rated voltage 230/460 V
- No load current 24.0/12.0 A
- Duty Cycle Cont.(S1)
- Number of poles 4
- Output 20 HP (15 kW)
- Locked rotor time 21s (cold) 12s (hot)
- Degree of Protection IP23
- Mounting F-1
- Terminal box¹ Left position
- L. R. Amperes 311/156 A
- Moment of inertia (J) 2.62 sq.ft.lb
- Enclosure IC01 - ODP
- Slip 1.67 %
- Rated torque 59.3 ft.lb
- Ambient temperature -20°C to +40°C
- Voltage 230/460 V
- Frame 256JP
- Service factor 1.15
- Approx. weight³ 284 lb
- Frequency 60 Hz
- Temperature rise 80 K
- Synchronous speed 1800 rpm
- LRC 6.3x(Code G)
- Insulation Class F
- Standard NEMA MG-1
- Rated speed 1770 rpm
- Design B
- Rotation¹ Both (CW and CCW)
- Flange C
- Rated current 49.4/24.7 A
- Breakdown torque 280 %
- Starting Method Direct On Line
- Noise level² 60.0 dB(A)
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 02018OT3E256JP Specs
