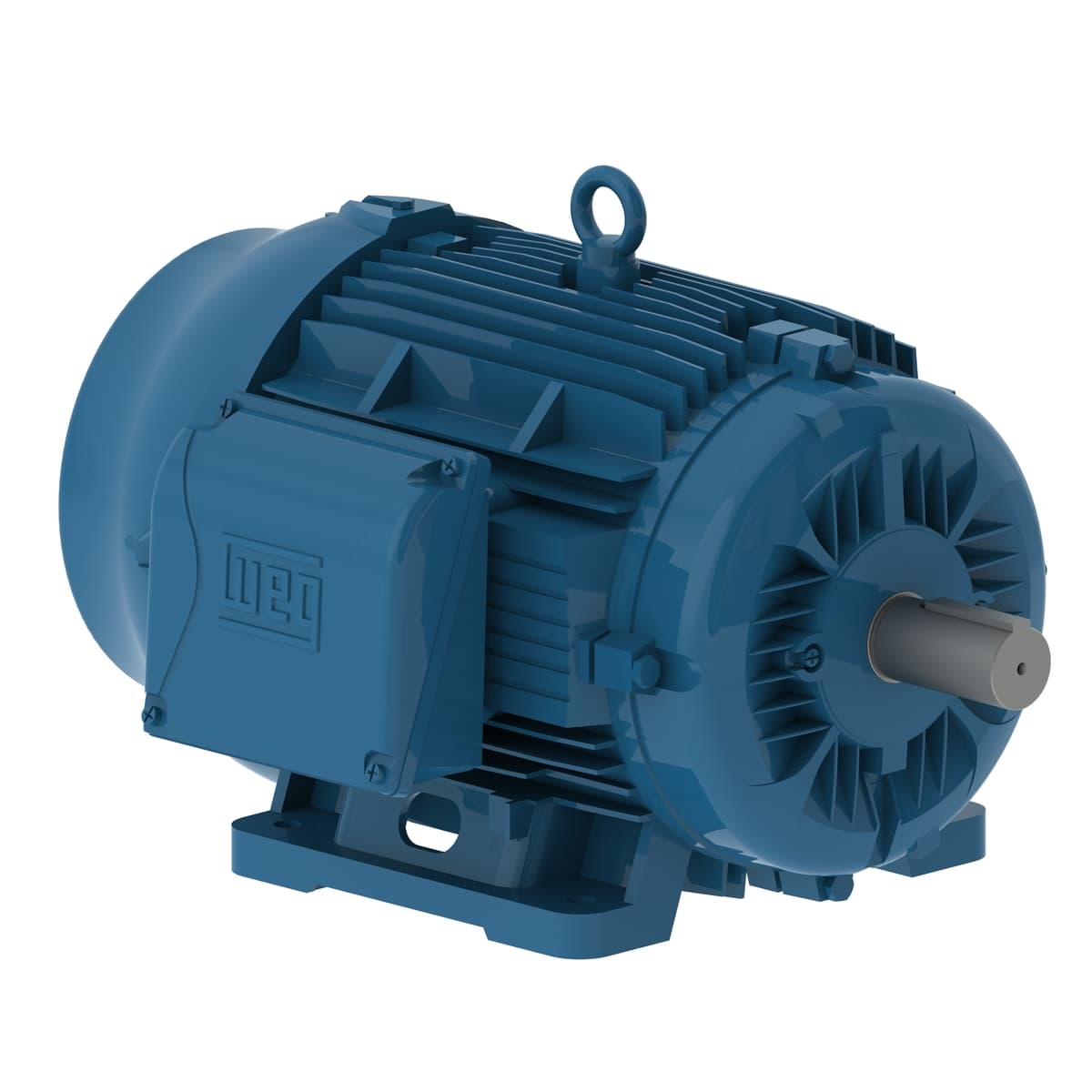

02018ET3H256T-W22G WEG AC Motors
Part#:02018ET3H256T-W22G
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!
W22 NEMA Premium Efficiency 20 HP 4P 254/6T 3Ph 575 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 02018ET3H256T-W22G WEG price in the box on the right side or send a quick quote.
Product Details
- Rated current 19.3 A
- Design B
- Enclosure IC411 - TEFC
- Output rating 20 HP
- L. R. Amperes 133 A
- Rated torque 59.3 ft.lb
- Starting Method Direct On Line
- Terminal box¹ Left position
- Frequency 60 Hz
- Moment of inertia (J) 3.10 sq.ft.lb
- Degree of Protection IP55
- Voltage 575 V
- Rated speed 1770 rpm
- Slip 1.67 %
- Locked rotor torque 240 %
- Duty Cycle Cont.(S1)
- Ambient temperature -20°C to +40°C
- Approx. weight³ 331 lb
- No load current 7.68 A
- Service factor 1.25
- Flange Without
- Noise level² 64.0 dB(A)
- Number of poles 4
- Output 20 HP (15 kW)
- LRC 6.9x(Code H)
- Insulation Class F
- Altitude 1000 m.a.s.l.
- Frame 254/6T
- Rated voltage 575 V
- Number of Poles 4
- Locked rotor time 54s (cold) 30s (hot)
- Breakdown torque 260 %
- Temperature rise 80 K
- Rotation¹ Both (CW and CCW)
- Synchronous speed 1800 rpm
- Standard NEMA MG-1
- Mounting F-1
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
