02018OT3E256JMV-S WEG AC Motors
Part#:02018OT3E256JMV-S
Manufacturer:WEG
Alt. Part#:7909323135716
Product Lifecycle:Active
Get a quick Quote!

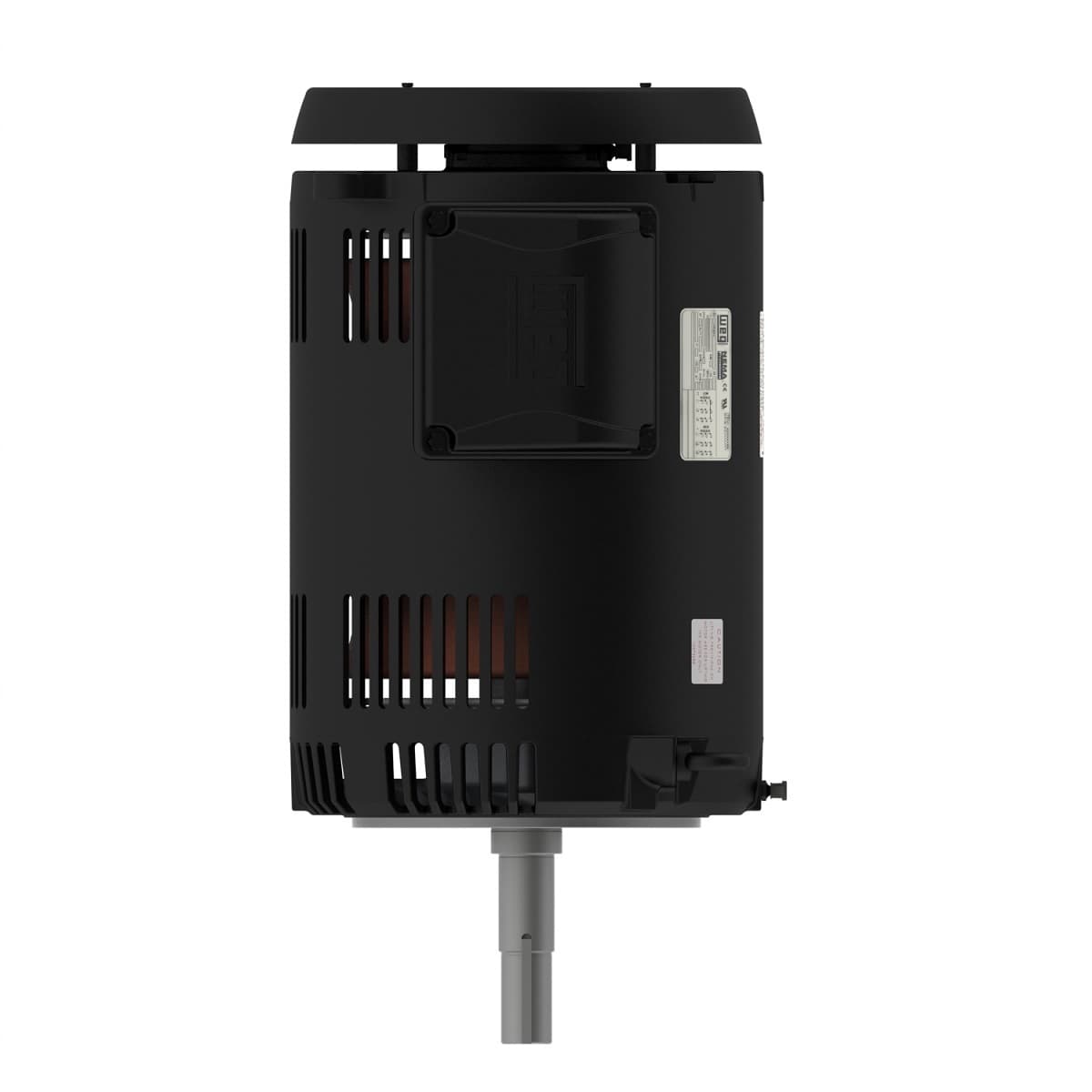

Rolled Steel JM Pump NEMA Premium Efficiency 20 HP 4P 254/6JM 3Ph 230/460//190-220/380-415 V 60 Hz IC01 - ODP - Footless
Check out the 02018OT3E256JMV-S WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating20 HP
- Rated Speed1770 rpm
- Number of Poles4 Pole
- Voltage230/460 V
- Flange TypeC
- Output 20 HP (15 kW)
- Locked rotor time 27s (cold) 15s (hot)
- Altitude 1000 m.a.s.l.
- Output rating 20 HP
- Frame 254/6JM
- No load current 22.9/11.4 A
- Ambient temperature -20°C to +40°C
- Duty Cycle Cont.(S1)
- Rated speed 1770 rpm
- Service factor 1.15
- Temperature rise 80 K
- Rotation¹ Both (CW and CCW)
- Terminal box¹ Left position
- Rated voltage 230/460 V
- Moment of inertia (J) 2.23 sq.ft.lb
- Noise level² 64.0 dB(A)
- Frequency 60 Hz
- Design B
- Starting Method Direct On Line
- Voltage 230/460//190-220/380-415 V
- Slip 1.67 %
- Locked rotor torque 240 %
- Number of poles 4
- Rated current 50.0/25.0 A
- Breakdown torque 290 %
- Standard NEMA MG-1
- LRC 6.3x(Code G)
- Enclosure IC01 - ODP
- Synchronous speed 1800 rpm
- Number of Poles 4
- Insulation Class F
- Mounting W-6
- Flange C
- L. R. Amperes 315/158 A
- Rated torque 59.3 ft.lb
- Approx. weight³ 225 lb
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
