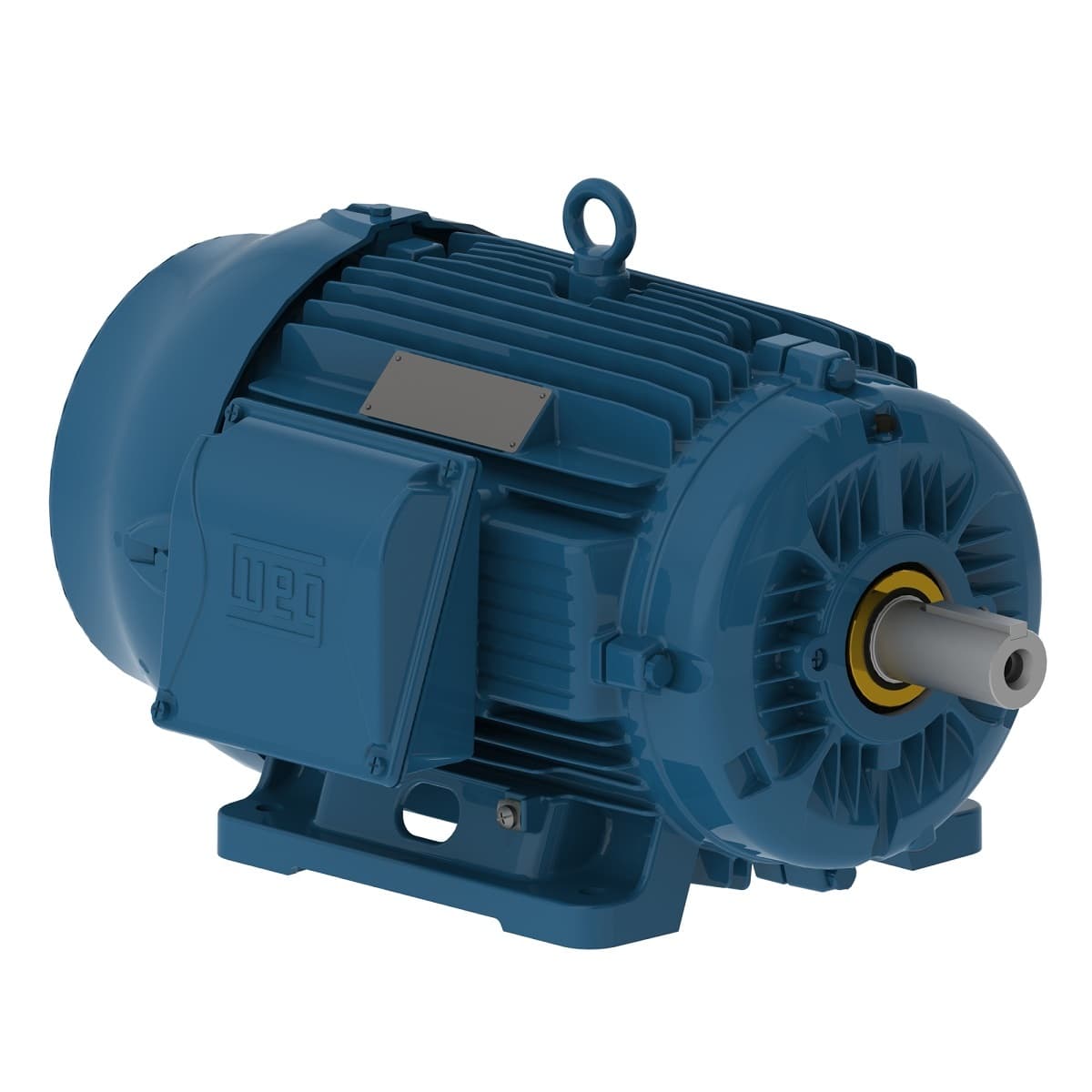

02012ST3QIE286T-W22 WEG AC Motors
Part#:02012ST3QIE286T-W22
Manufacturer:WEG
Alt. Part#:7891327135529
Product Lifecycle:Active
Get a quick Quote!
W22 IEEE 841 NEMA Premium Efficiency 20 HP 6P 284/6T 3Ph 460 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 02012ST3QIE286T-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating20 HP
- Rated Speed1175 rpm
- Number of Poles6 Pole
- Voltage460 V
- Flange TypeWithout
- L. R. Amperes 143 A
- Locked rotor time 28s (cold) 16s (hot)
- Enclosure IC411 - TEFC
- Number of poles 6
- Rated torque 89.4 ft.lb
- Temperature rise 80 K
- Rotation¹ Both (CW and CCW)
- Frequency 60 Hz
- Breakdown torque 250 %
- Degree of Protection IP56
- Output 20 HP (15 kW)
- No load current 8.30 A
- Starting Method Direct On Line
- Standard NEMA MG-1
- Output rating 20 HP
- Number of Poles 6
- LRC 5.9x(Code G)
- Ambient temperature -20°C to +40°C
- Rated voltage 460 V
- Locked rotor torque 220 %
- Mounting F-1
- Voltage 460 V
- Slip 2.08 %
- Design B
- Approx. weight³ 447 lb
- Flange Without
- Rated speed 1175 rpm
- Moment of inertia (J) 9.16 sq.ft.lb
- Duty Cycle Cont.(S1)
- Terminal box¹ Left position
- Frame 284/6T
- Insulation Class F
- Altitude 1000 m.a.s.l.
- Rated current 24.2 A
- Service factor 1.25
- Noise level² 59.0 dB(A)
- Synchronous speed 1200 rpm
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 02012ST3QIE286T-W22 Specs
1-year warranty
