02012ET3PCT286T-W22 WEG AC Motors
Part#:02012ET3PCT286T-W22
Manufacturer:WEG
Alt. Part#:7909018509112
Product Lifecycle:Active
Get a quick Quote!

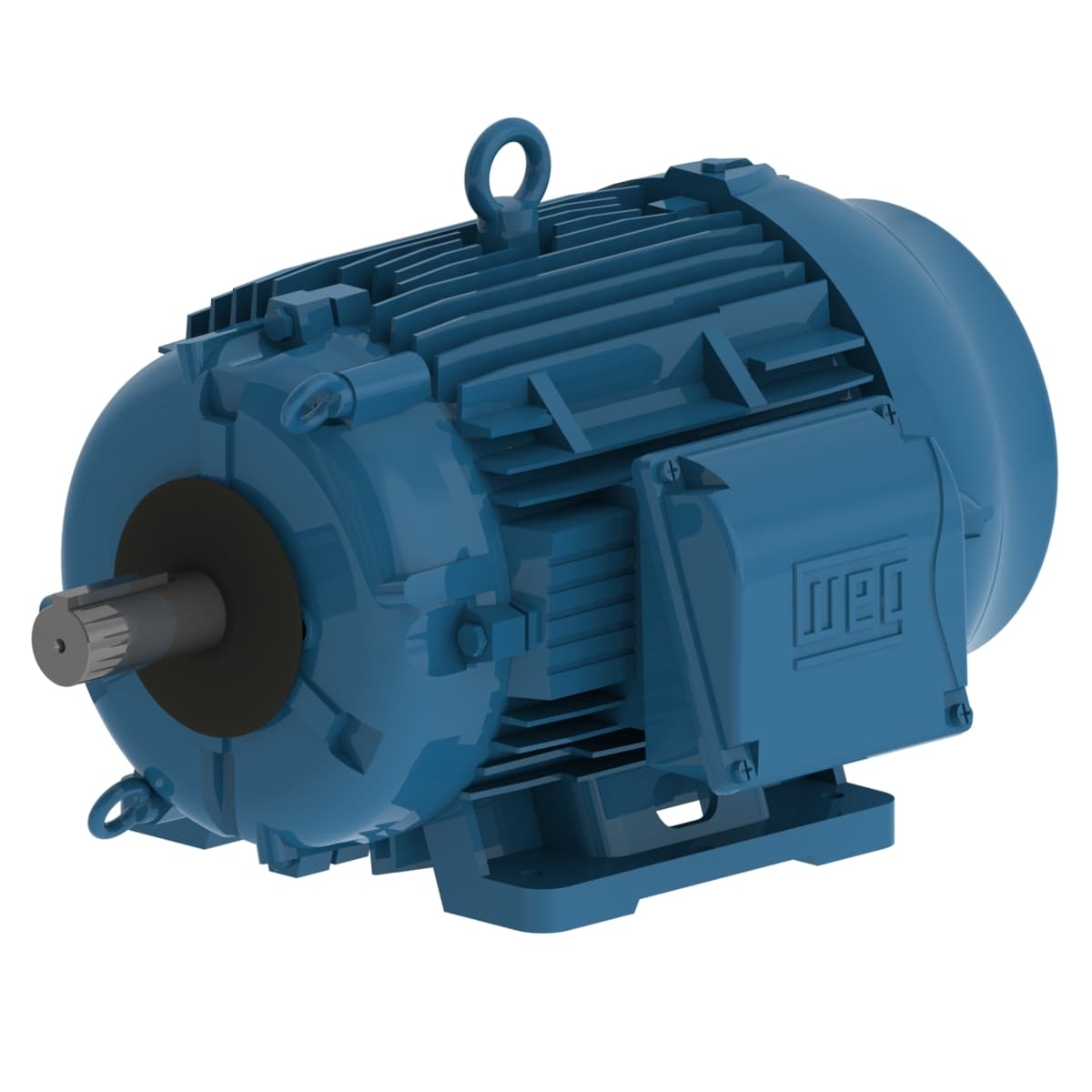

W22 Cooling Tower NEMA Premium Efficiency 20 HP 6P 284/6T 3Ph 200 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 02012ET3PCT286T-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating20 HP
- Rated Speed1175 rpm
- Number of Poles6 Pole
- Voltage200 V
- Flange TypeWithout
- No load current 21.9 A
- Design B
- Ambient temperature -20°C to +40°C
- Rated voltage 200 V
- Breakdown torque 260 %
- Duty Cycle Cont.(S1)
- Rated speed 1175 rpm
- Locked rotor time 28s (cold) 16s (hot)
- Synchronous speed 1200 rpm
- Output 20 HP (15 kW)
- Locked rotor torque 229 %
- Altitude 1000 m.a.s.l.
- Approx. weight³ 0.0 lb
- Frame 284/6T
- Moment of inertia (J) 9.16 sq.ft.lb
- Rotation¹ Both (CW and CCW)
- Insulation Class F
- Degree of Protection IP55
- Voltage 200 V
- L. R. Amperes 345 A
- Frequency 60 Hz
- Service factor 1.25
- Enclosure IC411 - TEFC
- Standard NEMA MG-1
- Number of Poles 6
- Rated torque 89.4 ft.lb
- Mounting F-2
- Slip 2.08 %
- Temperature rise 80 K
- LRC 6.2x(Code G)
- Starting Method Direct On Line
- Number of poles 6
- Rated current 55.7 A
- Flange Without
- Noise level² 59.0 dB(A)
- Terminal box¹ Right position
- Output rating 20 HP
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 02012ET3PCT286T-W22 Specs
1-year warranty
