00709XT3E256T WEG AC Motors
Part#:00709XT3E256T
Manufacturer:WEG
Alt. Part#:7909492060376
Product Lifecycle:Active
Get a quick Quote!

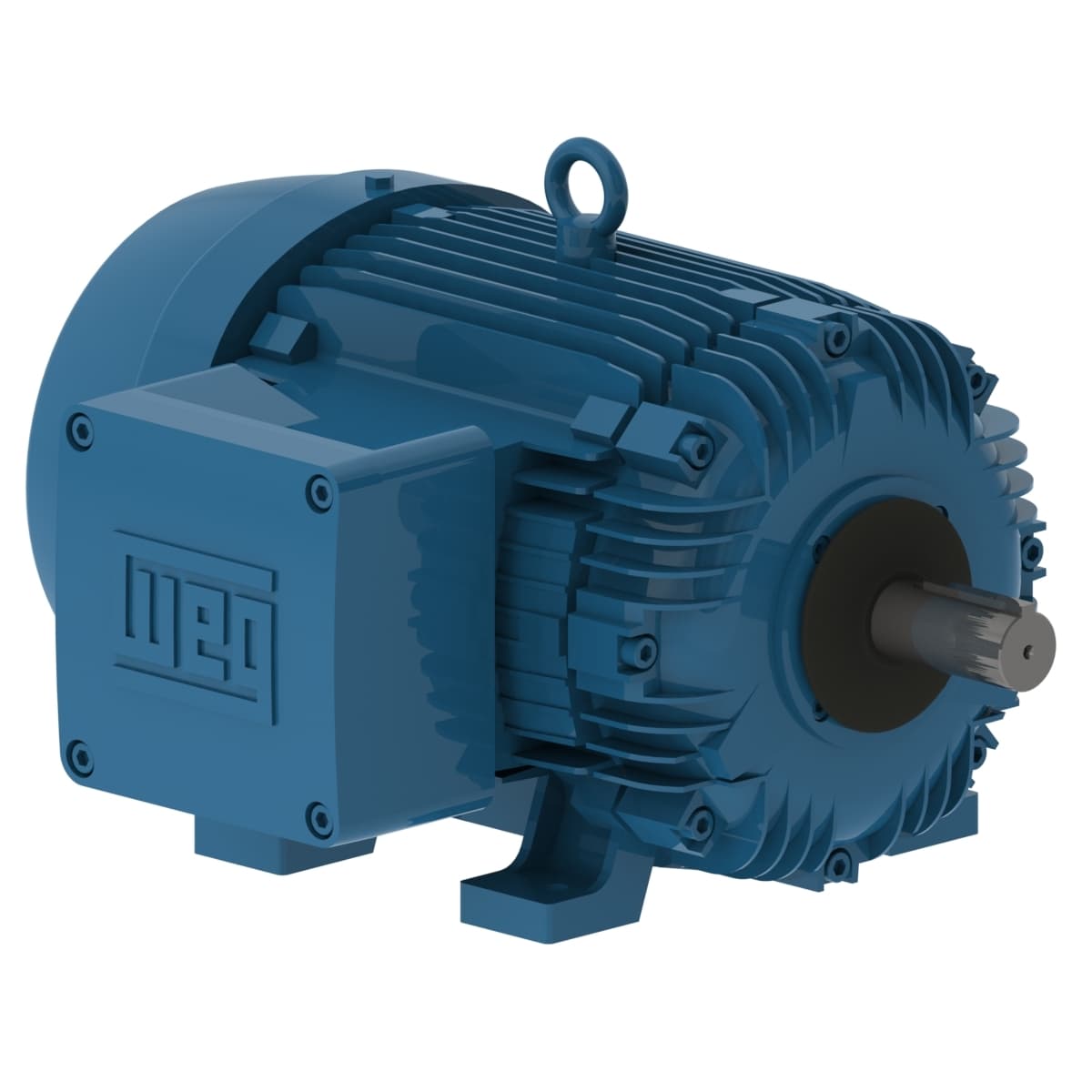

W21 Explosion-proof Motor NEMA Premium Efficiency 7.5 HP 8P 256T 3Ph 230/460//380 V 60//50 Hz IC411 - TEFC - Foot-mounted
Check out the 00709XT3E256T WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating7.5 HP
- Rated Speed880 rpm
- Number of Poles8 Pole
- Voltage230/460 V
- Flange TypeWithout
- LRC 5.3x(Code H)
- Duty Cycle Cont.(S1)
- Standard NEMA MG-1
- L. R. Amperes 123/61.5 A
- Locked rotor time 41s (cold) 23s (hot)
- Ambient temperature -20°C to +40°C
- Flange Without
- Rated current 23.2/11.6 A
- Insulation Class F
- Rotation¹ Both (CW and CCW)
- Rated voltage 230/460 V
- Rated torque 44.8 ft.lb
- Temperature rise 80 K
- Approx. weight³ 369 lb
- Frequency 60 Hz
- Breakdown torque 280 %
- Starting Method Direct On Line
- Number of poles 8
- Slip 2.22 %
- Design B
- Degree of Protection IP55
- Synchronous speed 900 rpm
- Frame 256T
- No load current 14.4/7.20 A
- Enclosure IC411 - TEFC
- Terminal box¹ Left position
- Number of Poles 8
- Moment of inertia (J) 4.15 sq.ft.lb
- Altitude 1000 m.a.s.l.
- Voltage 230/460//380 V
- Output 7.5 HP (5.5 kW)
- Service factor 1.15
- Noise level² 55.0 dB(A)
- Rated speed 880 rpm
- Locked rotor torque 210 %
- Mounting F-1
- Output rating 7.5 HP
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 00709XT3E256T Specs
1-year warranty
