00709ET3Y160L-W22 WEG AC Motors
Part#:00709ET3Y160L-W22
Manufacturer:WEG
Alt. Part#:7891327642539
Product Lifecycle:Active
Get a quick Quote!

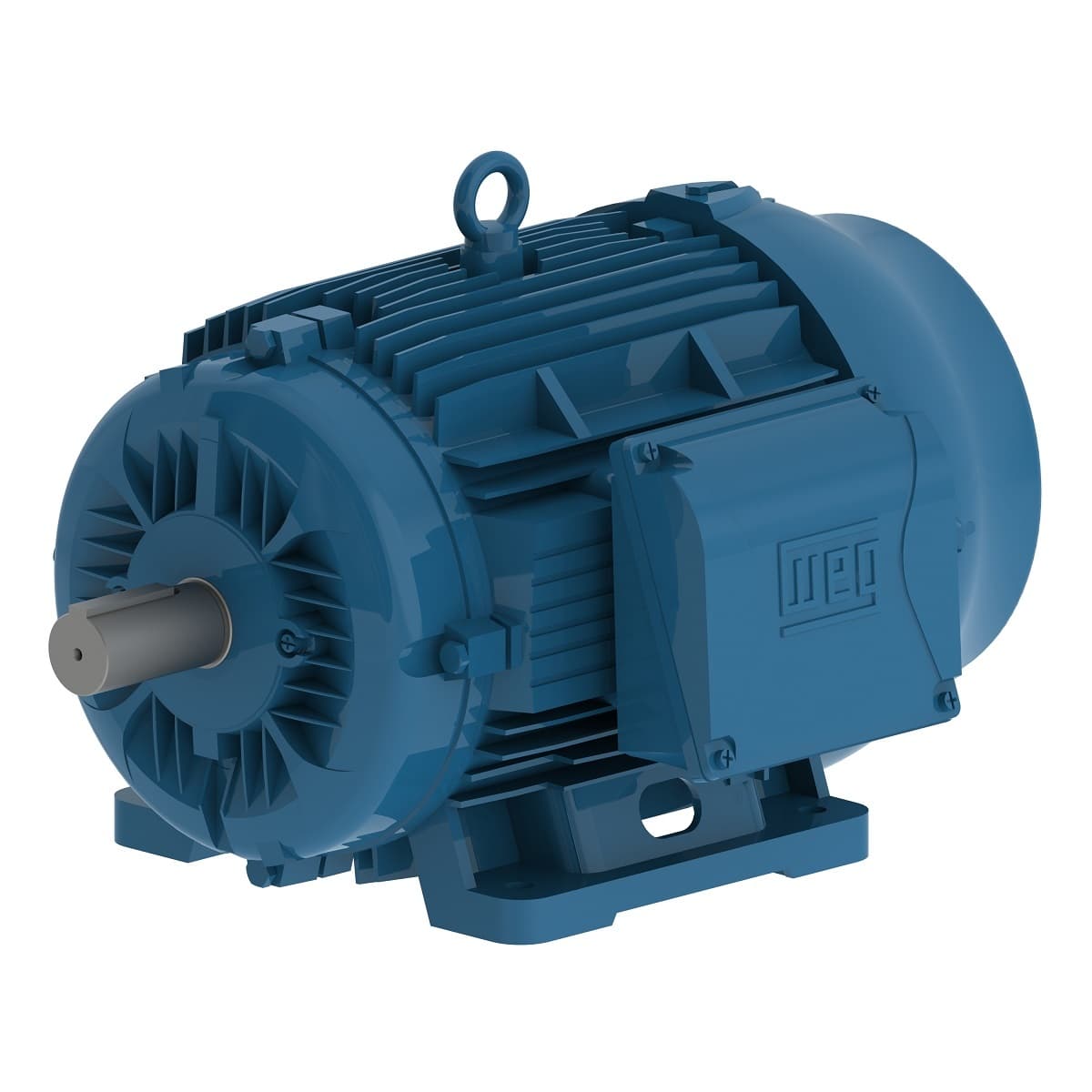

W22 Tru-Metric IE3 10 HP 8P 160L 3Ph 460//380-415 V 60 Hz IC411 - TEFC - B3L(E)
Check out the 00709ET3Y160L-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating10 HP
- Rated Speed720 rpm
- Number of Poles8 Pole
- Voltage380 V
- Flange TypeWithout
- Rated speed 720 rpm
- Rated torque 72.9 ft.lb
- Temperature rise 80 K
- Synchronous speed 900 rpm
- LRC 4.9
- Insulation Class F
- Voltage 460//380-415 V
- Number of Poles 8
- Moment of inertia (J) 3.75 sq.ft.lb
- Noise level² 51.0 dB(A)
- Frequency 50 Hz
- Design N
- Standard NEMA MG-1
- Output 10 HP (7.5 kW)
- Locked rotor time 39s (cold) 22s (hot)
- Degree of Protection IP55
- Number of poles 8
- Rated voltage 380 V
- Enclosure IC411 - TEFC
- Output rating 10 HP
- L. R. Amperes 85.3 A
- No load current 9.50 A
- Mounting B3L(E)
- Approx. weight³ 323 lb
- Rated current 17.4 A
- Locked rotor torque 190 %
- Duty Cycle S1
- Flange Without
- Slip 4.00 %
- Breakdown torque 210 %
- Rotation¹ Both (CW and CCW)
- Terminal box¹ Right position
- Frame 160L
- Altitude 1000 m.a.s.l.
- Starting Method Direct On Line
- Ambient temperature -20°C to +40°C
