00709ET3EBM256T-W22 WEG AC Motors
Part#:00709ET3EBM256T-W22
Manufacturer:WEG
Alt. Part#:7909322283463
Product Lifecycle:Active
Get a quick Quote!

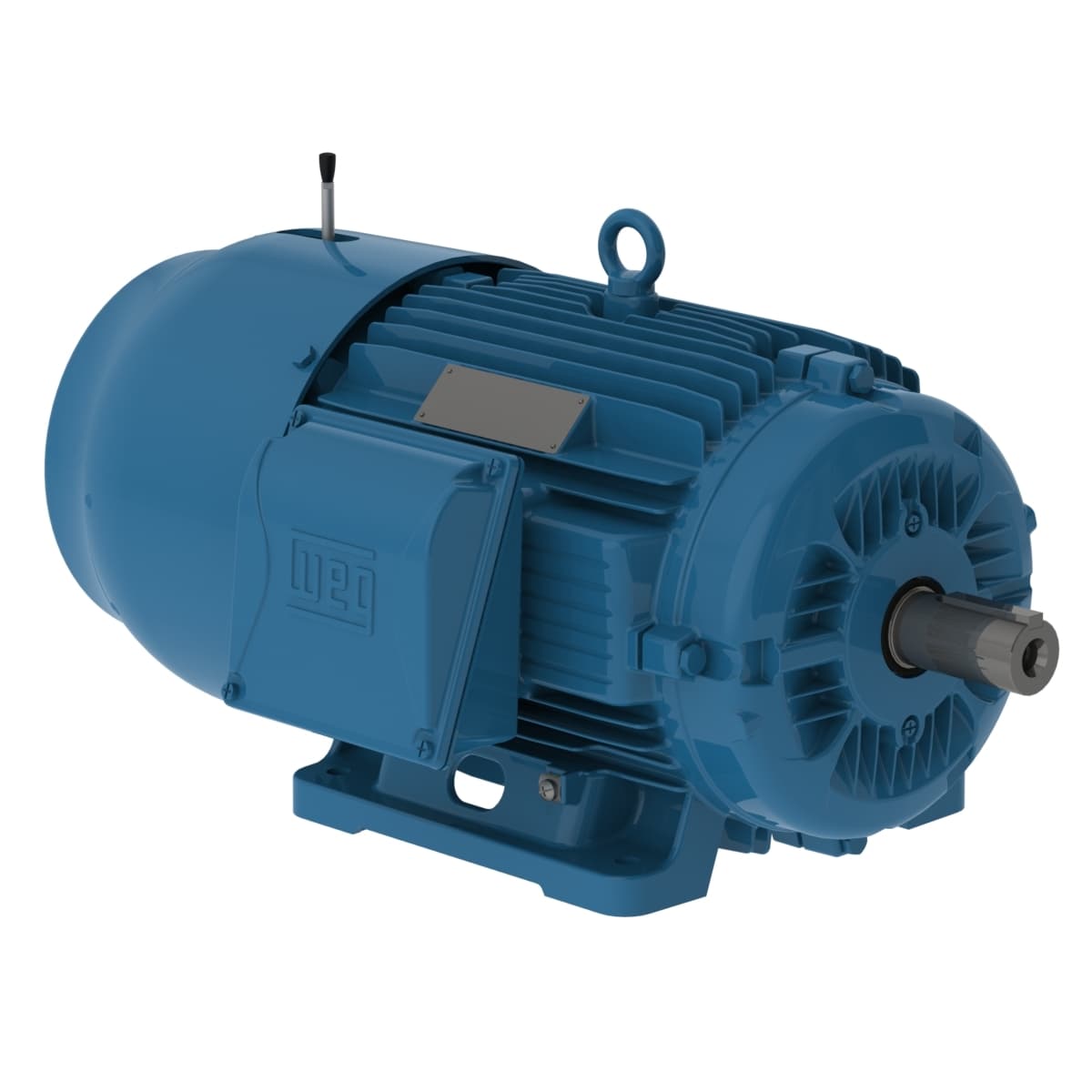

W22 Brake Motor NEMA Premium Efficiency 7.5 HP 8P 254/6T 3Ph 230/460 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 00709ET3EBM256T-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating7.5 HP
- Rated Speed880 rpm
- Number of Poles8 Pole
- Voltage230/460 V
- Flange TypeWithout
- Frame 254/6T
- Locked rotor torque 200 %
- Mounting F-1
- Terminal box¹ Left position
- Frequency 60 Hz
- Rated torque 44.8 ft.lb
- Ambient temperature -20°C to +40°C
- Voltage 230/460 V
- Rated voltage 230/460 V
- Design B
- Approx. weight³ 348 lb
- Slip 2.22 %
- Moment of inertia (J) 4.43 sq.ft.lb
- Degree of Protection IP55
- Synchronous speed 900 rpm
- Rated current 22.2/11.1 A
- Insulation Class F
- Noise level² 54.0 dB(A)
- LRC 5.3x(Code G)
- Starting Method Direct On Line
- Standard NEMA MG-1
- Number of Poles 8
- Locked rotor time 59s (cold) 33s (hot)
- Altitude 1000 m.a.s.l.
- Flange Without
- L. R. Amperes 118/58.8 A
- Temperature rise 80 K
- Rotation¹ Both (CW and CCW)
- Output rating 7.5 HP
- Output 7.5 HP (5.5 kW)
- No load current 13.0/6.50 A
- Duty Cycle Cont.(S1)
- Number of poles 8
- Rated speed 880 rpm
- Breakdown torque 250 %
- Enclosure IC411 - TEFC
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
