00709ET3E160LF3-W22 WEG AC Motors
Part#:00709ET3E160LF3-W22
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!

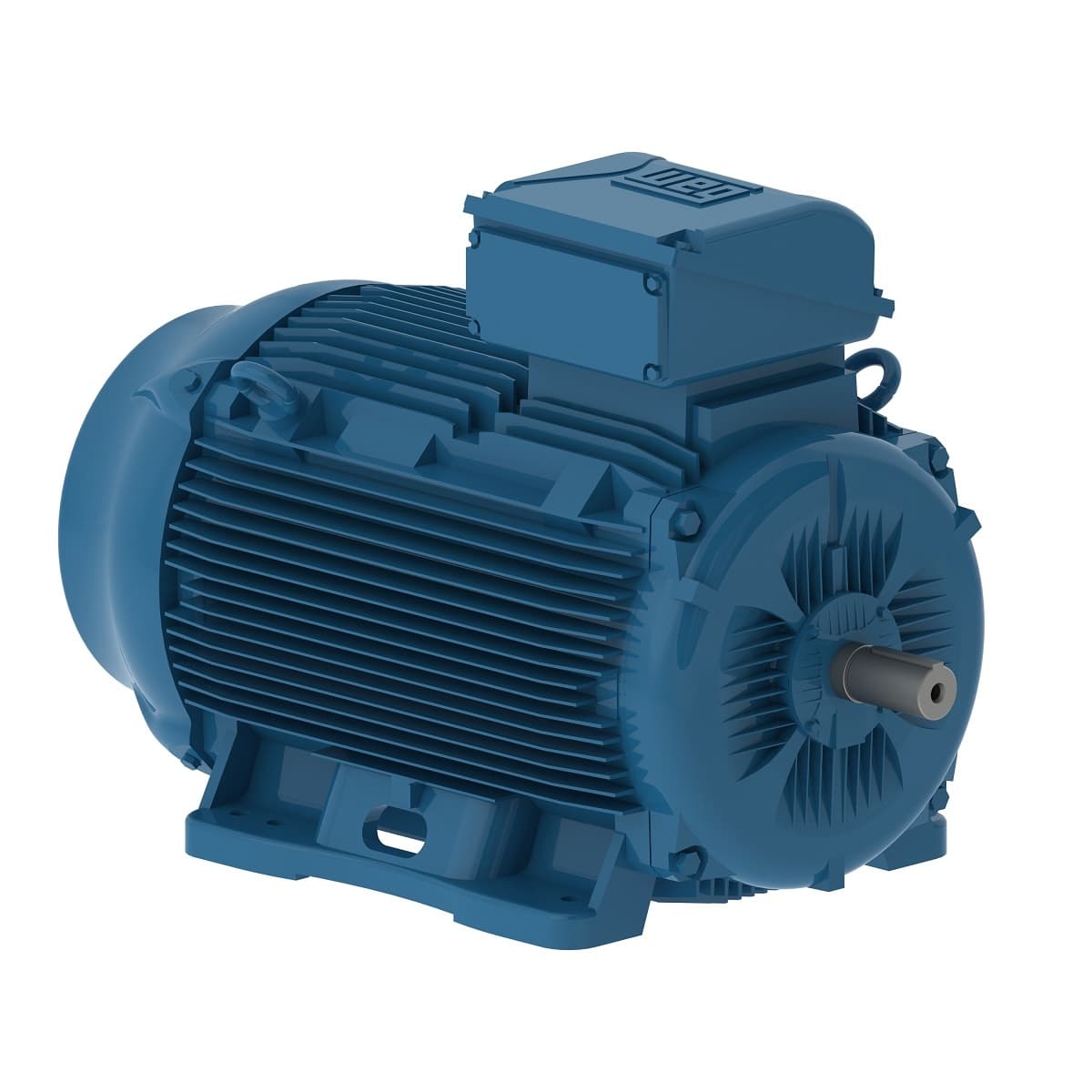

W22 Tru-Metric IE3 10 HP 8P 160L 3Ph 208-230/460//380-415 V 60 Hz IC411 - TEFC - B3T
Check out the 00709ET3E160LF3-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Frame 160L
- Locked rotor torque 190 %
- Duty Cycle S1
- Voltage 208-230/460//380-415 V
- L. R. Amperes 85.3 A
- Rated torque 72.9 ft.lb
- Degree of Protection IP55
- Output rating 10 HP
- Slip 4.00 %
- Design N
- Noise level² 51.0 dB(A)
- Temperature rise 80 K
- Approx. weight³ 309 lb
- Terminal box¹ Top
- Rated current 17.4 A
- Breakdown torque 210 %
- Enclosure IC411 - TEFC
- Number of poles 8
- Frequency 50 Hz
- Locked rotor time 39s (cold) 22s (hot)
- Standard NEMA MG-1
- Number of Poles 8
- No load current 9.50 A
- Starting Method Direct On Line
- Synchronous speed 900 rpm
- Rated voltage 380 V
- Moment of inertia (J) 3.75 sq.ft.lb
- Mounting B3T
- Output 10 HP (7.5 kW)
- Rated speed 720 rpm
- Insulation Class F
- Rotation¹ Both (CW and CCW)
- LRC 4.9
- Ambient temperature -20°C to +40°C
- Altitude 1000 m.a.s.l.
- Flange Without
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 00709ET3E160LF3-W22 Specs
