00536OS3ECD56-S WEG AC Motors
Part#:00536OS3ECD56-S
Manufacturer:WEG
Alt. Part#:7909322446912
Product Lifecycle:Active
Get a quick Quote!

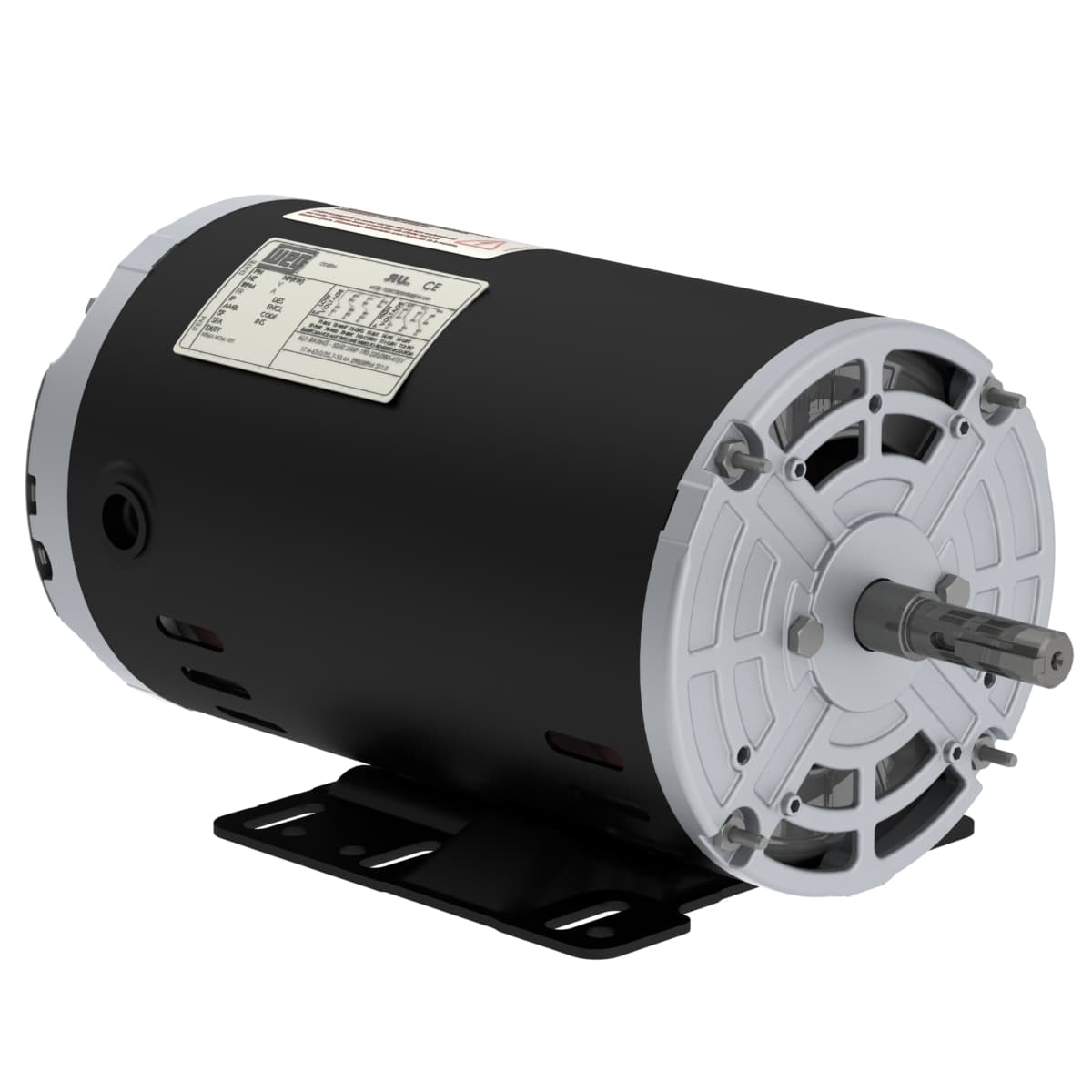

Rolled Steel Compressor Duty Standard Efficiency 5 HP 2P 56H 3Ph 208-230/460 V 60 Hz IC01 - ODP - Foot-mounted
Check out the 00536OS3ECD56-S WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating5 HP
- Rated Speed3390 rpm
- Number of Poles2 Pole
- Voltage208-230/460 V
- Flange TypeWithout
- Rated speed 3390 rpm
- Moment of inertia (J) 0.1092 sq.ft.lb
- Approx. weight³ 33.4 lb
- Number of poles 2
- Number of Poles 2
- Locked rotor time 9s (cold) 5s (hot)
- Rotation¹ Both (CW and CCW)
- Terminal box¹ Without Terminal Box
- Rated current 14.2-12.8/6.40 A
- Temperature rise 105 K
- Standard NEMA MG-1
- Frequency 60 Hz
- Insulation Class F
- Duty Cycle S3
- Voltage 208-230/460 V
- Slip 5.83 %
- No load current 0.000-4.80/2.40 A
- Altitude 1000 m.a.s.l.
- Output 5 HP (3.7 kW)
- Service factor 1.00
- Starting Method Direct On Line
- Synchronous speed 3600 rpm
- Rated voltage 208-230/460 V
- LRC 5.5x(Code G)
- Design A
- Ambient temperature -20°C to +40°C
- Frame 56H
- Locked rotor torque 170 %
- Mounting F-1
- Output rating 5 HP
- Breakdown torque 200 %
- Flange Without
- L. R. Amperes 78.1-70.4/35.2 A
- Rated torque 7.75 ft.lb
- Enclosure IC01 - ODP
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 00536OS3ECD56-S Specs
