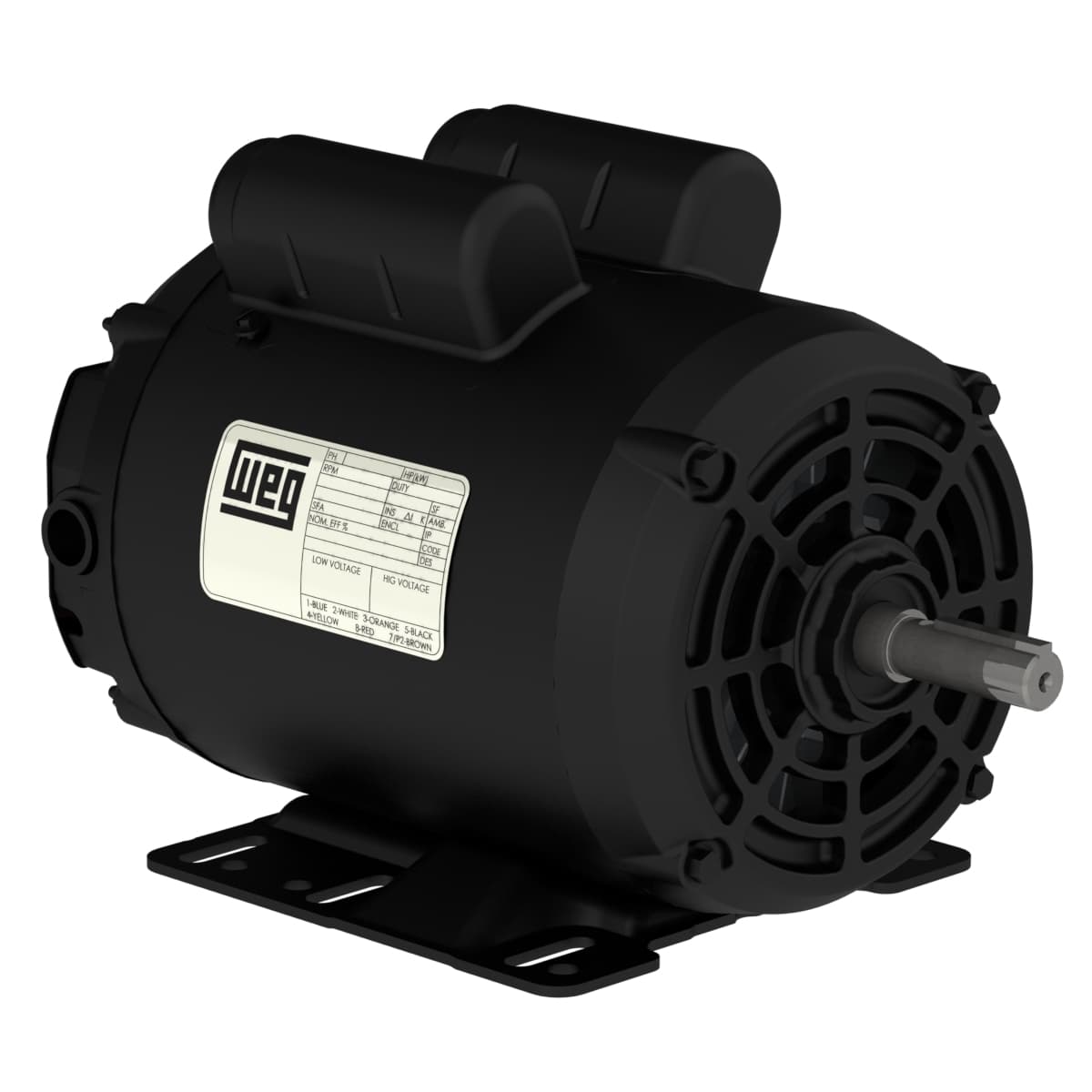

00536OS1CCDG56HZ WEG AC Motors
Part#:00536OS1CCDG56HZ
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!
Compressor Duty 5 HP 2P G56HZ 1Ph 208-230 V 60 Hz IC01 - ODP - Foot-mounted
Check out the 00536OS1CCDG56HZ WEG price in the box on the right side or send a quick quote.
Product Details
- Rated speed 3455 rpm
- Breakdown torque 200 %
- Service factor 1.00 (1.00 @ 208V)
- Mounting F-1
- Output 5 HP (3.7 kW)
- Temperature rise 105 K
- Approx. weight³ 48.2 lb
- Flange Without
- Rated voltage 208/230 V
- Starting Method Direct On Line
- Standard NEMA MG-1
- Number of Poles 2
- Locked rotor torque 220 %
- Terminal box¹ Without Terminal Box
- Frame G56HZ
- No load current 3.19/3.70 A
- Duty Cycle Cont.(S1)
- Voltage 208-230 V
- Frequency 60 Hz
- Locked rotor time 10s (cold) 6s (hot)
- Altitude 1000 m.a.s.l.
- Number of poles 2
- LRC 6.5x(Code G)
- Degree of Protection IP21
- Output rating 5 HP
- L. R. Amperes 137/124 A
- Ambient temperature -20°C to +40°C
- Synchronous speed 3600 rpm
- Slip 4.03 %
- Insulation Class F
- Rated torque 7.60 ft.lb
- Enclosure IC01 - ODP
- Rated current 21.0/19.1 A
- Moment of inertia (J) 0.0721 sq.ft.lb
- Rotation¹ CCW
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 00536OS1CCDG56HZ Specs
