00536OT3E182JMV-S WEG AC Motors
Part#:00536OT3E182JMV-S
Manufacturer:WEG
Alt. Part#:7909322237220
Product Lifecycle:Active
Get a quick Quote!

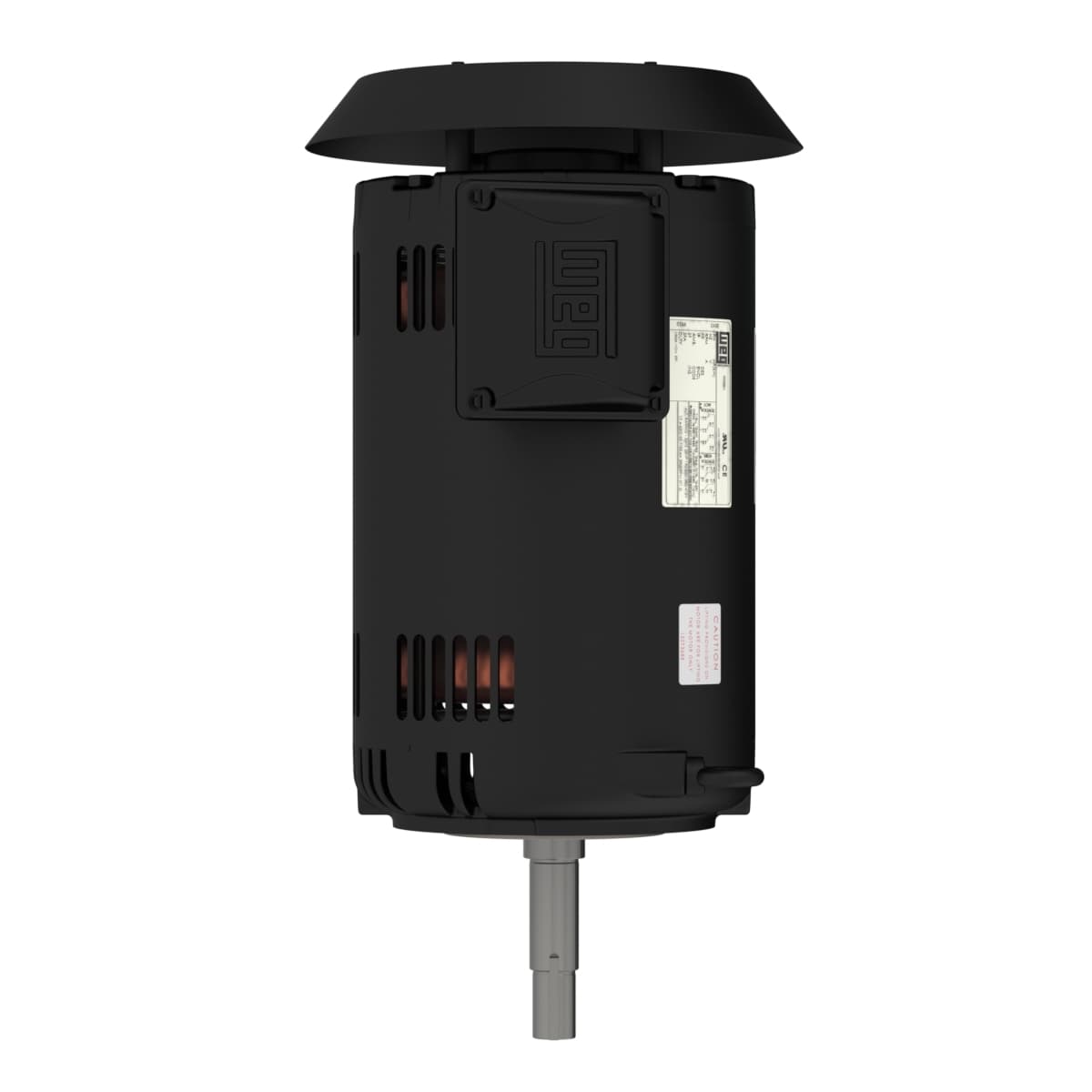

Rolled Steel JM Pump NEMA Premium Efficiency 5 HP 2P 182/4JM 3Ph 230/460//190-220/380-415 V 60//50 Hz IC01 - ODP - Footless
Check out the 00536OT3E182JMV-S WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating5 HP
- Rated Speed3510 rpm
- Number of Poles2 Pole
- Voltage230/460 V
- Flange TypeC
- Frequency 60 Hz
- Breakdown torque 300 %
- Terminal box¹ Left position
- Rated current 12.6/6.32 A
- Temperature rise 80 K
- Rotation¹ Both (CW and CCW)
- Output rating 5 HP
- LRC 7.6x(Code J)
- Starting Method Direct On Line
- Standard NEMA MG-1
- Rated speed 3510 rpm
- Insulation Class F
- Voltage 230/460//190-220/380-415 V
- L. R. Amperes 96.1/48.0 A
- Moment of inertia (J) 0.1386 sq.ft.lb
- Altitude 1000 m.a.s.l.
- Synchronous speed 3600 rpm
- Slip 2.50 %
- Locked rotor time 27s (cold) 15s (hot)
- Approx. weight³ 65.7 lb
- Frame 182/4JM
- Rated torque 7.48 ft.lb
- Noise level² 65.0 dB(A)
- Number of Poles 2
- Design B
- Enclosure IC01 - ODP
- Flange C
- Rated voltage 230/460 V
- Locked rotor torque 190 %
- Ambient temperature -20°C to +40°C
- Number of poles 2
- Output 5 HP (3.7 kW)
- No load current 6.20/3.10 A
- Duty Cycle Cont.(S1)
- Mounting W-6
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 00536OT3E182JMV-S Specs
