00536OS1C184T-S WEG AC Motors
Part#:00536OS1C184T-S
Manufacturer:WEG
Product Lifecycle:Active
Get a quick Quote!

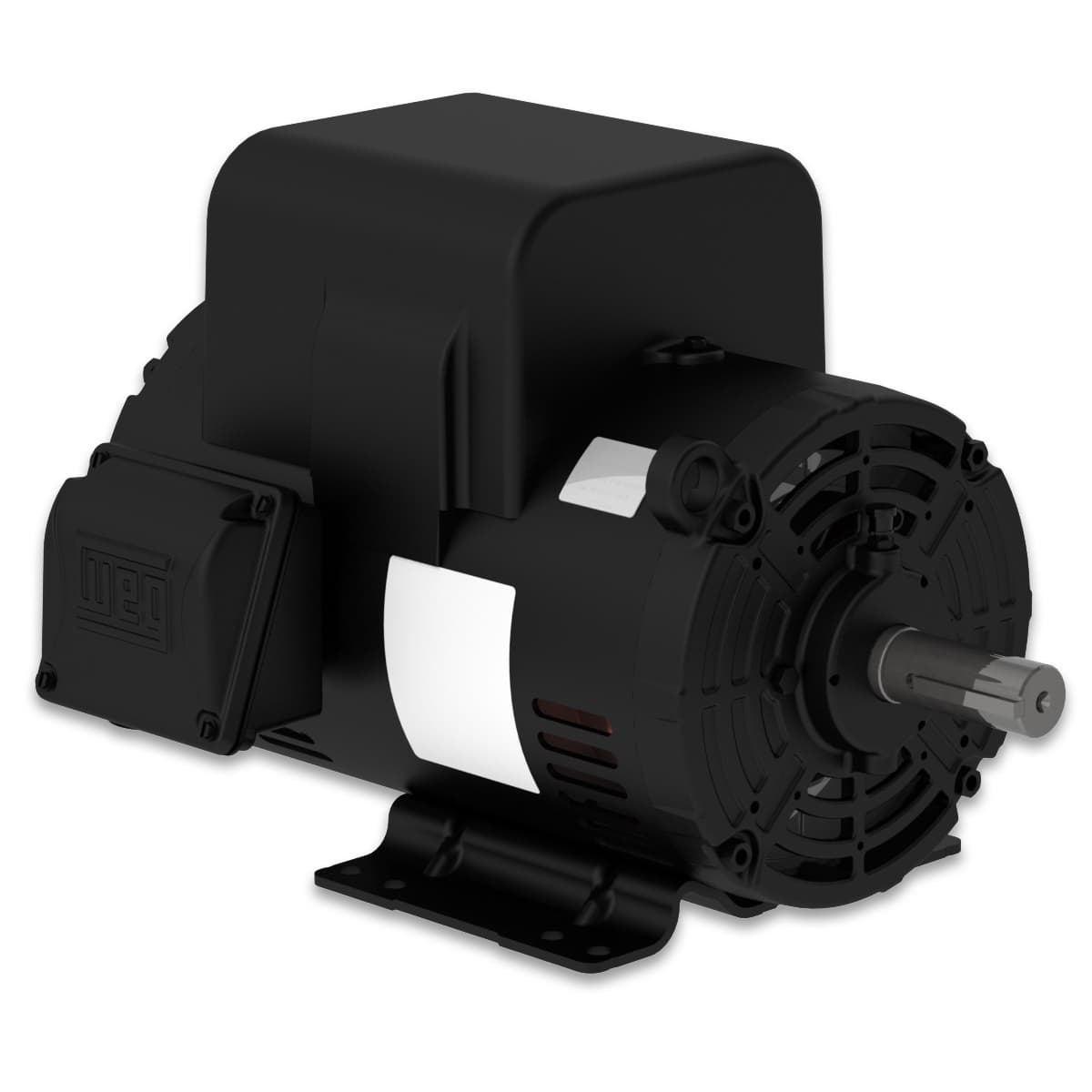

Rolled Steel 5 HP 2P 182/4T 1Ph 208-230 V 60 Hz IC01 - ODP - Foot-mounted
Check out the 00536OS1C184T-S WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating5 HP
- Rated Speed3495 rpm
- Number of Poles2 Pole
- Voltage208-230 V
- Flange TypeWithout
- Number of Poles 2
- LRC 6.9x(Code G)
- Ambient temperature -20°C to +40°C
- Number of poles 2
- Slip 2.92 %
- Breakdown torque 250 %
- Service factor 1.15 (1.00 @ 208V)
- Voltage 208-230 V
- Rated voltage 208-230 V
- Enclosure IC01 - ODP
- Terminal box¹ Left position
- L. R. Amperes 148-133 A
- Insulation Class F
- Standard NEMA MG-1
- Locked rotor time 10s (cold) 6s (hot)
- Temperature rise 80 K
- Approx. weight³ 68.6 lb
- Output 5 HP (3.7 kW)
- Rated torque 7.51 ft.lb
- Starting Method Direct On Line
- Output rating 5 HP
- Frequency 60 Hz
- Moment of inertia (J) 0.1559 sq.ft.lb
- Mounting F-1
- Frame 182/4T
- Locked rotor torque 290 %
- Altitude 1000 m.a.s.l.
- Synchronous speed 3600 rpm
- Rated current 21.5-19.3 A
- Design L
- Rotation¹ Both (CW and CCW)
- Rated speed 3495 rpm
- No load current 2.41-2.80 A
- Duty Cycle Cont.(S1)
- Flange Without
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 00536OS1C184T-S Specs
1-year warranty
