00536OS1DCD56HZ-S WEG AC Motors
Part#:00536OS1DCD56HZ-S
Manufacturer:WEG
Alt. Part#:7909322336787
Product Lifecycle:Active
Get a quick Quote!

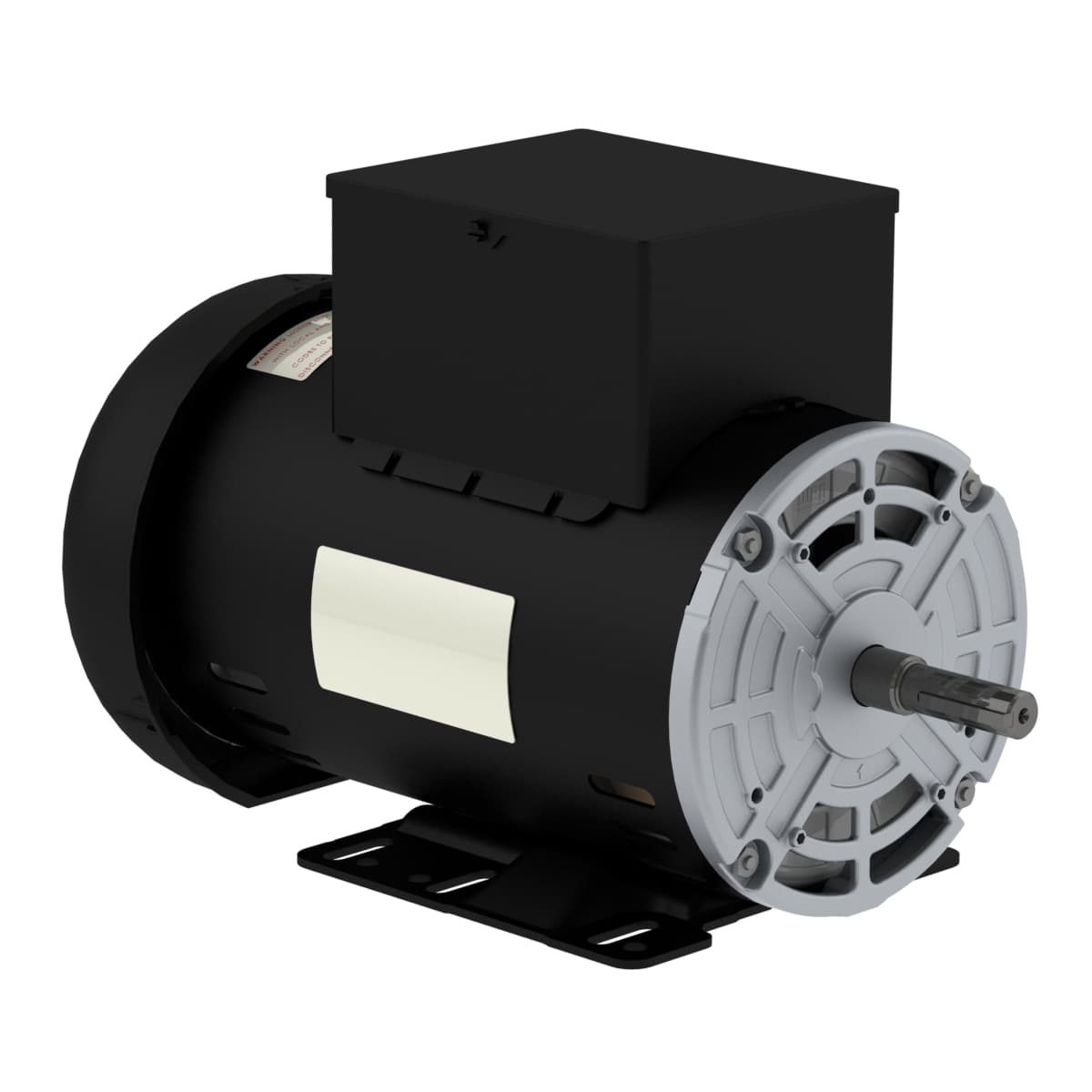

Rolled Steel Compressor Duty 5 HP 2P 56HZ 1Ph 230 V 60 Hz - Foot-mounted
Check out the 00536OS1DCD56HZ-S WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating5 HP
- Rated Speed3440 rpm
- Number of Poles2 Pole
- Voltage230 V
- Flange TypeWithout
- Number of Poles 2
- Duty Cycle Cont.(S1)
- Voltage 230 V
- L. R. Amperes 122 A
- Locked rotor torque 240 %
- Service factor 1.00
- Synchronous speed 3600 rpm
- Frequency 60 Hz
- Design L
- Rated torque 7.63 ft.lb
- Altitude 1000 m.a.s.l.
- Frame 56HZ
- Locked rotor time 7s (cold) 4s (hot)
- Approx. weight³ 49.6 lb
- Rated voltage 230 V
- Temperature rise 105 K
- Number of poles 2
- Rated speed 3440 rpm
- No load current 4.70 A
- Starting Method Direct On Line
- Output rating 5 HP
- Output 5 HP (3.7 kW)
- Moment of inertia (J) 0.0864 sq.ft.lb
- Rotation¹ Both (CW and CCW)
- Rated current 20.3 A
- Breakdown torque 200 %
- Noise level² 68.0 dB(A)
- Standard NEMA MG-1
- Slip 4.44 %
- Insulation Class F
- Mounting F-3
- Flange Without
- LRC 6.0x(Code G)
- Ambient temperature -20°C to +40°C
- Terminal box¹ Top
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 00536OS1DCD56HZ-S Specs
