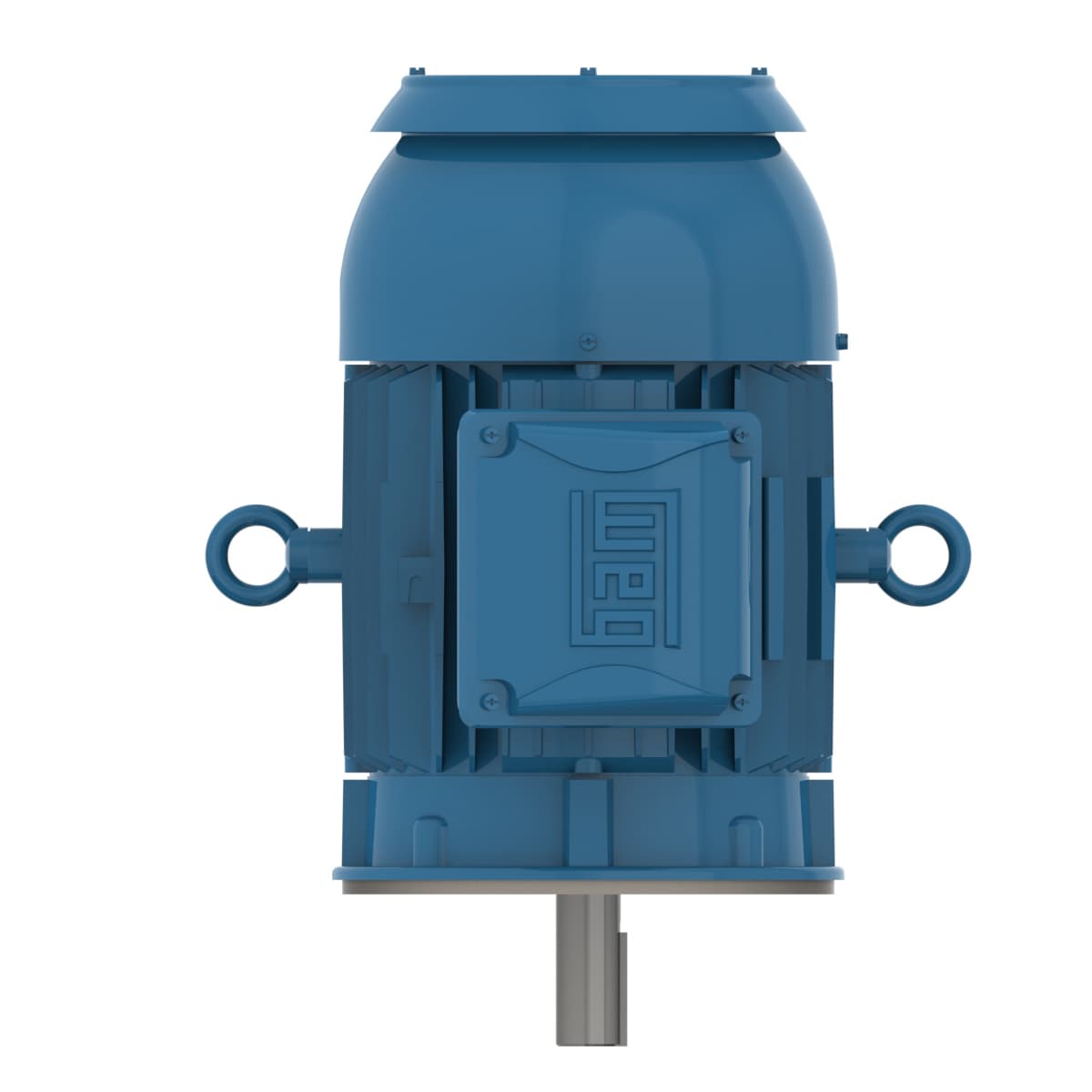

00536ET3ER184TC-W22 WEG AC Motors
Part#:00536ET3ER184TC-W22
Manufacturer:WEG
Alt. Part#:7909158843428
Product Lifecycle:Active
Get a quick Quote!
W22 NEMA Premium Efficiency 5 HP 2P 184TC 3Ph 230/460//380 V 60//50 Hz IC411 - TEFC - Footless
Check out the 00536ET3ER184TC-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating5 HP
- Rated Speed3500 rpm
- Number of Poles2 Pole
- Voltage230/460 V
- Flange TypeC
- Frame 184TC
- Frequency 60 Hz
- Rated speed 3500 rpm
- Locked rotor time 32s (cold) 18s (hot)
- Approx. weight³ 95.7 lb
- Mounting W-6
- Slip 2.78 %
- No load current 4.00/2.00 A
- Service factor 1.25
- Rotation¹ Both (CW and CCW)
- Number of Poles 2
- Rated torque 7.50 ft.lb
- Degree of Protection IP55
- Ambient temperature -20°C to +40°C
- Terminal box¹ Left position
- Flange C
- Number of poles 2
- Locked rotor torque 229 %
- Altitude 1000 m.a.s.l.
- Insulation Class F
- Design B
- LRC 7.6x(Code J)
- Temperature rise 80 K
- Enclosure IC411 - TEFC
- Voltage 230/460//380 V
- Output 5 HP (3.7 kW)
- Breakdown torque 350 %
- Duty Cycle Cont.(S1)
- Synchronous speed 3600 rpm
- Moment of inertia (J) 0.2233 sq.ft.lb
- Standard NEMA MG-1
- Output rating 5 HP
- Rated voltage 230/460 V
- Starting Method Direct On Line
- Noise level² 66.0 dB(A)
- Rated current 11.8/5.90 A
- L. R. Amperes 89.7/44.8 A
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 00536ET3ER184TC-W22 Specs
