00536ET3E184TF3-W22 WEG AC Motors
Part#:00536ET3E184TF3-W22
Manufacturer:WEG
Alt. Part#:7909018343822
Product Lifecycle:Active
Get a quick Quote!

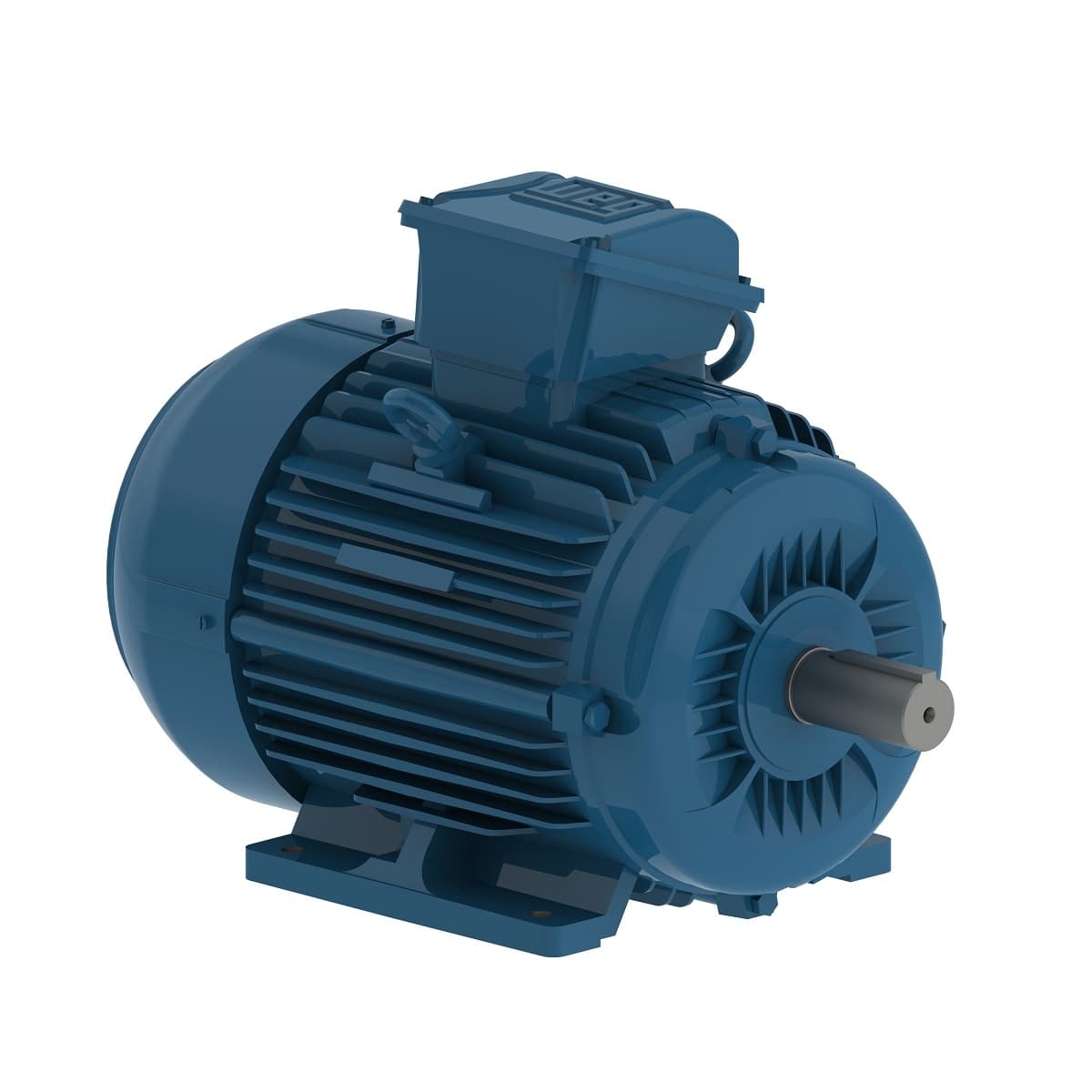

W22 NEMA Premium Efficiency 5 HP 2P 184T 3Ph 230/460//380 V 60//50 Hz IC411 - TEFC - Foot-mounted
Check out the 00536ET3E184TF3-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating5 HP
- Rated Speed3500 rpm
- Number of Poles2 Pole
- Voltage230/460 V
- Flange TypeWithout
- Frame 184T
- Service factor 1.25
- Enclosure IC411 - TEFC
- Synchronous speed 3600 rpm
- Slip 2.78 %
- Design B
- Altitude 1000 m.a.s.l.
- Voltage 230/460//380 V
- Output 5 HP (3.7 kW)
- Locked rotor time 32s (cold) 18s (hot)
- Duty Cycle Cont.(S1)
- Terminal box¹ Top
- LRC 7.6x(Code J)
- Degree of Protection IP55
- Output rating 5 HP
- Frequency 60 Hz
- Insulation Class F
- Rotation¹ Both (CW and CCW)
- Number of poles 2
- L. R. Amperes 89.7/44.8 A
- Temperature rise 80 K
- Noise level² 66.0 dB(A)
- Rated current 11.8/5.90 A
- Moment of inertia (J) 0.2233 sq.ft.lb
- Locked rotor torque 229 %
- Approx. weight³ 96.2 lb
- Number of Poles 2
- Rated torque 7.50 ft.lb
- Starting Method Direct On Line
- Flange Without
- Rated voltage 230/460 V
- No load current 4.00/2.00 A
- Standard NEMA MG-1
- Rated speed 3500 rpm
- Breakdown torque 350 %
- Ambient temperature -20°C to +40°C
- Mounting F-3
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 00536ET3E184TF3-W22 Specs
