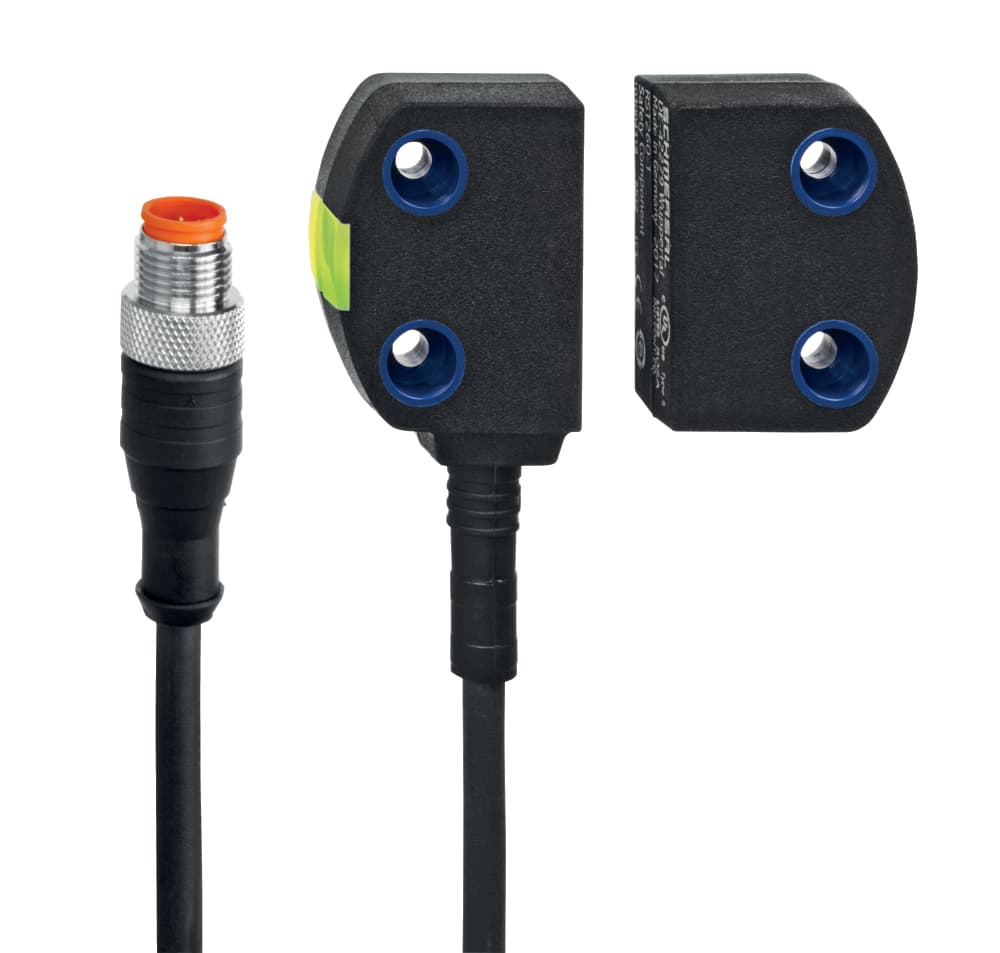

RSS260-I2-ST-AS Schmersal Safety Switches
Part#:RSS260-I2-ST-AS
Manufacturer:Schmersal
Alt. Part#:103004641
Product Lifecycle:Active
Get a quick Quote!
RSS260-I2-ST-AS Schmersal - AS interface safety at work; Safety switchgear; Repeated individual coding with RFID technology; Coding level "High" according to ISO 14119; Safety sensor, electronic; Thermoplastic enclosure; Small body, high switching distance; Protection class IP65 / I
About the manufacturer: Schmersal is one of the manufacturers that offers Safety Switches that you can order at marketplace.quotebeam.com. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.
Check out the RSS260-I2-ST-AS Schmersal price in the box on the right side or send a quick quote.
Product Details
- Active principle RFID
- Ensured switching distance ON, front 10 mm
- Length of sensor 18 mm
- Protection rating III
- AS-i Specification Safety-Slave
- AS-i Input, Channel 2 Data bits DI 2 / DI 3 = dynamic code transmission
- AS-i Input module address 0
- Standards IEC 61508, IEC 60947-5-3, EN ISO 14119
- Number of actuating directions 2
- Ensured switching distance ON, side 6 mm
- Ambient temperature, maximum +60 °C
- AS-i Operating voltage, minimum 18 VDC
- AS-i Parameter bits, P0 Actuator in
- Duration of risk, maximum 200 ms
- Integral System Diagnostics, status Yes
- Ensured switch distance OFF Sar, lateral 15 mm
- Degree of protection IP65 to EN 60529, IP67 to EN 60529
- Overvoltage category III
- AS-i Operating voltage AS-i maximum 31.6 VDC
- AS-i, IO-Code 0x0
- AS-i Parameter bits, P1 Enabling inhibit (tamper protection time) active (FID))
- Coding level according to ISO 14119 High
- Gross weight 55 g
- Switch distance Sn 12 mm, 9 mm (in case of approach from side)
- Storage and transport temperature, minimum -25 °C
- Switching frequency, maximum 1 Hz
- AS-i, ID-Code 0xB
- AS-i Parameter bits, P3 Internal device error (FID)
- Time to readiness, maximum 2,000 ms
- Safety functions Yes
- Terminal Connector Connector M8, 4-pole, A-coded
- Width of sensor 40 mm
- Degree of pollution to VDE 0100 3
- AS-i, ID-Code1 0xF
- AS-i Parameter bits, P2 Enabling inhibit (tamper protection time) active (FID)
- Rated insulation voltage Ui 32 VDC
- AS-i Version V 2.1
- AS-i Input, Channel 1 Data bits DI 0 / DI 1 = dynamic code transmission
- Reaction time, maximum 100 ms
- Coding Yes
- Height of sensor 29.5 mm
- Resistance to vibrations to EN 60068-2-6 10 … 55 Hz, amplitude 1 mm
- Rated impulse withstand voltage Uimp 0.8 kV
- AS-i Profile S-0.B.F.E
- Note (AS-i Parameter bits) Set the parameter outputs to "1111" (0xF), FID: periphery error
- general information Individual coding, multiple teaching
- Repeat accuracy R R 0.5 mm
- Ambient temperature, minimum -25 °C
- Storage and transport temperature, maximum +85 °C
- AS-i Current consumption, maximum 100 mA
- AS-i Outputs, DO 0 … DO 3 No Function
- Enclosure material Thermoplastic hotmelt
- Hysteresis (Switch distance), maximum 2 mm
- Ensured switching distance OFF, front 18 mm
- Restistance to shock 30 g / 11 ms
- Note (AS-i Operating voltage) Protection against polarity reversal
- AS-i, ID-Code2 0xE
- Note (AS-i Input module address) Preset to address 0, can be changed through AS-interface bus master or hand-held programming device
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
RSS260-I2-ST-AS Description
RSS260-I2-ST-AS Schmersal - AS interface safety at work; Safety switchgear; Repeated individual coding with RFID technology; Coding level "High" according to ISO 14119; Safety sensor, electronic; Thermoplastic enclosure; Small body, high switching distance; Protection class IP65 / I
