RSS21S2 Schmersal Key Switches
Part#:RSS21S2
Manufacturer:Schmersal
Alt. Part#:101195362
Product Lifecycle:Active
Get a quick Quote!

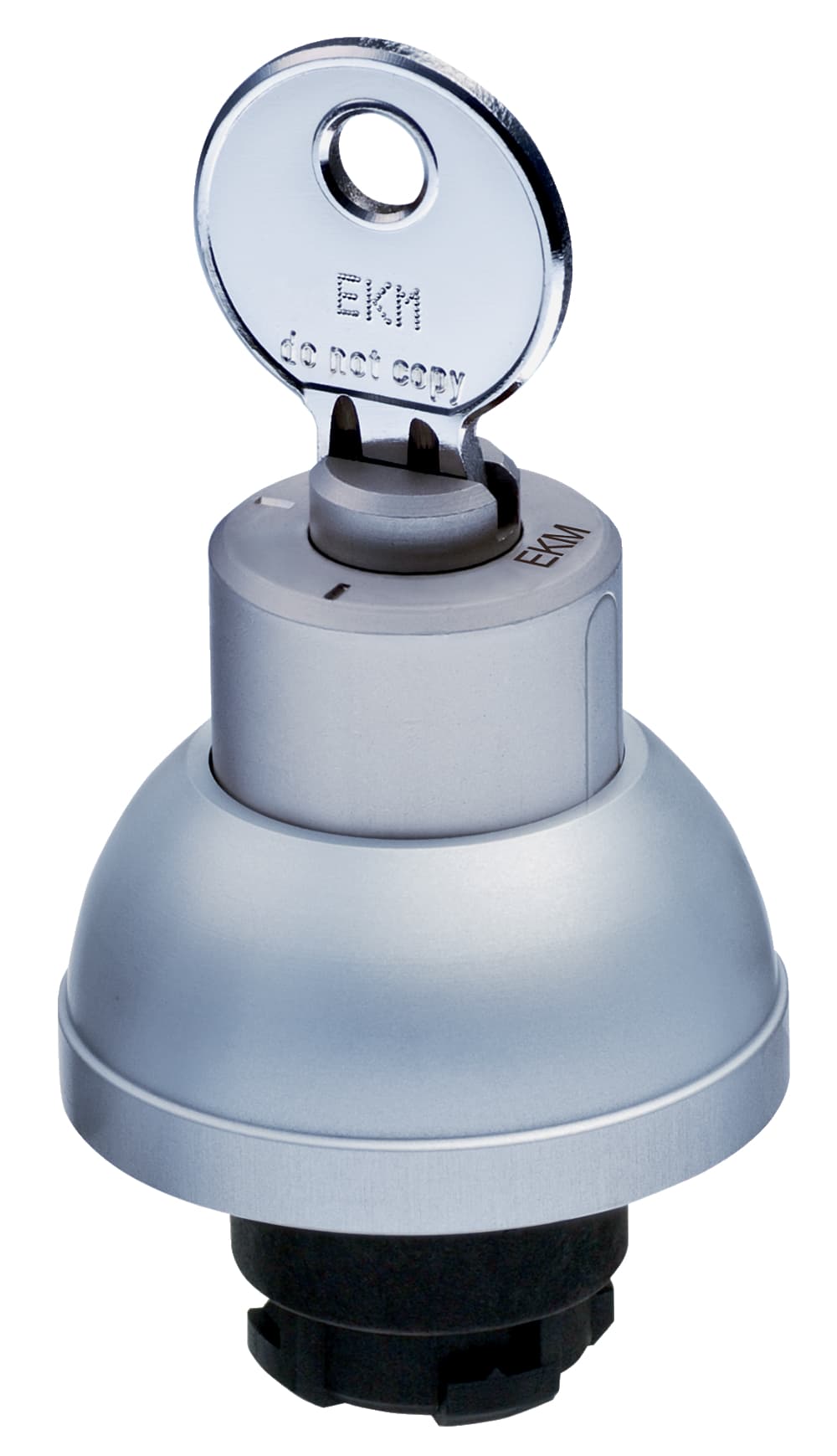

RSS21S2 Schmersal - Keyed Selector Switch
About the manufacturer: Schmersal is one of the manufacturers that offers Key Switches that you can order at marketplace.quotebeam.com. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.
Check out the RSS21S2 Schmersal price in the box on the right side or send a quick quote.
Product Details
- Colour of the front ring Silver
- Key withdrawal position Position I
- Tightening torque of the screw 0.6 Nm
- Ambient temperature, minimum +0 °C
- Sealing type Membrane, Lip gaskets, Form seals
- Mechanical life, minimum 300,000 Operations
- diameters for the cylinder lock 22 mm
- Installation conditions (mechanical) arbitrarily
- Fully insulated Yes
- Diameter hole 22.3 mm
- Material of the cylinder lock Steel
- Number of switch positions 2
- Diameter of the front ring 39.5 mm
- Thickness of the front panel, maximum 6 mm
- Versions Key - Selector switch - Front plate mounting
- Latching Yes
- Latching position right
- Height with key inserted 58 mm
- Spacing 50 x 60 mm
- Standards EN 60947-5-1, IEC/EN 60947-1
- Gross weight 100 g
- Diameter total 39.5 mm
- Diameter hole, with tolerance indication 22.3 + 0.4 mm
- Degree of protection IP65
- Colour of the cylinder lock Silver
- Unlocking Rotating unlatcher
- Mounting Mounting flange EFM
- Thickness, of the front panel, minimum 1 mm
- Restistance to shock 50 g
- Material of the front ring Aluminium
- Number of plunger 1
- Switching angle, right 90 °
- Ambient temperature, maximum +75 °C
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
RSS21S2 Description
RSS21S2 Schmersal - Keyed Selector Switch
Related documents RSS21S2 Specs
