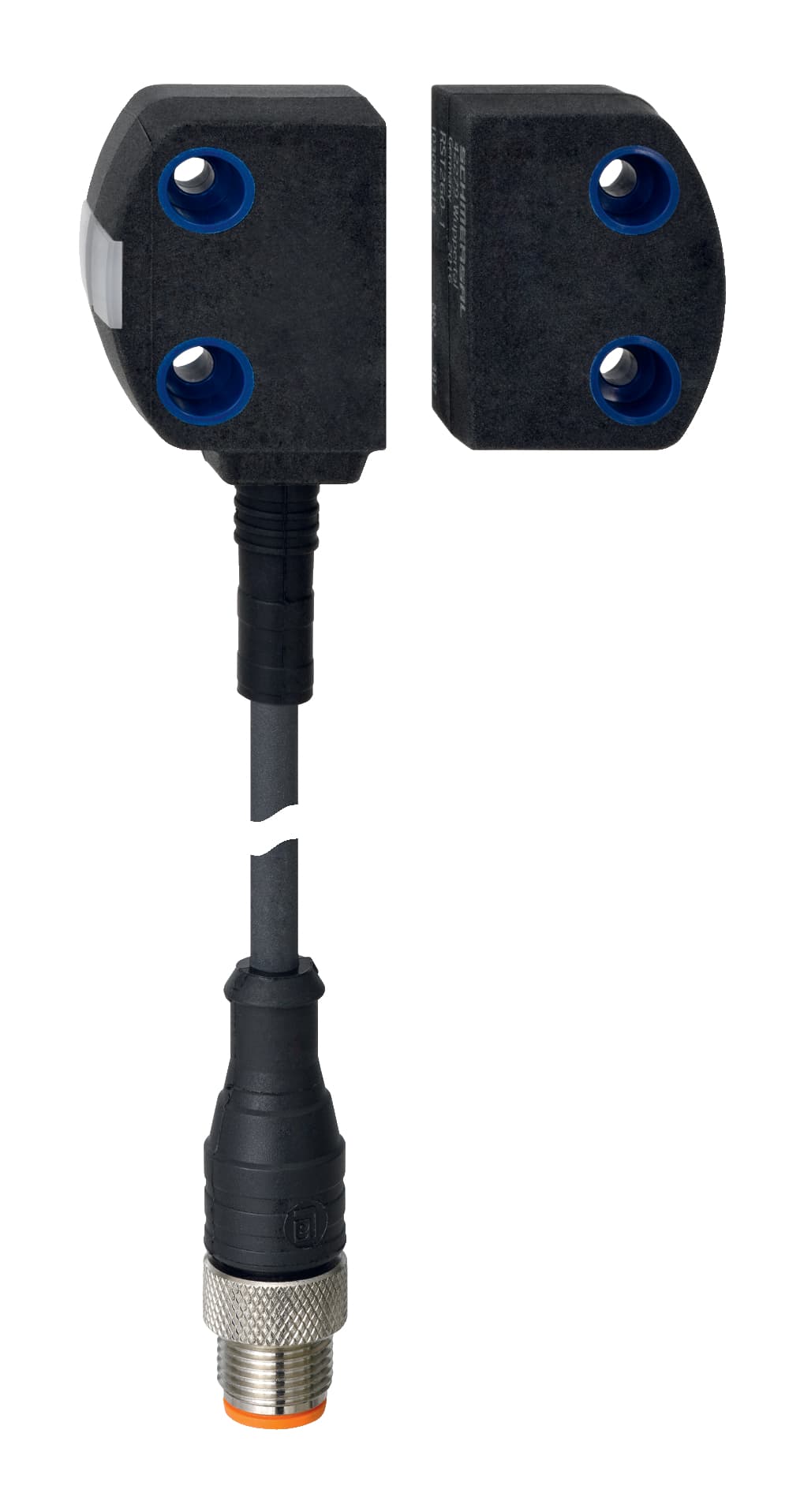

RSS260-I2-D-LSTM12-8-0,25M Schmersal Electronic Components
Part#:RSS260-I2-D-LSTM12-8-0,25M
Manufacturer:Schmersal
Alt. Part#:103014732
Product Lifecycle:Active
Get a quick Quote!
Safety sensors; Electronic safety sensors; 8-pole connector M12; Coding level "High" according to ISO 14119; Simple mounting without additional angle; Individual coding with RFID technology; Frontal and lateral actuation enabled; RFID-technology for needs
About the manufacturer: Schmersal is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.
Check out the RSS260-I2-D-LSTM12-8-0,25M Schmersal price in the box on the right side or send a quick quote.
Product Details
- EMC rating IEC 60947-3
- Interfering radiation IEC 61000-6-4
- Short circuit detection Yes
- Safety functions Yes
- Length of sensor 29.5 mm
- Rated operating voltage, minimum 20.4 VDC
- No-load supply current I0 100 mA
- Current, Utilisation category DC12 0.05 A
- Gross weight 161 g
- Duration of risk, maximum 200 ms
- Storage and transport temperature, minimum -25 °C
- Rated insulation voltage Ui 32 VDC
- Current leakage Ir 0.5 mA
- Operating current 50 mA
- Enclosure material Plastic, thermoplastic, self-extinguishing
- Hysteresis (Switch distance), maximum 2 mm
- Rated impulse withstand voltage Uimp 0.8 kV
- general information Individual coding, multiple teaching
- Reaction time, maximum 100 ms
- Repeat accuracy R R 0.5 mm
- Ensured switching distance OFF, front 18 mm
- Restistance to shock 30 g / 11 ms
- Required rated short-circuit current to EN 60947-5-1 100 A
- Ensured switching distance ON, front 10 mm
- Storage and transport temperature, maximum +85 °C
- Rated operating voltage, maximum 26.4 VDC
- Voltage, Utilisation category DC13 24 VDC
- Standards IEC 60947-5-3
- Number of poles 8
- Coding level according to ISO 14119 High
- Ensured switch distance OFF Sar, lateral 15 mm
- Ambient temperature, maximum +65 °C
- Ambient temperature, minimum -25 °C
- Degree of pollution to VDE 0100 3
- Voltage drop Ud, maximum 2 V
- Housing construction form Block
- Time to readiness, maximum 2,000 ms
- Actuating panels lateral, front side
- Note The cable section of the interconnecting cable must be observed for both wiring variants! Cable length and cable section alter the voltage drop depending on the output current
- Terminal Connector Connector M8, 8-pole
- Overvoltage category III
- Switching frequency, approx. 1 Hz
- Current, Utilisation category DC13 0.05 A
- Active principle RFID
- Short-circuit recognition Yes
- Ensured switching distance ON, side 6 mm
- Height of sensor 18 mm
- Degree of protection IP65 to EN 60529, IP67 to EN 60529
- Voltage type DC (direct current)
- Voltage, Utilisation category DC12 24 VDC
- Installation conditions (mechanical) not flush
- Active area lateral, front
- Mounting A 20 mm screw length usually suffices to mount the sensor. When the mounting plates are used, we recommend 25 mm long screws.
- Width of sensor 39.2 mm
- Resistance to vibrations to EN 60068-2-6 10 … 55 Hz, amplitude 1 mm
- Rated operating voltage 24 VDC -15% / +10%
- Versions p-type
