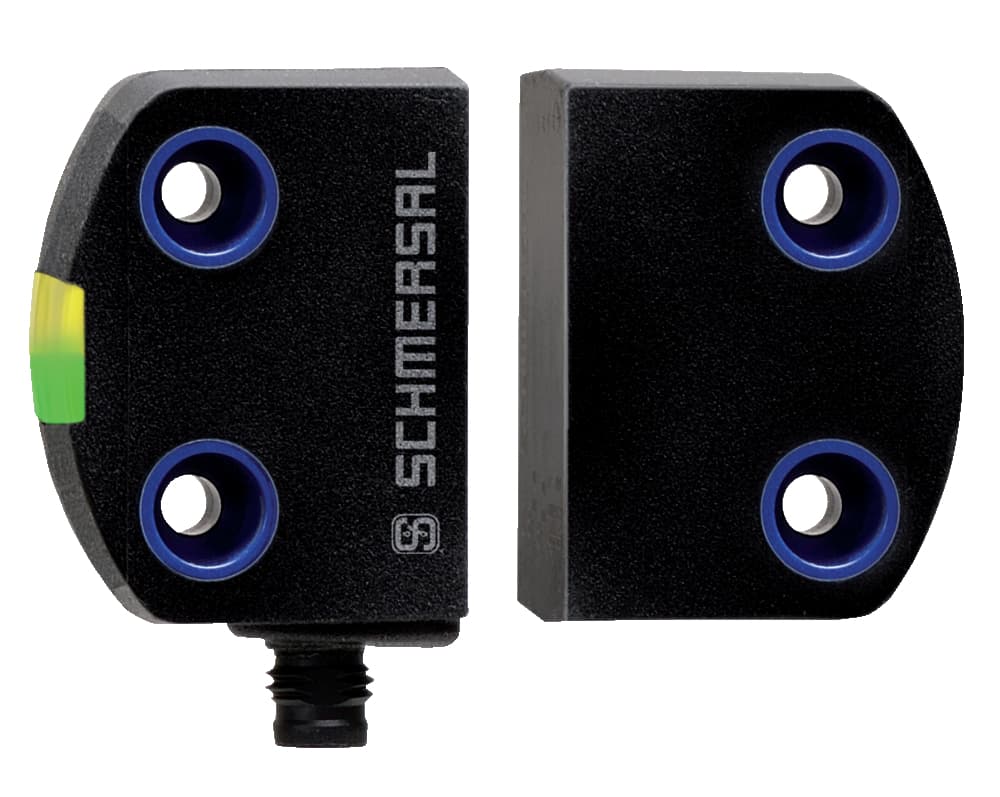

RSS260-I2-D-ST Schmersal Safety Switches
Part#:RSS260-I2-D-ST
Manufacturer:Schmersal
Alt. Part#:103003607
Product Lifecycle:Active
Get a quick Quote!
RSS260-I2-D-ST Schmersal - Safety sensors; Electronic safety sensors; Repeated individual coding with RFID technology; Coding level "High" according to ISO 14119; 1 x connector plug M8; Frontal and lateral actuation enabled; Thermoplastic enclosure; Simple mounting without addition
About the manufacturer: Schmersal is one of the manufacturers that offers Safety Switches that you can order at marketplace.quotebeam.com. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.
Check out the RSS260-I2-D-ST Schmersal price in the box on the right side or send a quick quote.
Product Details
- general information Individual coding, multiple teaching
- Active principle RFID
- Cascadable Yes
- Repeat accuracy R R 0.5 mm
- Switch distance Sn front 12 mm, lateral 9 mm
- Terminal Connector Connector M8
- Resistance to vibrations to EN 60068-2-6 10 … 55 Hz, amplitude 1 mm
- Degree of pollution to VDE 0100 3
- Operating current 50 mA
- Current, Utilisation category DC13 0.05 A
- Reaction time, maximum 100 ms
- Installation conditions (mechanical) not flush
- Integral System Diagnostics, status Yes
- Ensured switching distance ON, front 10 mm
- Ambient temperature, maximum +65 °C
- No-load supply current I0 100 mA
- Voltage drop Ud, maximum 2 V
- Actuating panels lateral, front side
- Standards IEC 60947-5-3
- Duration of risk, maximum 200 ms
- Ensured switching distance OFF, front 18 mm
- Ambient temperature, minimum -25 °C
- Rated insulation voltage Ui 32 VDC
- Required rated short-circuit current to EN 60947-5-1 100 A
- Voltage, Utilisation category DC13 24 VDC
- EMC rating IEC 60947-3
- Sensor topology Sensor for series wiring
- Time to readiness, maximum 2,000 ms
- Number of fail-safe digital outputs 2
- Ensured switching distance ON, side 6 mm
- Height of sensor 18 mm
- Voltage type DC (direct current)
- Switching frequency, approx. 1 Hz
- Storage and transport temperature, maximum +85 °C
- Coding level according to ISO 14119 High
- Safety functions Yes
- Number of semi-conductor outputs with signaling function 1
- Active area lateral, front
- Mounting A 20 mm screw length usually suffices to mount the sensor. When the mounting plates are used, we recommend 25 mm long screws.
- Length of sensor 29.5 mm
- Overvoltage category III
- Current leakage Ir 0.5 mA
- Housing construction form Block
- Diagnostic output Yes
- Hysteresis (Switch distance), maximum 2 mm
- Ensured switch distance OFF Sar, lateral 15 mm
- Degree of protection IP65 to EN 60529, IP67 to EN 60529
- Rated operating voltage, minimum 20.4 VDC
- Versions p-type
- Interfering radiation IEC 61000-6-4
- Enclosure material Plastic, thermoplastic, self-extinguishing
- Short circuit detection Yes
- Number of LEDs 3
- Width of sensor 39.2 mm
- Storage and transport temperature, minimum -25 °C
- Rated operating voltage, maximum 26.4 VDC
- Rated impulse withstand voltage Uimp 0.8 kV
- Voltage, Utilisation category DC12 24 VDC
- Gross weight 61 g
- Short-circuit recognition Yes
- Note (Repeat accuracy R) Axial offset: The long side allows for a maximum height misalignment (x) of sensor and actuator of 8 mm (e.g. mounting tolerance or due to guard door sagging). The axial misalignment (y) is max. ± 18 mm (see figure: Operating principle). Minimum clearance
- Note The cable section of the interconnecting cable must be observed for both wiring variants! Cable length and cable section alter the voltage drop depending on the output current
- Restistance to shock 30 g / 11 ms
- Rated operating voltage 24 VDC -15% / +10%
- Current, Utilisation category DC12 0.05 A
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
RSS260-I2-D-ST Description
RSS260-I2-D-ST Schmersal - Safety sensors; Electronic safety sensors; Repeated individual coding with RFID technology; Coding level "High" according to ISO 14119; 1 x connector plug M8; Frontal and lateral actuation enabled; Thermoplastic enclosure; Simple mounting without addition
