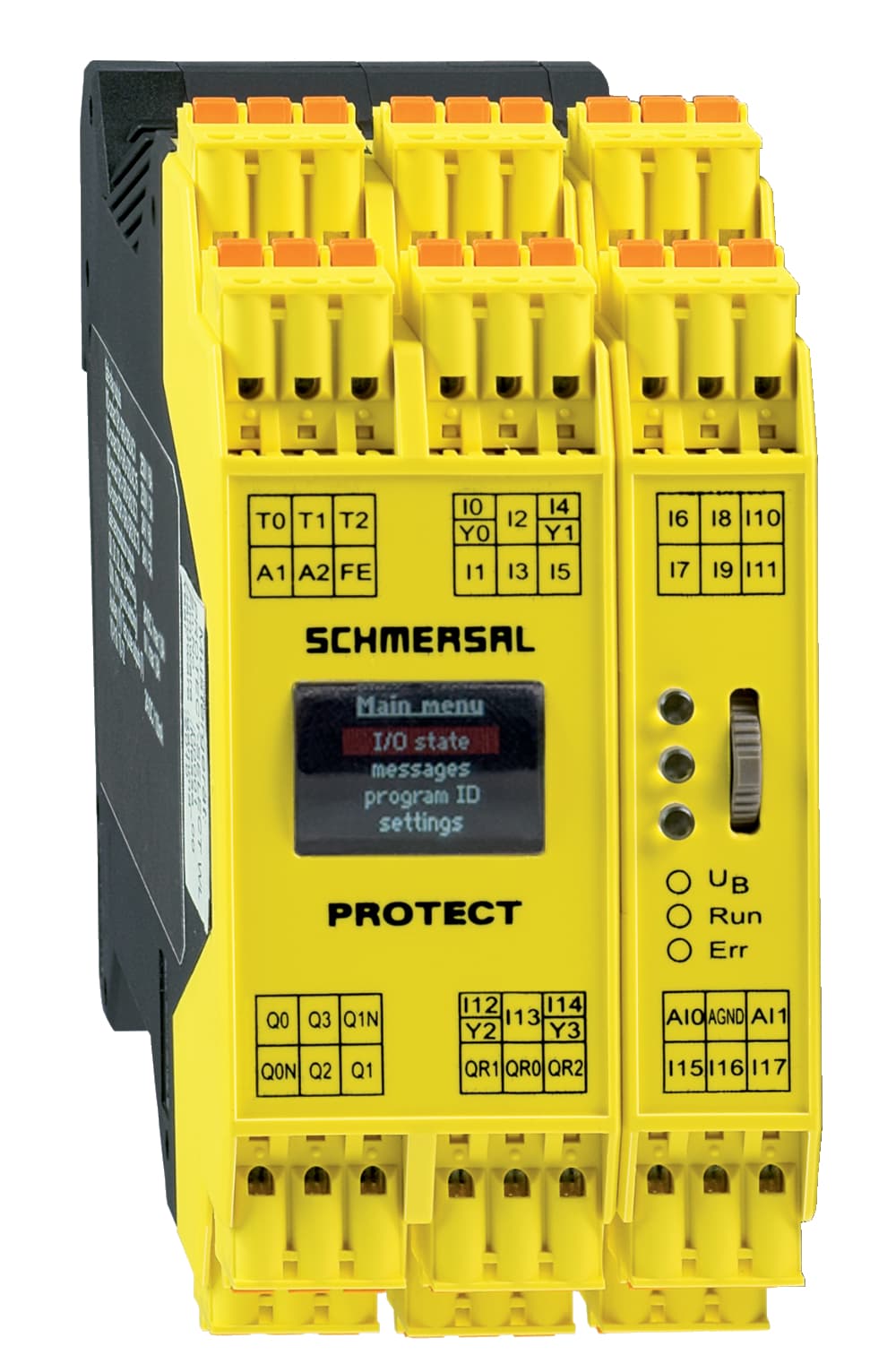

PROTECT-SELECT-CC Schmersal Electronic Components
Part#:PROTECT-SELECT-CC
Manufacturer:Schmersal
Alt. Part#:101215377
Product Lifecycle:Active
Get a quick Quote!
Safety-related tactile sensor; Simple and flexible parameter setting; No programming skills required; 18 safe inputs for the redundant inquiry of all common safety sensors; 4 safety semi-conductor outputs; 2 safety relay outputs; 4 optional signalling out
About the manufacturer: Schmersal is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.
Check out the PROTECT-SELECT-CC Schmersal price in the box on the right side or send a quick quote.
Product Details
- Short circuit detection Yes
- Automatic reset function Yes
- Integral System Diagnostics, status Yes
- Cable section, maximum 2.5 mm²
- Number of fail-safe digital outputs 4
- Ambient temperature, minimum -25 °C
- Overvoltage category III
- No-load supply current I0 500 mA
- Gross weight 300 g
- Earth connection detection Yes
- Enclosure material Polyamide / V0
- Removable Terminals Yes
- Number of fail-safe analogue inputs 2
- Number of signalling outputs 4
- Feedback circuit Yes
- Standards EN ISO 13849-1, IEC 61508, EN 60947-5-1
- Short-circuit recognition Yes
- Number of relay outputs (1-channel) 2
- Terminal designations IEC 61131-2, IEC/EN 60947-1
- Depth 118 mm
- Relative humidity, minimum 15 %
- Degree of pollution to VDE 0100 2
- Required rated short-circuit current to EN 60947-5-1 1,000 A
- Switching thresholds -3 V … 2 V (LOW), 18 V … 28.8 V
- Voltage, Utilisation category DC1 24 VDC
- Climatic stress EN 60068-2-1, EN 60068-2-2, EN 61496
- Reset edge detection Yes
- Number of pulse outputs (test pulse output) 3
- Mounting Snaps onto standard DIN rail to EN 60715
- Number of digital fail-safe in-/outputs 4
- Cable section, minimum 0.25 mm²
- Width 52.5 mm
- Storage and transport temperature, minimum -25 °C
- Degree of protection IP20
- Resistance to vibrations to EN 60068-2-6 10 … 57 Hz, amplitude 0.75 mm
- Operating voltage, maximum 26.4 VDC
- Rated operating current (safety outputs) 700 mA
- Voltage, Utilisation category DC13 24 VDC
- Start input Yes
- Terminal (mechanical) Removable cage terminals
- Mechanical life, minimum 10,000,000 Operations
- Height 100 mm
- Relative humidity, maximum 90 %
- Current, Utilisation category DC1 4 A
- Operating voltage 24 V
- Current leakage Ir 2 mA
- Current, Utilisation category AC-15 3 A
- Switching frequency, maximum 0.1 Hz
- EMC rating EMC-Directive
- Ambient temperature, maximum +55 °C
- Restistance to shock 30 g / 11 ms
- Material of the contacts, electrical Tin
- Integrated Display, Supply Voltage Yes
- Note (Relative humidity) non-condensing
- Current, Utilisation category DC13 4 A
- Versions Limited short-circuit protection, p-type
- Terminal Connector rigid or flexible
- Voltage, Utilisation category AC15 230 VAC
- Storage and transport temperature, maximum +75 °C
- Current consumption at 24V 6 mA
- Start-up test Yes
- Voltage type DC (direct current)
- Current, Utilisation category AC-1 4 A
- Wire breakage detection Yes
- Number of digital fail-safe inputs 14
- Degree of protection of the mounting space IP54
- Current consumption at 24V, maximum 500 mA
- Operating voltage, minimum 21.6 VDC
- Voltage, Utilisation category AC1 250 VAC
- Operating current 100 mA
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents PROTECT-SELECT-CC Specs
1-year warranty
