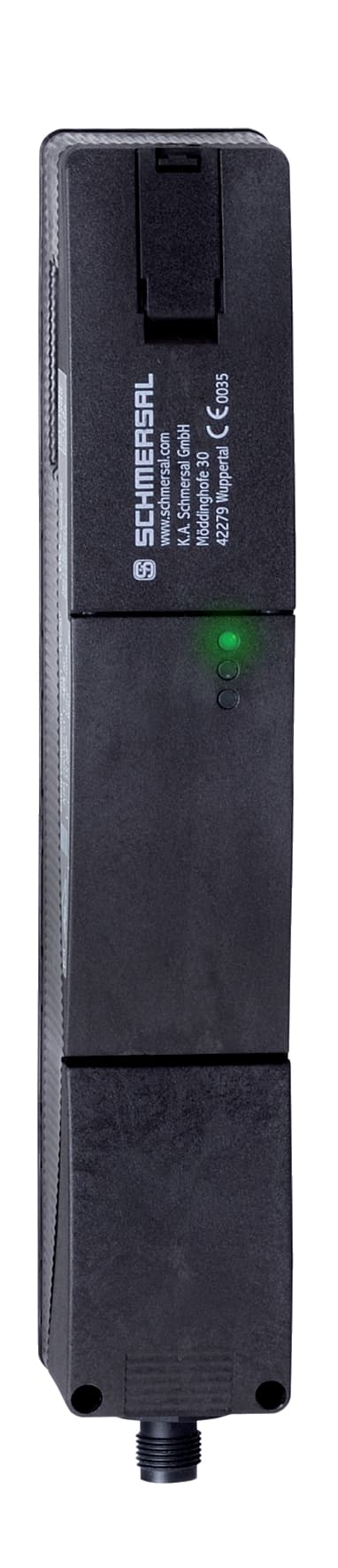

AZM 200 BZ ST-T-AS P Schmersal Safety Switches
Part#:AZM 200 BZ ST-T-AS P
Manufacturer:Schmersal
Alt. Part#:101194499
Product Lifecycle:Active
Get a quick Quote!
AS interface safety at work (archive); Safety switches; Solenoid supply 24 VDC (Aux); Combined monitoring of actuator and solenoid interlock; Solenoid interlock; Thermoplastic enclosure; High holding force 2000; 40 mm x 244 mm x 50 mm; Interlock with prot
About the manufacturer: Schmersal is one of the manufacturers that offers Safety Switches that you can order at marketplace.quotebeam.com. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.
Check out the AZM 200 BZ ST-T-AS P Schmersal price in the box on the right side or send a quick quote.
Product Details
- Coding level according to ISO 14119 Low
- Power to unlock Yes
- Height of sensor 244 mm
- Relative humidity, minimum 30 %
- Degree of pollution to VDE 0100 3
- AS-i, IO-Code 0x7
- AS-i Outputs, DO 3 No Function
- AS-i Input module address 0
- Rated impulse withstand voltage Uimp 0.8 kV
- AS-i Specification Safety-Slave
- AS-i Outputs, DO 2 No Function
- Note (AS-i Parameter bits) Set the parameter outputs to "1111" (0xF), FID: periphery error
- Note (AS-i Input module address) Preset to address 0, can be changed through AS-interface bus master or hand-held programming device
- general information Universal coding
- Actuator and interlock combined monitored Yes
- Degree of protection IP67 to EN 60529
- Restistance to shock 30 g / 11 ms
- AS-i Operating voltage AS-i maximum 31.6 VDC
- AS-i, ID-Code 0xB
- AS-i Parameter bits, P0 Safety guard and actuator detected
- AS-i Parameter bits, P1 Solenoid interlock locked
- Enclosure material Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
- Clamping force 2,000 N
- Terminal Connector Connector plug M12, 4-pole, (A-coding)
- Storage and transport temperature, maximum +85 °C
- AS-i, ID-Code1 0xF
- AS-i Parameter bits, P2 Magnet voltage in tolerance range
- Time to readiness, maximum 4,000 ms
- Integral System Diagnostics, status Yes
- Actuating speed, maximum 2 m/s
- Ambient temperature, maximum +60 °C
- Resistance to vibrations to EN 60068-2-6 10 Hz ... 150 Hz, amplitude 0.35 mm
- AS-i Current consumption, maximum 100 mA
- AS-i, ID-Code2 0xE
- Reaction time, maximum 60 ms
- Number of actuating directions 1
- Width of sensor 40 mm
- Note (Relative humidity) non-condensing
- AS-i Operating voltage, minimum 26.5 VDC
- AS-i Outputs, DO 1 No Function
- AS-i Parameter bits, P3 Error
- Gross weight 518 g
- Duration of risk, maximum 120 ms
- Latching force 30 N
- Storage and transport temperature, minimum -25 °C
- Rated insulation voltage Ui 32 VDC
- Note (AS-i Operating voltage) Protection against polarity reversal
- AS-i Input, Channel 2 Data bits DI 2 / DI 3 = dynamic code transmission
- Active principle electromechanical
- Tightening torque of the screw, maximum 1 Nm
- Length of sensor 50 mm
- Relative humidity, maximum 95 %
- Overvoltage category III
- AS-i Profile S-7.B.F.E
- AS-i Outputs, DO 0 Solenoid control
- Operating current 500 mA
- Standards IEC 61508, IEC 60947-5-3, EN 60947-5-1
- Mechanical life, minimum 1,000,000 Operations
- Ambient temperature, minimum -25 °C
- Protection rating II
- AS-i Version V 2.1
- AS-i Input, Channel 1 Data bits DI 0 / DI 1 = dynamic code transmission
- Rated operating voltage 24 VDC -15% / +10% (stabilised PELV)
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents AZM 200 BZ ST-T-AS P Specs
