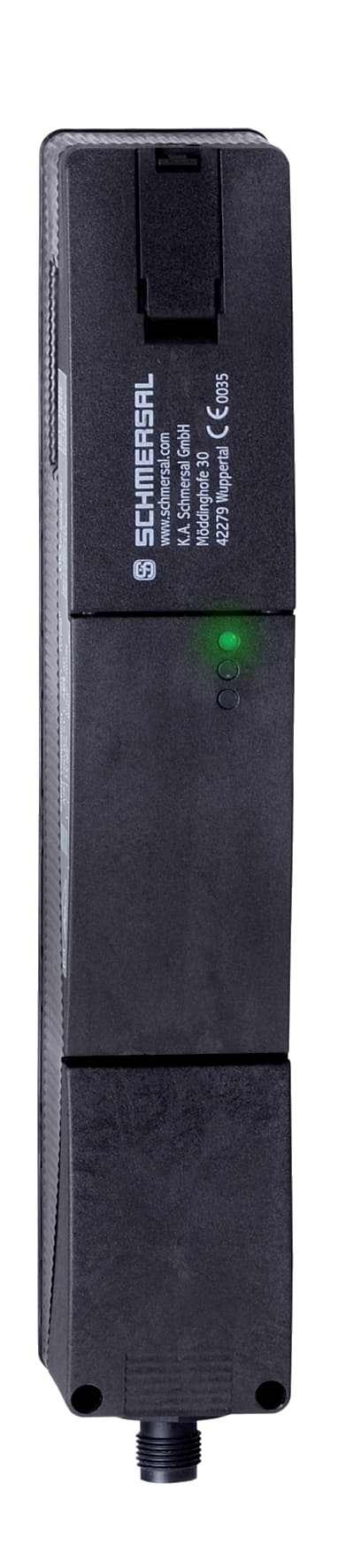

AZM 200 BZ ST-T-AS AP Schmersal Safety Switches

Product Details

• Duration of risk, maximum
  120 ms
• Standards
  IEC 61508, IEC 60947-5-3, EN 60947-5-1
• Enclosure material
  Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
• Time to readiness, maximum
  4,000 ms
• Actuating speed, maximum
  2 m/s
• Storage and transport temperature, minimum
  -25 °C
• Rated impulse withstand voltage Uimp
  0.8 kV
• AS-i Current consumption, maximum
  100 mA
• AS-i Input, Channel 1
  Data bits DI 0 / DI 1 = dynamic code transmission
• AS-i Parameter bits, P2
  Magnet voltage in tolerance range
• Reaction time, maximum
  60 ms
• Integral System Diagnostics, status
  Yes
• Height of sensor
  244 mm
• Relative humidity, minimum
  30 %
• Overvoltage category
  III
• AS-i, IO-Code
  0x7
• AS-i Parameter bits, P0
  Safety guard and actuator detected
• Gross weight
  520 g
• Actuator and interlock combined monitored
  Yes
• Width of sensor
  40 mm
Resistance to vibrations to EN 60068-2-6
10 Hz ... 150 Hz, amplitude 0.35 mm
Degree of pollution to VDE 0100
3
AS-i Profile
S-7.B.F.E
AS-i Outputs, DO 2
No Function
Note (AS-i Input module address)
Preset to address 0, can be changed through AS-interface bus master or hand-held programming device
Active principle
electromechanical
Tightening torque of the screw, maximum
1 Nm
Degree of protection
IP67 to EN 60529
Note (Relative humidity)
non-condensing
Note (AS-i Operating voltage)
Protection against polarity reversal
AS-i, ID-Code2
0xE
AS-i Parameter bits, P3
Error
Coding level according to ISO 14119
Low
Power to lock
Yes
Latching force
30 N
Storage and transport temperature, maximum
+85 °C
Restistance to shock
30 g / 11 ms
AS-i Specification
Safety-Slave
AS-i Outputs, DO 0
Solenoid control
Rated operating voltage
24 VDC -15% / +10% (stabilised PELV)
general information
Universal coding
Number of actuating directions
1
Length of sensor
50 mm
Ambient temperature, minimum
-25 °C
Protection rating
II
AS-i Version
V 2.1
AS-i Outputs, DO 3
No Function
Note (AS-i Parameter bits)
Set the parameter outputs to "1111" (0xF), FID: periphery error
Clamping force
2,000 N
Terminal Connector
Connector plug M12, 4-pole, (A-coding)
Rated insulation voltage Ui
32 VDC
AS-i Operating voltage, minimum
26.5 VDC
AS-i, ID-Code
0xB
AS-i Parameter bits, P1
Solenoid interlock locked
Operating current
500 mA
Mechanical life, minimum
1,000,000 Operations
Ambient temperature, maximum
+60 °C
Relative humidity, maximum
95 %
AS-i Operating voltage AS-i maximum
31.6 VDC
AS-i, ID-Code1
0xF
AS-i Outputs, DO 1
No Function
AS-i Input, Channel 2
Data bits DI 2 / DI 3 = dynamic code transmission
AS-i Input module address
0
