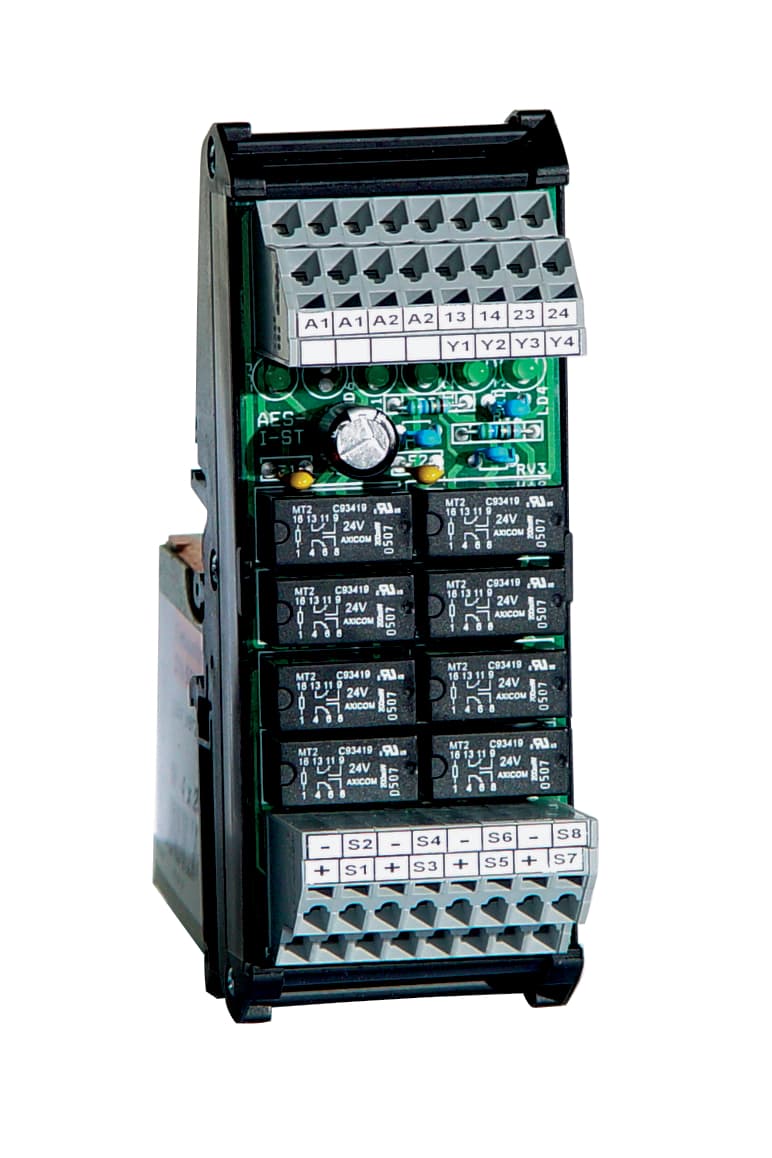

PROTECT-IE-02-SK Schmersal Electronic Components
Part#:PROTECT-IE-02-SK
Manufacturer:Schmersal
Alt. Part#:101189096
Product Lifecycle:Active
Get a quick Quote!
Input expanders; PROTECT; Input for up to 4 sensors per interface e.g.: magnetic safety switches type BNS, emergency stop devices, interlocking devices and others; 2 safety contacts
About the manufacturer: Schmersal is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.
Check out the PROTECT-IE-02-SK Schmersal price in the box on the right side or send a quick quote.
Product Details
- Automatic reset function Yes
- Removable Terminals Yes
- Standards IEC 61508, IEC/EN 60204-1, EN 60947-5-1
- Cable section, maximum 1.5 mm²
- Resistance to vibrations to EN 60068-2-6 10...55 Hz, Amplitude 0.35 mm, ± 15 %
- Rated AC voltage for controls at DC minimum 20.4 VDC
- Switching capacity, minimum 10 mA
- Enclosure material Glass-fibre reinforced thermoplastic, ventilated
- Mechanical life, minimum 10,000,000 Operations
- Height 126 mm
- Ambient temperature, maximum +55 °C
- Contact resistance, maximum 0.1 Ω
- Input signal, HIGH Signal 1 19 - 28,8 VDC
- EMC rating EMC-Directive
- Electronic Fuse Yes
- Number of safety contacts 2
- Width 48 mm
- Storage and transport temperature, minimum -40 °C
- Rated operating voltage 24 VDC -15% / +20%, residual ripple max. 10 %
- Voltage, Utilisation category DC13 24 VDC
- Current, Utilisation category DC12 0.1 A
- Degree of protection of clips or terminals IP20
- Rated impulse withstand voltage Uimp 0.8 kV
- Drop-out delay in case of emergency stop, maximum 20 ms
- Current, Utilisation category DC13 2 A
- Gross weight 140 g
- Number of auxiliary contacts 1
- Cable section, minimum 0.14 mm²
- Storage and transport temperature, maximum +85 °C
- Rated control voltage at DC, maximum 28.8 VDC
- Voltage, Utilisation category DC12 24 VDC
- Short-circuit recognition Yes
- Earth connection detection Yes
- Degree of protection of the mounting space IP20
- Restistance to shock 30 g / 11 ms
- Electrical power consumption 1.7 W
- Conduction resistance, maximum 40 Ω
- Wire breakage detection Yes
- Integral System Diagnostics, general Yes
- Terminal designations IEC/EN 60947-1
- Ambient temperature, minimum -25 °C
- Input resistance at Ue 2,900 Ω
- Stop-Category 0
- Number of openers 2
- Terminal Connector Screw connection, plug-in
- Depth 61 mm
- Degree of pollution to VDE 0110 2
- Pull-in delay at automatic start, maximum 20 ms
- Input signal, LOW Signal 0 0 - 1 VDC
- Climatic stress EN 60068-2-78
- Number of LEDs 5
- Mounting Snaps onto standard DIN rail to EN 60715
- Degree of protection of the enclosure IP20
- Overvoltage category III
- Note (Contact resistance) in new state
- Switching capacity, maximum 24 VDC
