NDTSW Schmersal Pushbuttons
Part#:NDTSW
Manufacturer:Schmersal
Alt. Part#:101163559
Product Lifecycle:Active
Get a quick Quote!

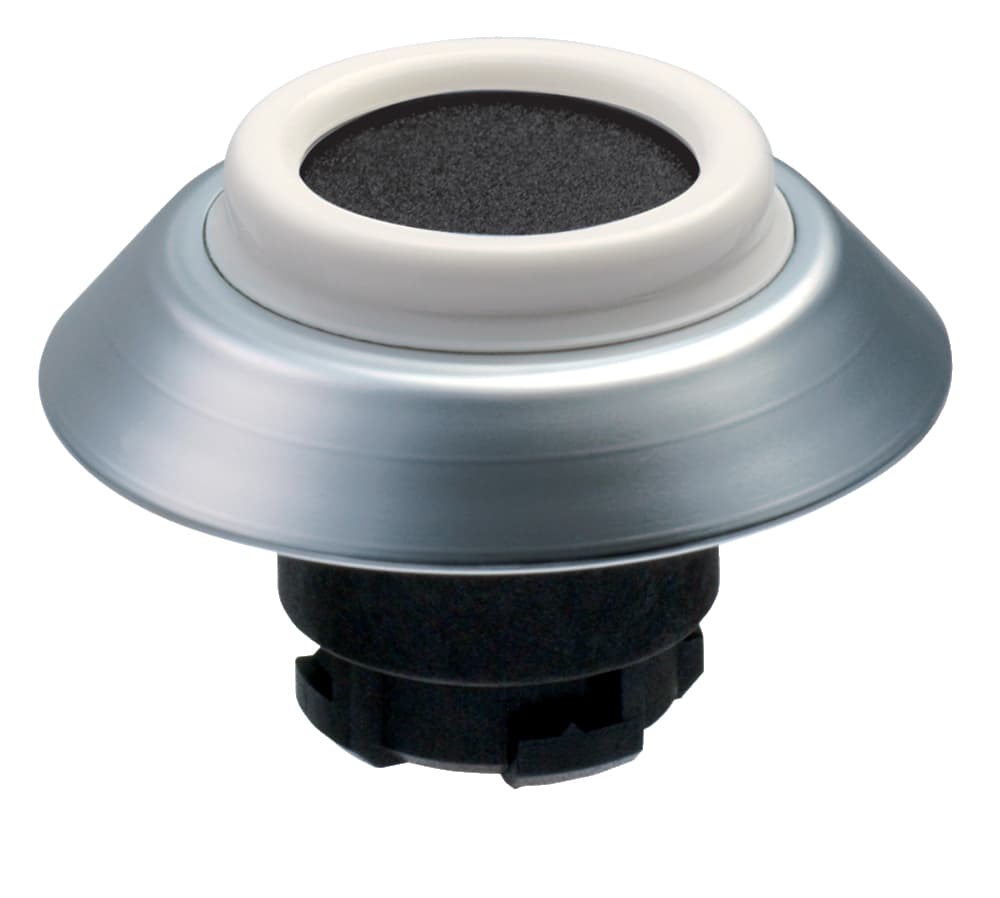

NDTSW Schmersal - Pushbutton from N Series (IP69K)
About the manufacturer: Schmersal is one of the manufacturers that offers Pushbuttons that you can order at marketplace.quotebeam.com. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.
Check out the NDTSW Schmersal price in the box on the right side or send a quick quote.
Product Details
- Material of the operators ABS
- Thickness, of the front panel, minimum 1.5 mm
- Colour of the bellows White
- Fully insulated Yes
- Colour of the operating element Black
- Actuating stroke 5 mm
- Diameter hole, with tolerance indication 22.3 + 0.4 mm
- Material of the front ring ABS, chrome-plated
- Tightening torque of the screw 0.6 Nm
- Thickness of the front panel, maximum 6 mm
- Sealing type Membrane, Lip gaskets
- Design Round
- Height 11 mm
- Ambient temperature, minimum -25 °C
- Standards EN 60947-5-1, IEC/EN 60947-1
- Probing possible Yes
- diameters for the actuating heads 44.5 mm
- Ambient temperature, maximum +80 °C
- Diameter hole 22.3 mm
- Colour of the front ring Silver
- Mounting flange Yes
- Unlocking without
- Spacing 50 x 50 mm
- Versions Embeddable button - Front plate mounting
- Gross weight 25 g
- Mounting Mounting flange EFM
- Degree of protection IP67, IP69K
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
NDTSW Description
NDTSW Schmersal - Pushbutton from N Series (IP69K)
Related documents NDTSW Specs
