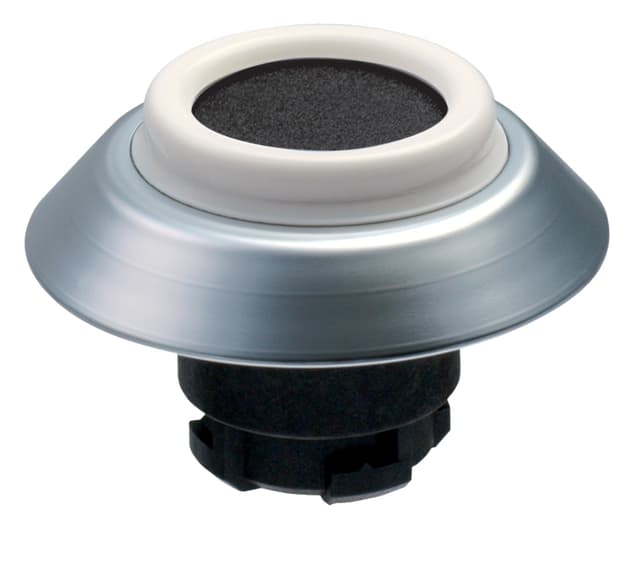

NDTSW/101D Schmersal Pushbuttons
Part#:NDTSW/101D
Manufacturer:Schmersal
Alt. Part#:101189550
Product Lifecycle:Active
Get a quick Quote!
Command and signalling devices; "N" program
About the manufacturer: Schmersal is one of the manufacturers that offers Pushbuttons that you can order at marketplace.quotebeam.com. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.
Check out the NDTSW/101D Schmersal price in the box on the right side or send a quick quote.
Product Details
- Sealing type Membrane, Lip gaskets
- Mounting Mounting flange EFM
- Degree of protection IP67, IP69K
- Colour of the bellows White
- Actuating stroke 5 mm
- Diameter hole, with tolerance indication 22.3 + 0.4 mm
- Standards EN 60947-5-1, IEC/EN 60947-1
- Design Round
- Tightening torque of the screw 0.6 Nm
- Ambient temperature, minimum -25 °C
- Material of the front ring ABS, chrome-plated
- Gross weight 25 g
- diameters for the actuating heads 44.5 mm
- Spacing 50 x 50 mm
- Colour of the operating element Black
- Probing possible Yes
- Diameter hole 22.3 mm
- Colour of the front ring Silver
- Material of the operators ABS
- Mounting flange Yes
- Fully insulated Yes
- Height 11 mm
- Thickness, of the front panel, minimum 1.5 mm
- Ambient temperature, maximum +80 °C
- Versions Embeddable button - Front plate mounting
- Unlocking without
- Thickness of the front panel, maximum 6 mm
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents NDTSW/101D Specs
1-year warranty
Get a quick Quote!
Request a quote, and we will send you price and availability within minutes.
Select Qty:
Average response time: 11 minutes
By purchasing this item, you agree to the Terms & Conditions
Quotebeam is NOT an authorized distributor of Schmersal
Shipping and Delivery Worldwide
calculate costs and time
Secure Payment Processing
with money back guarantee
1 year warranty
on all parts
Responsive Customer Support
we're here to help!
Need more details?
Feel free to chat with us or check our FAQ
Schmersal Disclaimer:
The product is unused surplus. Quotebeam is not an authorized surplus dealer or affiliate for the Manufacturer of this product. Products may feature older date codes or be from an earlier series than what is currently available from the manufacturer or authorized dealers. Because Quotebeam is not an authorized distributor of this product, the Original Manufacturer’s warranty does not apply. While many Schmersal Controls products will have firmware already installed, Quotebeam makes no representation as to whether a Controls product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. Quotebeam also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Schmersal, its distributors, or any other source. Quotebeam also makes no representations as to your right to install any such firmware on the product. Quotebeam will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.
