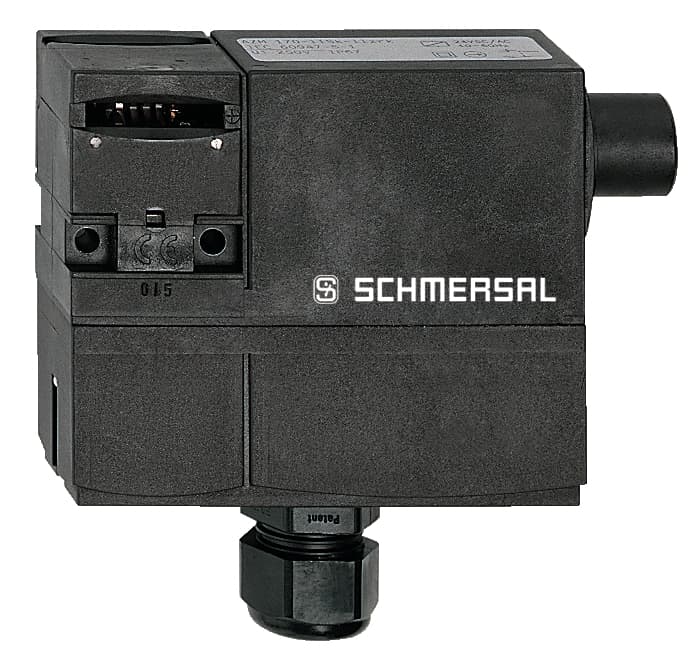

AZM 170SK-12/00ZRK-2197 24VAC/DC Schmersal Safety Switches
Part#:AZM 170SK-12/00ZRK-2197 24VAC/DC
Manufacturer:Schmersal
Alt. Part#:101183013
Product Lifecycle:Active
Get a quick Quote!
Solenoid interlocks; 1 Cable entry M 20 x 1.5; Manual release from side; Cut clamp termination; Thermoplastic enclosure; Double-insulated; Compact design; 90 mm x 84 mm x 30 mm; Interlock with protection against incorrect locking.; Long life; High holding
About the manufacturer: Schmersal is one of the manufacturers that offers Safety Switches that you can order at marketplace.quotebeam.com. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.
Check out the AZM 170SK-12/00ZRK-2197 24VAC/DC Schmersal price in the box on the right side or send a quick quote.
Product Details
- Active principle electromechanical
- Manual release Yes
- Actuating speed, maximum 2 m/s
- Ambient temperature, minimum -25 °C
- Switching element NO contact, NC contact
- Enclosure material Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
- Number of safety contacts 2
- Cable section, minimum 1 x 0.25 mm²
- Rated impulse withstand voltage Uimp 4 kV
- Switching principle Creep circuit element
- Gross weight 357 g
- Positive break force, minimum 8.5 N
- Degree of protection IP67 to EN 60529
- Note (Switching element) Change-over contact with double break, type Zb or 2 NC contacts, with galvanically separated contact bridges
- Coding level according to ISO 14119 Low
- Number of actuating directions 2
- Latching force 30 N
- Height of sensor 100.5 mm
- Rated control voltage 24 VAC/DC
- Material of the contacts, electrical Silver
- positive break travel 11 mm
- Width of sensor 108 mm
- Required rated short-circuit current to EN 60947-5-1 1,000 A
- Standards EN 60947-5-1, BG-GS-ET-19
- Mechanical life, minimum 1,000,000 Operations
- Rated insulation voltage Ui 250 V
- Cable section, maximum 1 x 1.5 mm², flexible
- Switching frequency 1,000 /h
- Power to unlock Yes
- Clamping force in accordance with ISO14119 Fzh 1,000 N
- Ambient temperature, maximum +60 °C
- Electrical power consumption, maximum 10 W
- Number of auxiliary contacts 1
- Terminal Connector Screw terminals
- Length of sensor 30 mm
- Thermal test current 6 A
- Current, Utilisation category DC13 2 A
- Voltage, Utilisation category DC13 24 VDC
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents AZM 170SK-12/00ZRK-2197 24VAC/DC Specs
1-year warranty
