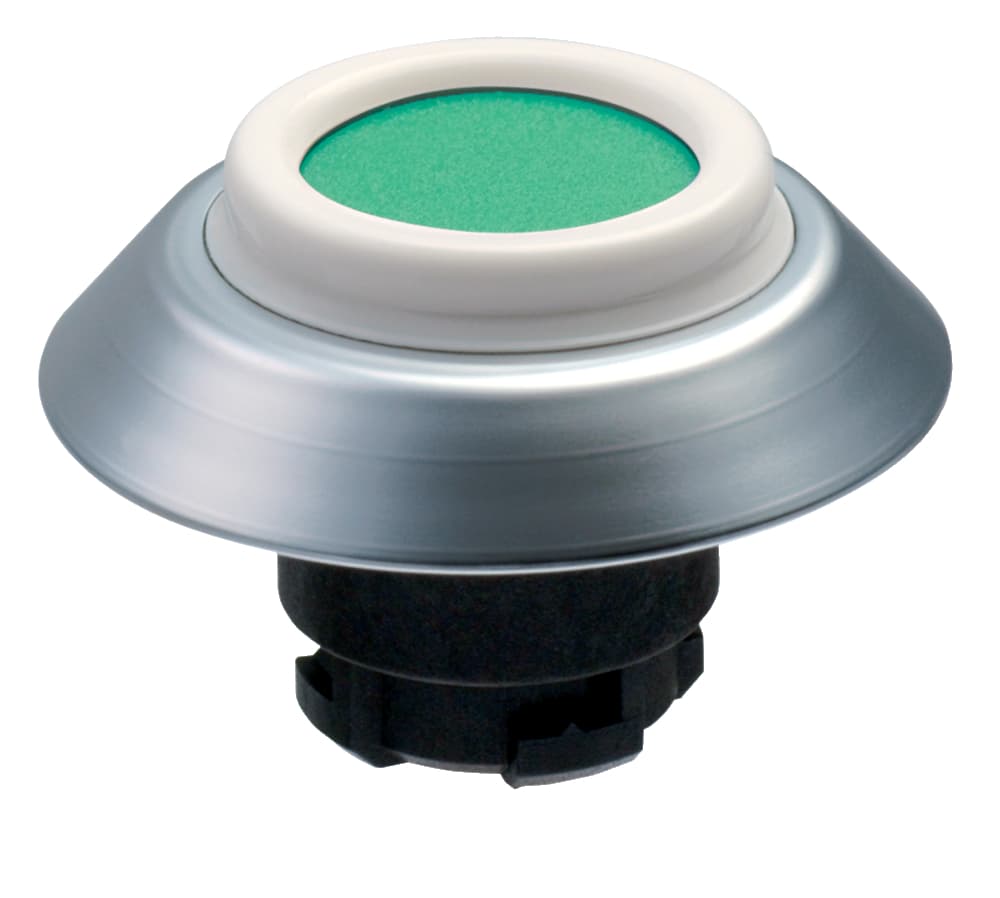

NDTSW/507D Schmersal Pushbuttons
Part#:NDTSW/507D
Manufacturer:Schmersal
Alt. Part#:103000595
Product Lifecycle:Active
Get a quick Quote!
Command and signalling devices; "N" program
About the manufacturer: Schmersal is one of the manufacturers that offers Pushbuttons that you can order at marketplace.quotebeam.com. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.
Check out the NDTSW/507D Schmersal price in the box on the right side or send a quick quote.
Product Details
- Standards EN 60947-5-1, IEC/EN 60947-1
- Gross weight 25 g
- Height 11 mm
- Ambient temperature, maximum +80 °C
- Material of the operators ABS
- Colour of the front ring Silver
- Diameter hole 22.3 mm
- Ambient temperature, minimum -25 °C
- Versions Embeddable button - Front plate mounting
- Probing possible Yes
- diameters for the actuating heads 44.5 mm
- Colour of the operating element Black
- Fully insulated Yes
- Diameter hole, with tolerance indication 22.3 + 0.4 mm
- Design Round
- Material of the front ring ABS, chrome-plated
- Tightening torque of the screw 0.6 Nm
- Degree of protection IP67, IP69K
- Mounting flange Yes
- Mounting Mounting flange EFM
- Spacing 50 x 50 mm
- Sealing type Membrane, Lip gaskets
- Colour of the bellows White
- Unlocking without
- Actuating stroke 5 mm
- Thickness of the front panel, maximum 6 mm
- Thickness, of the front panel, minimum 1.5 mm
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents NDTSW/507D Specs
1-year warranty
