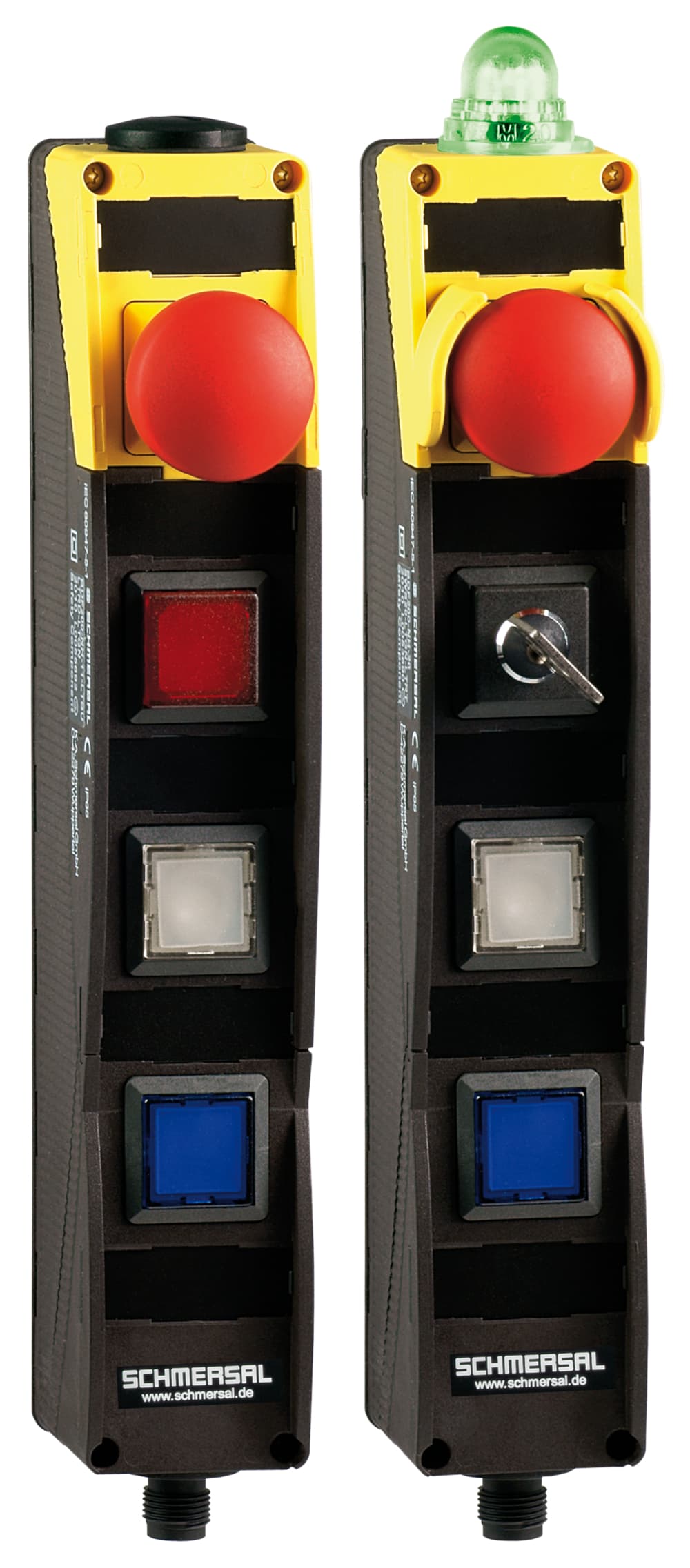

BDF200-ST1-AS-NH-SWS20S1-LTYE-DTWH-G24 Schmersal Electronic Components

Product Details

• Indicator lamp
  Yes
• Depth
  252.5 mm
• Rated impulse withstand voltage Uimp
  0.8 kV
• AS-i Current consumption, maximum
  150 mA
• AS-i Output, DO 2 (Safety-Slave)
  No Function
• AS-i Input, DI 3 (A/B Slave)
  Command device Position 2
• AS-i Output, DO 1 (A/B Slave)
  Illuminated signal position 3
• Mechanical life, Emergency-Stop button
  100,000 Operations
• Mechanical life, Command devices
  1,000,000 Operations
• Degree of protection
  IP65
• Rated insulation voltage Ui
  32 VDC
• Note (AS-i Parameter bits)
  Set the parameter outputs to "1111" (0xF), FID: periphery error
• AS-i Output, DO 3 (Safety-Slave)
  No Function
• AS-i Output, DO 3 (A/B Slave)
  No Function
• Enclosure material
  Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
• Ambient temperature, minimum
  -25 °C
• Degree of pollution to IEC/EN 60664-1
  3
• AS-i Input, Channel 2 (Safety-Slave)
  Data bits DI 2 / DI 3 = dynamic code transmission
• AS-i Input, DI 0 (A/B Slave)
  Command device Position 4
• Note
  Both AS-i slaves can be enabled and disabled through the integrated DIP switch. The addressing must take place via the M12 connector.
Standards
IEC 61508, EN 60947-5-1, EN ISO 13850
Height
69 mm
Storage and transport temperature, maximum
+85 °C
AS-i Version (Safety-Slave)
V 3.0
AS-i AS-i Parameter bits (Safety-Slave), P0 ... P3
No function
AS-i Output, DO 0 (A/B Slave)
Illuminated signal position 4
Reaction time, maximum
100 ms
Ambient temperature, maximum
+65 °C
AS-i Operating voltage AS-i maximum
31.6 VDC
AS-i Profile (Safety-Slave)
S-7.B.F.F
AS-i Version (A/B Slave)
V 3.0
AS-i AS-i Parameter bits (A/B Slave), P0 ... P3
No function
Gross weight
280 g
Terminal Connector
Connector plug M12, 4-pole, (A-coding)
Restistance to shock
15 g / 11 ms
Note (AS-i Operating voltage)
Protection against polarity reversal
AS-i Output, DO 1 (Safety-Slave)
Indicator lamp G24 green
AS-i Profile (A/B Slave)
S-7.A.7.F
AS-i Output, DO 2 (A/B Slave)
Illuminated signal position 2
Climatic stress
DIN EN 60068
Storage and transport temperature, minimum
-25 °C
Protection rating
II
Overvoltage category
III
AS-i Output, DO 0 (Safety-Slave)
Indicator lamp G24 red
AS-i Input, DI 1 (A/B Slave)
Command device Position 3
AS-i Input module address
0
Positions used, position 1
Emergency stop pushbutton
Width
40 mm
Resistance to vibrations to EN 60068-2-6
10 … 150 Hz, amplitude 0.35 mm / 5 g
AS-i Operating voltage, minimum
18 VDC
AS-i Input, Channel 1 (Safety-Slave)
Data bits DI 0 / DI 1 = dynamic code transmission
AS-i Input, DI 2 (A/B Slave)
Command device Position 2
Note (AS-i Input module address)
Preset to address 0, can be changed through AS-interface bus master or hand-held programming device
