BDF200-NHK-11-LT-LT-LT-2875/2920 Schmersal Electronic Components
Part#:BDF200-NHK-11-LT-LT-LT-2875/2920
Manufacturer:Schmersal
Alt. Part#:103026143
Product Lifecycle:Active
Get a quick Quote!

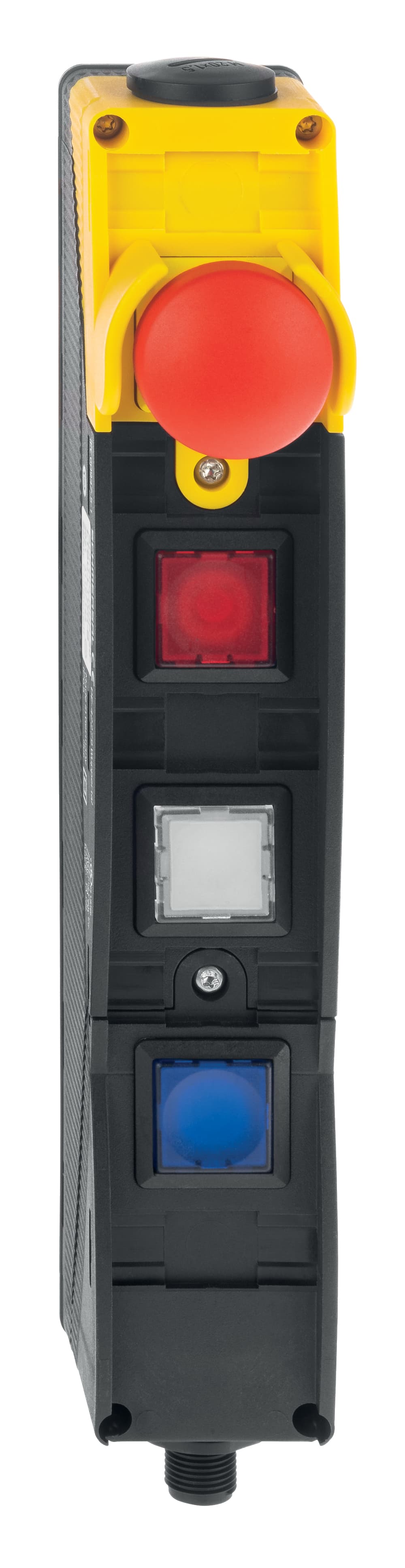

Control panels; slender shock-proof thermoplastic enclosure; to be installed at an ergonomic favourable position; to be fitted to commercial-off-the-shelf aluminium profiles; Thermoplastic enclosure; slender shock-proof enclosure; large range of Illuminat
About the manufacturer: Schmersal is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.
Check out the BDF200-NHK-11-LT-LT-LT-2875/2920 Schmersal price in the box on the right side or send a quick quote.
Product Details
- Emergency-Stop button Yes
- Standards IEC 60947-5-1, EN ISO 13849-1, IEC 60947-5-5
- Terminal (mechanical) Removable screw terminals
- Front plate mounting No
- Mechanical life, Emergency-Stop button 100,000 Operations
- Mechanical life, Command devices 1,000,000 Operations
- Cable cross-section of the cable glands, maximum 13 mm
- Wire cross-section 0.5 mm2
- Ambient temperature, maximum +65 °C
- Degree of protection IP65
- Restistance to shock 100 g / 6 ms
- Degree of pollution to VDE 0100 3
- Position of the cable gland bottom
- Mounting interior mounting holes
- Gross weight 280 g
- Enclosure material Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
- Positions used, position 2 Illuminated pushbutton, color exchangeable
- Positions used, position 3 Illuminated pushbutton; color exchangeable
- Removable Terminals Yes
- Width 40 mm
- Cable cross-section of the cable glands, minimum 6 mm
- Height 69 mm
- Depth 220 mm
- Rated insulation voltage Ui 250 V
- Overvoltage category III
- Rated operating voltage 24 V
- Positions used, position 4 Illuminated pushbutton, color exchangeable
- Positions used, position 1 Emergency stop, with protective collar
- Safety functions Yes
- Type of the fixing screws DESIGN_MOUNTING_SCREWS11111111111111111112
- Cable entry M12 (A-coding)
- Length x Width x Height Depth: 233.5 - 252.5 mm (without and with indicator lamp)
- Ambient temperature, minimum -25 °C
- Rated impulse withstand voltage Uimp 0.8 kV
- Suitable for low-voltages ≥ 5 V / ≥ 1 mA
- Utilisation category DC-13 1 A
- Switching principle Creep circuit element
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents BDF200-NHK-11-LT-LT-LT-2875/2920 Specs
