BDF200-FB-B-B-LT-LT-2875 Schmersal Electronic Components
Part#:BDF200-FB-B-B-LT-LT-2875
Manufacturer:Schmersal
Alt. Part#:103040686
Product Lifecycle:Active
Get a quick Quote!

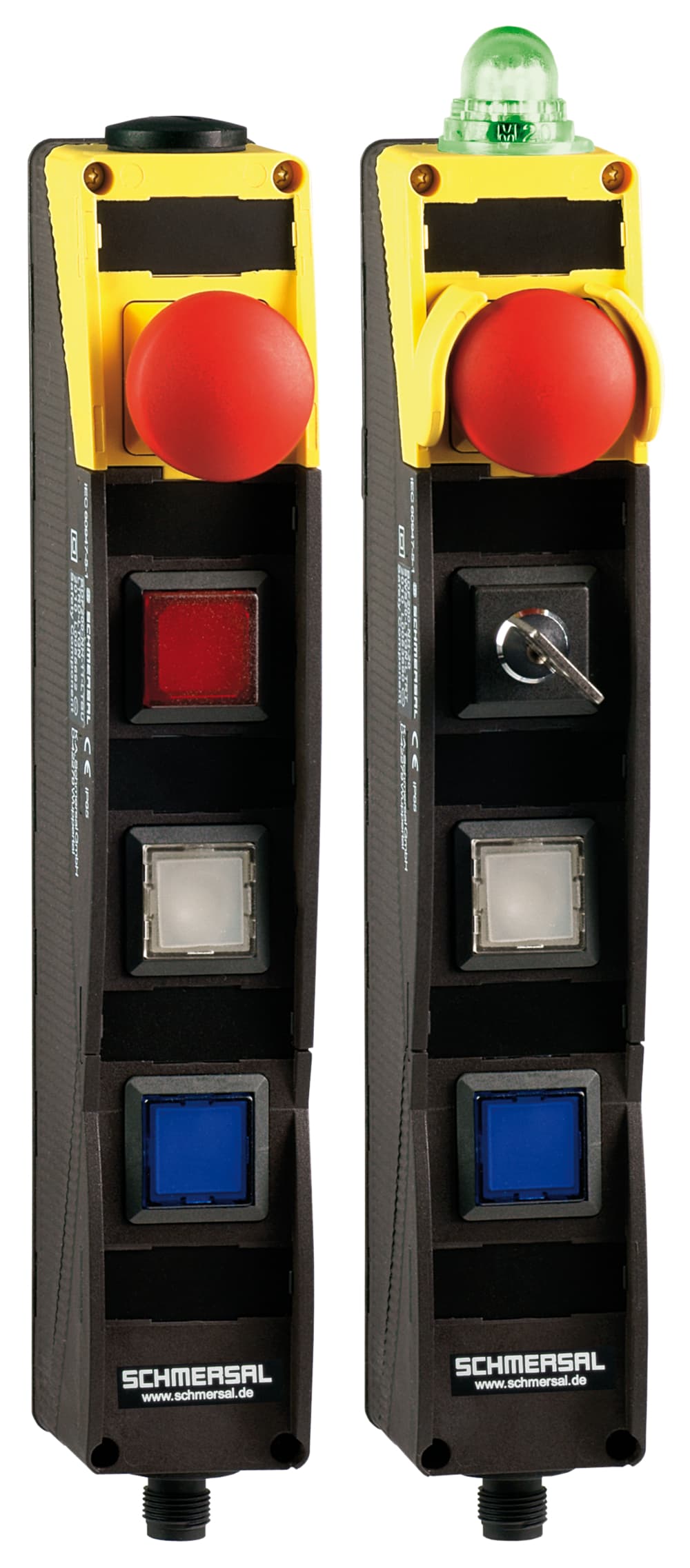

Control panels; integrated FB interface for connection to the Safety-Field-Box SFB; Pos 1: Blanking plug; Pos 2: Blanking plug; Pos 3: illuminated pushbutton 2875 with changeable colors; Pos 4: illuminated pushbutton 2875 with changeable colors; slender s
About the manufacturer: Schmersal is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.
Check out the BDF200-FB-B-B-LT-LT-2875 Schmersal price in the box on the right side or send a quick quote.
Product Details
- Duration of risk, maximum 100 ms
- Serial diagnostics No
- Length x Width x Height Depth: 233.5 - 252.5 mm (without and with indicator lamp)
- Rated impulse withstand voltage Uimp 0.8 kV
- Rated operating current (safety outputs) 250 mA
- Positions used, position 3 Illuminated pushbutton; color exchangeable
- Safety functions Yes
- Ambient temperature, maximum +65 °C
- Current consumption at 24V 5 mA
- Operating current 150 mA, 600 mA
- Reaction time, maximum 50 ms
- Indicator lamp No
- Height 69 mm
- Protection rating III
- No-load supply current I0 35 mA
- Current leakage Ir 0.5 mA
- Terminal (mechanical) Connector plug M12, 8-pole, A-coded
- Mechanical life, Emergency-Stop button 100,000 Operations
- Resistance to vibrations to EN 60068-2-6 10 … 150 Hz, amplitude 0.35 mm / 5 g
- Positions used, position 4 Illuminated pushbutton, color exchangeable
- Width 40 mm
- Storage and transport temperature, minimum -25 °C
- Degree of pollution to VDE 0100 3
- Required rated short-circuit current to EN 60947-5-1 100 A
- Enclosure material Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
- Field box interface YN_FIELDBOX_INTERFACE1
- Degree of protection IP64
- Restistance to shock 30 g / 11 ms
- Rated insulation voltage Ui 32 VDC
- Climatic stress IEC 60947-5-5
- Standards IEC 60947-5-1, EN ISO 13849-1, IEC 61508
- Ambient temperature, minimum -25 °C
- Overvoltage category III
- Gross weight 280 g
- Positions used, position 1 blanking plug
- Mechanical life, Command devices 1,000,000 Operations
- Utilisation category DC-13 0.25 A
- Inputs, Switching thresholds −3 V … 5 V (Low), 15 V … 30 V (High)
- Utilisation category DC-12 0.25 A
- Storage and transport temperature, maximum +85 °C
- Versions short-circuit proof, p-type
- Rated operating voltage 24 VDC −15 % / +10 %, (PELV to IEC 60204-1)
- Voltage drop Ud, maximum 1 V
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents BDF200-FB-B-B-LT-LT-2875 Specs
1-year warranty
