BDF200-ST1-AS-NH-B-LTBU-LTWH-G24 Schmersal Electronic Components
Part#:BDF200-ST1-AS-NH-B-LTBU-LTWH-G24
Manufacturer:Schmersal
Alt. Part#:103008054
Product Lifecycle:Active
Get a quick Quote!

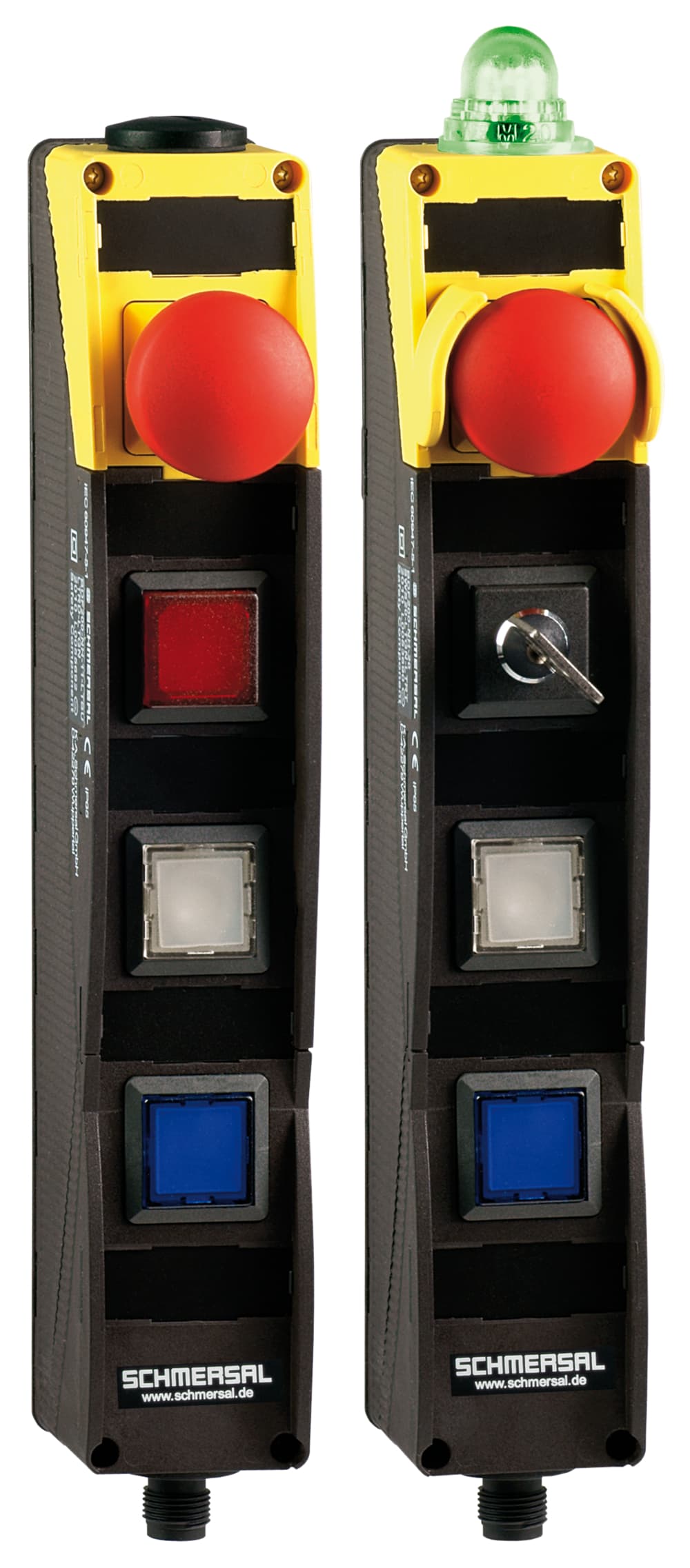

AS interface safety at work; Safety switchgear; Integrated AS-Interface; with connector plug M12 bottom; Pos 1: E-STOP; Pos 2: Blanking plug; Pos 3: BLUE illuminated pushbutton; Pos 4: WHITE illuminated pushbutton; Indicator lamp G24 on top; slender shock
About the manufacturer: Schmersal is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.
Check out the BDF200-ST1-AS-NH-B-LTBU-LTWH-G24 Schmersal price in the box on the right side or send a quick quote.
Product Details
- Standards IEC 61508, EN 60947-5-1, EN ISO 13850
- Width 40 mm
- Protection rating II
- AS-i Profile (Safety-Slave) S-7.B.F.F
- AS-i Profile (A/B Slave) S-7.A.7.F
- AS-i Output, DO 1 (A/B Slave) Illuminated signal position 3
- Positions used, position 4 Illuminated pushbutton, white
- Positions used, position 1 Emergency stop pushbutton
- Ambient temperature, minimum -25 °C
- Overvoltage category III
- AS-i Current consumption, maximum 150 mA
- AS-i AS-i Parameter bits (Safety-Slave), P0 ... P3 No function
- AS-i Output, DO 0 (A/B Slave) Illuminated signal position 4
- Gross weight 280 g
- Depth 252.5 mm
- Restistance to shock 15 g / 11 ms
- Note (AS-i Operating voltage) Protection against polarity reversal
- AS-i Output, DO 0 (Safety-Slave) Indicator lamp G24 red
- AS-i Input, DI 1 (A/B Slave) Command device Position 3
- AS-i Input module address 0
- Climatic stress DIN EN 60068
- Mechanical life, Emergency-Stop button 100,000 Operations
- Ambient temperature, maximum +65 °C
- Rated impulse withstand voltage Uimp 0.8 kV
- Note (AS-i Parameter bits) Set the parameter outputs to "1111" (0xF), FID: periphery error
- AS-i Version (A/B Slave) V 3.0
- AS-i Output, DO 2 (A/B Slave) Illuminated signal position 2
- Reaction time, maximum 100 ms
- Terminal Connector Connector plug M12, 4-pole, (A-coding)
- Storage and transport temperature, minimum -25 °C
- Degree of pollution to IEC/EN 60664-1 3
- AS-i Operating voltage AS-i maximum 31.6 VDC
- AS-i Output, DO 3 (Safety-Slave) No Function
- AS-i Output, DO 3 (A/B Slave) No Function
- Indicator lamp Yes
- Mechanical life, Command devices 1,000,000 Operations
- Resistance to vibrations to EN 60068-2-6 10 … 150 Hz, amplitude 0.35 mm / 5 g
- AS-i Operating voltage, minimum 18 VDC
- AS-i Input, Channel 2 (Safety-Slave) Data bits DI 2 / DI 3 = dynamic code transmission
- AS-i Output, DO 2 (Safety-Slave) No Function
- AS-i Input, DI 2 (A/B Slave) Command device Position 2
- Note (AS-i Input module address) Preset to address 0, can be changed through AS-interface bus master or hand-held programming device
- Positions used, position 3 Illuminated pushbutton, blue
- Enclosure material Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
- Height 69 mm
- Degree of protection IP65
- Storage and transport temperature, maximum +85 °C
- Rated insulation voltage Ui 32 VDC
- AS-i Input, Channel 1 (Safety-Slave) Data bits DI 0 / DI 1 = dynamic code transmission
- AS-i Version (Safety-Slave) V 3.0
- AS-i Output, DO 1 (Safety-Slave) Indicator lamp G24 green
- AS-i Input, DI 0 (A/B Slave) Command device Position 4
- AS-i Input, DI 3 (A/B Slave) Command device Position 2
- AS-i AS-i Parameter bits (A/B Slave), P0 ... P3 No function
- Note Both AS-i slaves can be enabled and disabled through the integrated DIP switch. The addressing must take place via the M12 connector.
