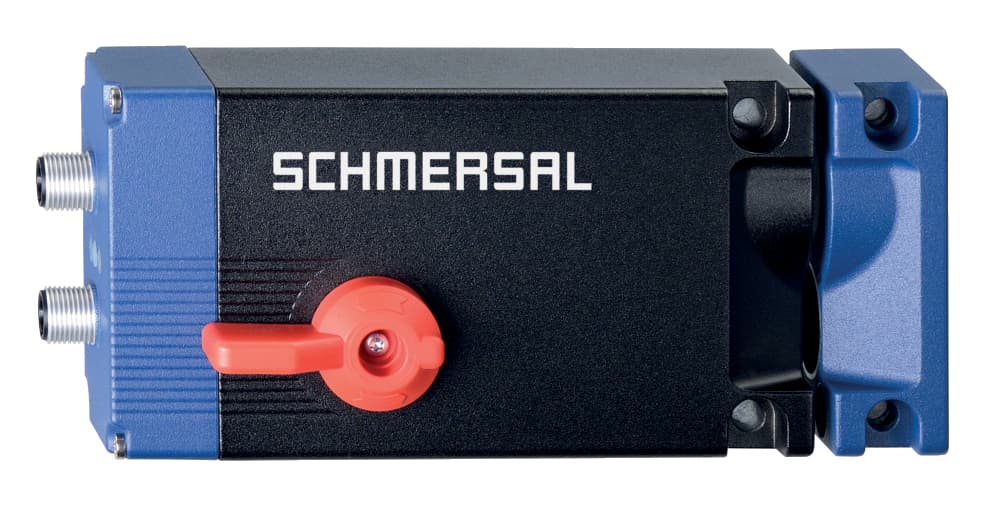

AZM400Z-ST2-2P2P-T-E Schmersal Safety Accessories
Part#:AZM400Z-ST2-2P2P-T-E
Manufacturer:Schmersal
Alt. Part#:103003591
Product Lifecycle:Active
Get a quick Quote!
AZM400Z-ST2-2P2P-T-E Schmersal - Solenoid interlocks; Universal coding with RFID technology; 2 Connector M12, 8- and 5-poles; Guard locking monitored; 2 Diagnostic outputs; Emergency exit; Electric manual release with auxiliary voltage; Bistable, motor-driven system; Clamping force 10.00
About the manufacturer: Schmersal is one of the manufacturers that offers Safety Accessories that you can order at marketplace.quotebeam.com. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.
Check out the AZM400Z-ST2-2P2P-T-E Schmersal price in the box on the right side or send a quick quote.
Product Details
- Gross weight 774 g
- Guard locking monitored Yes
- Active principle Magnetic field, RFID
- Number of safety contacts 2
- Mechanical life, minimum 1,000,000 Operations
- Electronic manual release Yes
- Safety functions Yes
- Clamping force in accordance with ISO14119 Fzh 10,000 N
- Height of sensor 166.7 mm
- Protection rating III
- Current consumption, maximum 600 mA
- Operating current 50 mA
- Minimal average cycle time (with continuous operation) 20 s
- Current, Utilisation category DC12 0.05 A
- Resistance to vibrations to EN 60068-2-6 10 … 150 Hz, amplitude 0.35 mm
- Current consumption at 24V, maximum 15 mA
- Switching thresholds of the control inputs −3 V … 5 V (Low), 15 V … 30 V (High)
- Coding level according to ISO 14119 Low
- Reaction time, maximum 100 ms
- Emergency exit Yes
- Tightening torque of the screw 8 Nm
- Degree of protection IP66 to EN 60529, IP67 to EN 60529
- Voltage, Utilisation category DC12 24 VDC
- Enclosure material Light alloy die-casting
- Standards IEC 60947-5-1, EN ISO 13849-1, IEC 61508
- Integral System Diagnostics, status Yes
- Time to readiness, maximum 1,500 ms
- general information Universal coding
- Note (Lateral force at bolt return) Does not apply to emergency exit, Bowden cable and manual release
- Storage and transport temperature, maximum +85 °C
- Restistance to shock 30 g / 11 ms
- Rated operating voltage 24 VDC
- Allowable discrepancy time (input), maximum 10 s
- Short circuit detection Yes
- Interlocking principle bistable
- Clamping force, maximum Fmax 13,000 N
- Storage and transport temperature, minimum -40 °C
- Overvoltage category III
- Operating Current 100 mA
- Open / close cycle (Motor), minimum 3
- Classification ZVEI CB24I, Source C2
- Short-circuit recognition Yes
- Number of diagnostic signals 2
- Note (Mechanical lifetime) Which have a lateral force Ftrans = 100 N: 100.000 operations
- Length of sensor 65.3 mm
- Ambient temperature, maximum +55 °C
- Rated impulse withstand voltage Uimp 0.8 kV
- Degree of pollution to VDE 0100 3
- Switching frequency, approx. 0.3 Hz
- Voltage drop Ud, maximum 2 V
- Minimum distance devices 30 mm
- Terminal Connector 2 connector M12, 8 and 5 pin
- Ambient temperature, minimum -20 °C
- Current consumption at 24V, minimum 10 mA
- Required rated short-circuit current to EN 60947-5-1 100 A
- Current leakage Ir 1.5 mA
- Note The diagnostic output are not safety relevant outputs!
- Lateral force at bolt return, maximal (against locked door) 300 N
- Width of sensor 77.8 mm
- Rated insulation voltage Ui 32 VDC
- No-load supply current I0 100 mA
- Rated operating current (safety outputs) 250 mA
- Classification ZVEI CB24I, Sink C1, C2
- Voltage, Utilisation category DC13 24 VDC
- Versions short-circuit proof, p-type
- Current, Utilisation category DC13 0.05 A
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
AZM400Z-ST2-2P2P-T-E Description
AZM400Z-ST2-2P2P-T-E Schmersal - Solenoid interlocks; Universal coding with RFID technology; 2 Connector M12, 8- and 5-poles; Guard locking monitored; 2 Diagnostic outputs; Emergency exit; Electric manual release with auxiliary voltage; Bistable, motor-driven system; Clamping force 10.00
