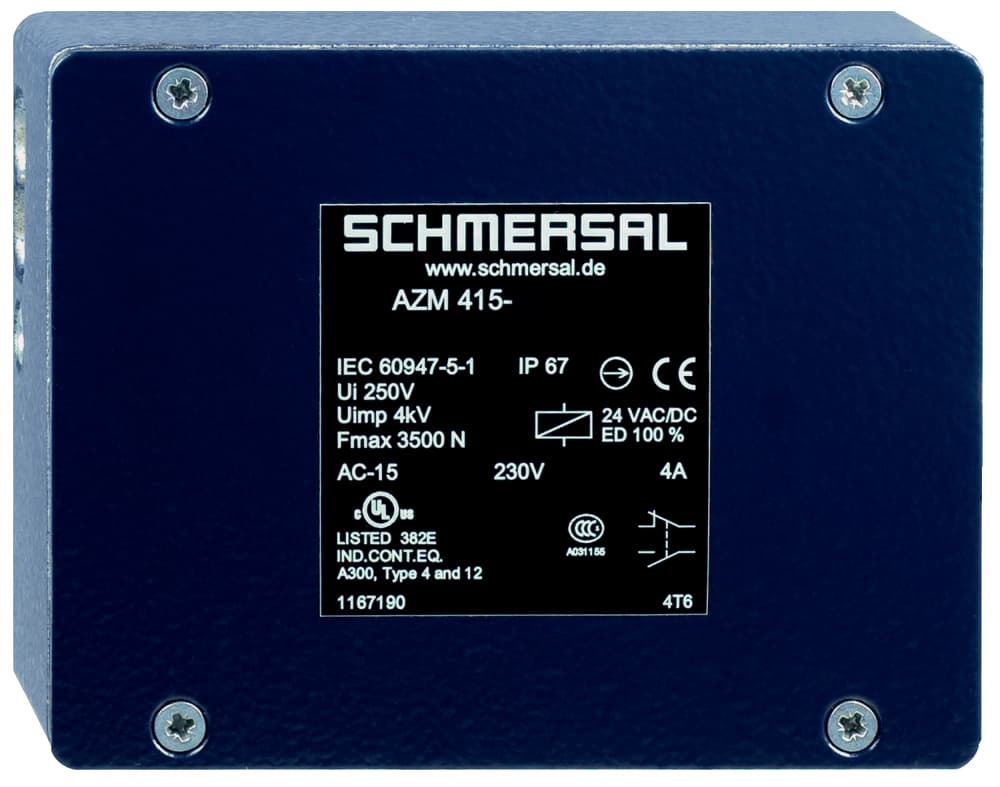

AZM 415-22ZPK-M20 24VAC/DC Schmersal Safety Switches
Part#:AZM 415-22ZPK-M20 24VAC/DC
Manufacturer:Schmersal
Alt. Part#:101152789
Product Lifecycle:Active
Get a quick Quote!
Solenoid interlocks; Adjustable ball latch to 400 N; 2 switches in one enclosure; Problem-free opening of stressed doors by means of bell-crank system; 130 mm x 100 mm x 46,5 mm; Cable entry M20 x 1.5; Metal enclosure; Interlock with protection against in
About the manufacturer: Schmersal is one of the manufacturers that offers Safety Switches that you can order at marketplace.quotebeam.com. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.
Check out the AZM 415-22ZPK-M20 24VAC/DC Schmersal price in the box on the right side or send a quick quote.
Product Details
- Material of the contacts, electrical Silver
- Latching force, minimum 150 N
- Length of sensor 46.5 mm
- Switching element NO contact, NC contact
- Utilisation category DC-13 1 A
- Power to unlock Yes
- Mechanical life, minimum 1,000,000 Operations
- Clamping force in accordance with ISO14119 Fzh 3,500 N
- Ambient temperature, minimum -25 °C
- Rated impulse withstand voltage Uimp 4 kV
- Gross weight 910 g
- Actuating speed, maximum 0.2 m/s
- Degree of protection IP67
- Rated insulation voltage Ui 250 V
- Switching principle Creep circuit element
- Number of auxiliary contacts 2
- positive break travel 5 mm
- Width of sensor 130 mm
- Number of safety contacts 2
- Enclosure coating material painted
- Terminal Connector Screw connection
- Electrical power consumption, maximum 10 W
- Thermal test current 6 A
- Number of actuating directions 1
- Cable section, maximum 2 x 2.5 mm²
- Latching force, maximum 400 N
- Ambient temperature, maximum +50 °C
- Standards EN 60947-5-1, BG-GS-ET-19
- Note (Cable section) All indications about the cable section are including the conductor ferrules.
- Enclosure material Aluminium
- Number of guard doors 1
- Cable section, minimum 2 x 0.75 mm²
- Rated control voltage 24 VAC/DC
- Active principle electromechanical
- Positive break force, minimum 15 N
- Height of sensor 100 mm
- Utilisation category AC-15 230 VAC
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents AZM 415-22ZPK-M20 24VAC/DC Specs
