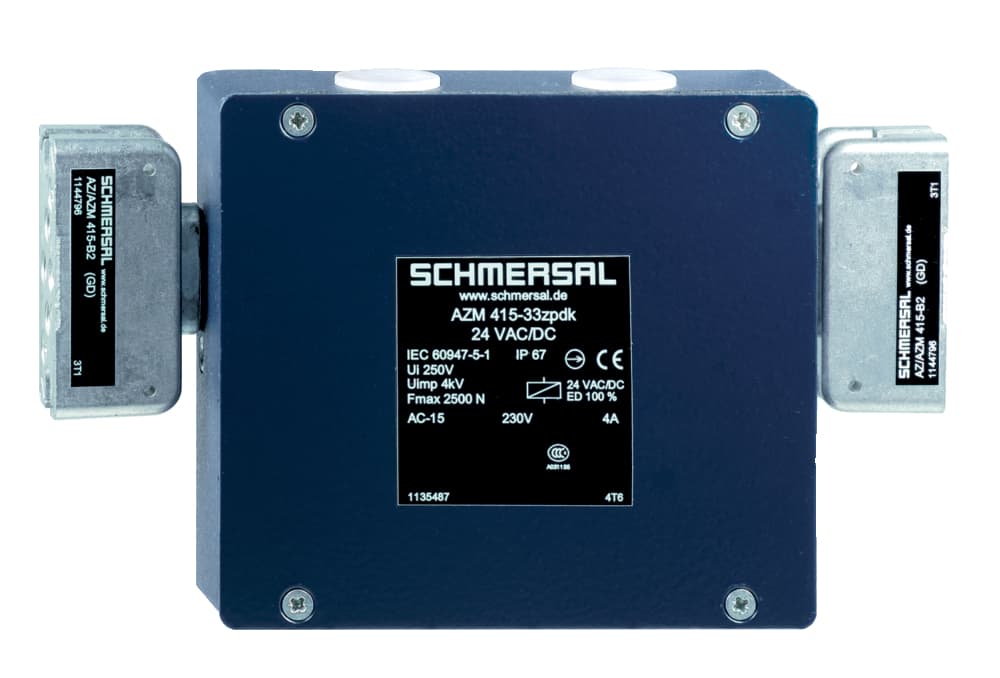

AZM 415-33ZPDKA 110 VAC Schmersal Safety Switch Interlocks
Part#:AZM 415-33ZPDKA 110 VAC
Manufacturer:Schmersal
Alt. Part#:101117715
Product Lifecycle:Active
Get a quick Quote!
Solenoid interlock; Ball latch for each door, individually adjustable up to 400 N; 3 switches in one enclosure; Spring-loaded actuators; for double doors; 141 mm x 125 mm x 46,5 mm; Metal enclosure; Interlock with protection against incorrect locking.; Ro
About the manufacturer: Schmersal is one of the manufacturers that offers Safety Switch Interlocks that you can order at marketplace.quotebeam.com. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.
Check out the AZM 415-33ZPDKA 110 VAC Schmersal price in the box on the right side or send a quick quote.
Product Details
- Power to lock Yes
- Number of safety contacts 3
- Terminal Connector Screw connection
- Degree of protection IP67 to EN 60529
- Standards BG-GS-ET-19, EN 60947-5-1
- Actuating speed, maximum 0.2 m/s
- Width of sensor 141 mm
- Utilisation category AC-15 230 VAC
- Enclosure material Aluminium
- Latching force, maximum 400 N
- Cable section, maximum 2 x 2.5 mm²
- Ambient temperature, maximum +50 °C
- Electrical power consumption, maximum 10 W
- Active principle electromechanical
- Clamping force 2,500 N
- Ambient temperature, minimum -25 °C
- Gross weight 1,240 g
- positive break travel 4.5 mm
- Cable section, minimum 2 x 0.75 mm²
- Material of the contacts, electrical Silver
- Latching force, minimum 150 N
- Rated impulse withstand voltage Uimp 4 kV
- Enclosure coating material painted
- Mechanical life, minimum 1,000,000 Operations
- Note (Clamping force) each guard
- Rated control voltage 110 VAC
- Utilisation category DC-13 1 A
- Number of actuating directions 1
- Number of guard doors 2
- Note (Cable section) All indications about the cable section are including the conductor ferrules.
- Height of sensor 125 mm
- Switching element NO contact, NC contact
- Number of auxiliary contacts 3
- Positive break force, minimum 15 N
- Clamping force in accordance with ISO14119 Fzh 3,500 N
- Length of sensor 46.5 mm
- Thermal test current 6 A
- Switching principle Creep circuit element
- Rated insulation voltage Ui 250 V
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents AZM 415-33ZPDKA 110 VAC Specs
