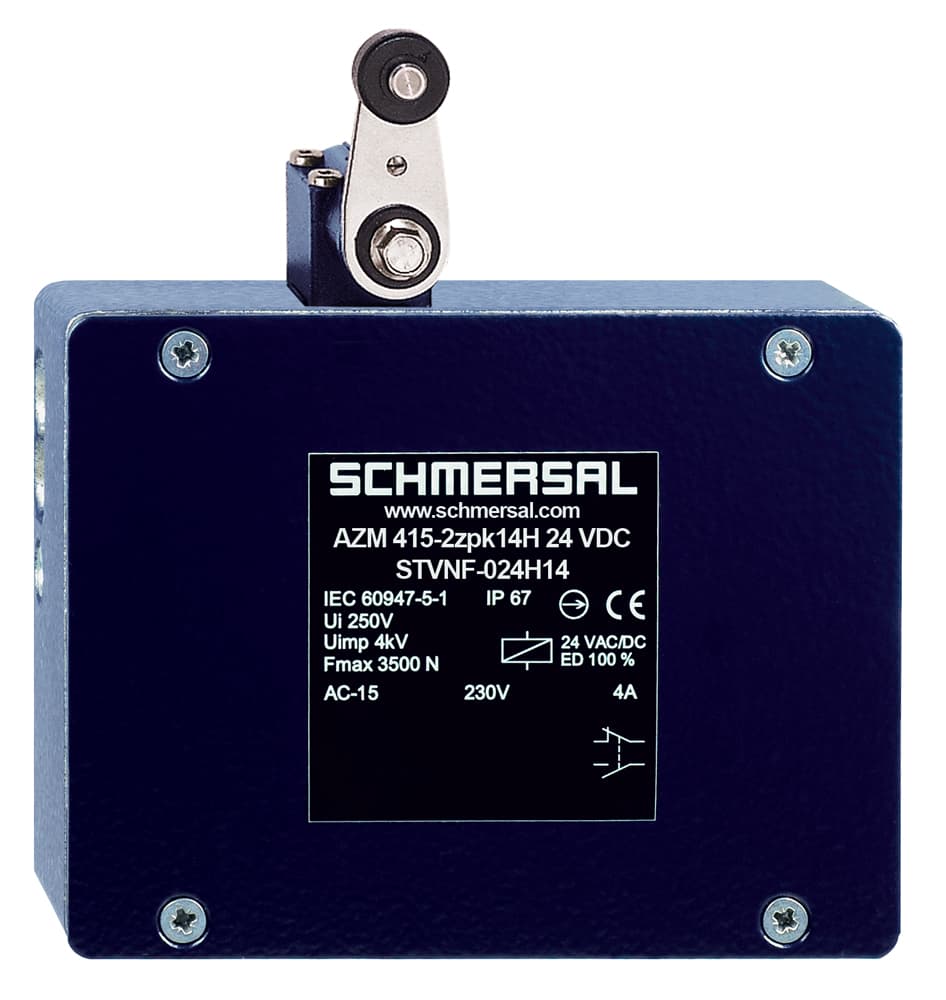

AZM 415-02/11ZPK14H 24 VAC/DC Schmersal Safety Switch Interlocks
Part#:AZM 415-02/11ZPK14H 24 VAC/DC
Manufacturer:Schmersal
Alt. Part#:101174577
Product Lifecycle:Active
Get a quick Quote!
Solenoid interlock; Adjustable ball latch to 400 N; Problem-free opening of stressed doors by means of bell-crank system; Two switches with separate actuators; Suitable for Control Category 4; The condition of the guard device can be scanned; Spring-loade
About the manufacturer: Schmersal is one of the manufacturers that offers Safety Switch Interlocks that you can order at marketplace.quotebeam.com. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.
Check out the AZM 415-02/11ZPK14H 24 VAC/DC Schmersal price in the box on the right side or send a quick quote.
Product Details
- Ambient temperature, minimum -25 °C
- Utilisation category AC-15 4 A
- Cable section, maximum 2 x 2.5 mm²
- Height of sensor 144 mm
- Roller material Plastic
- Active principle electromechanical
- Enclosure coating material painted
- Mechanical life, minimum 1,000,000 Operations
- Number of auxiliary contacts 1
- positive break travel 5 mm
- Width of Castor 5 mm
- Rated impulse withstand voltage Uimp 4 kV
- Electrical power consumption, maximum 10 W
- Material of the contacts, electrical Silver
- Number of actuating directions 1
- Enclosure material Aluminium
- Latching force, minimum 150 N
- Cable section, minimum 2 x 0.75 mm²
- Note (Cable section) All indications about the cable section are including the conductor ferrules.
- Rated insulation voltage Ui 250 V
- Power to unlock Yes
- Number of safety contacts 3
- Length of sensor 56 mm
- Positive break force, minimum 15 N
- Ambient temperature, maximum +50 °C
- Utilisation category DC-13 1 A
- Gross weight 1,030 g
- Standards BG-GS-ET-19, EN 60947-5-1
- Clamping force 3,500 N
- Latching force, maximum 400 N
- Width of sensor 130 mm
- Terminal Connector Screw connection
- Thermal test current 6 A
- Material of the actuator Zinc-plated metal
- Number of guard doors 1
- Clamping force in accordance with ISO14119 Fzh 3,500 N
- Actuating speed, maximum 0.2 m/s
- Degree of protection IP67 to EN 60529
- Rated control voltage 24 VDC
- Switching element NO contact, NC contact
- Switching principle Creep circuit element
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents AZM 415-02/11ZPK14H 24 VAC/DC Specs
