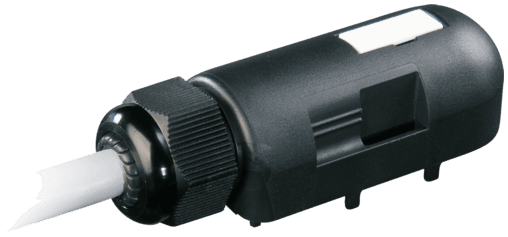

8000-86049-3500500 Murr Elektronik Electronic Components

Product Details

• Cable Type
  2 (PUR/PVC)
• Total current
  max. 8 A
• Housing
  Plastic, flame retardant
• Shield
  no
• thermal resistance
  flame retardant
• Product article number of manufacturer
  8000-86049-3500500
• Outer Ø
  7.8 mm ±5%
• Shore hardness (jacket)
  85 ±5 A
• Temperature range (fixed)
  -30...+80 °C
• Wire isolation
  PVC (bl, wh, gn, ye, gr, pk, rd, br)
• Material (wire isolation)
  PVC
• Bend radius (fixed)
  5× outer Ø
• C-track properties
  2 Mio.
• Material (jacket)
  PUR/PVC
• Nominal voltage
  300/300 V AC
• Cable number
  350
• Material property (jacket)
  CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis and microbial resistant
• No. of bending cycles (C-track)
  max. 2 Mio. (25 °C)
• No./diameter of wires
  6× 0.34 + 2× 0.75 mm²
• Diameter (core)
  6× 0.34 + 2× 0.75 mm²
Shore hardness (wire isolation)
55 ±5 D
Jacket Color
gray
Color (jacket)
gray
Travel speed (C-track)
max. 2 m/s
Cable identification
350
Cable weight [g/m]
94,6 g
Material property (wire isolation)
CFC-, cadmium-, silicone- and lead-free
Test voltage
2000 V AC
Temperature range (mobile)
-5...+70 °C
chemical resistance
good resistance to oil, gasoline and chemicals
Bend radius (moving)
10× outer Ø
Temperature range
-20...+80 °C, depending on cable quality
Material (wire)
Cu wire, bare
Outer-Ø (jacket)
7.8 mm ±5%
Acceleration (C-track)
max. 10 m/s²
