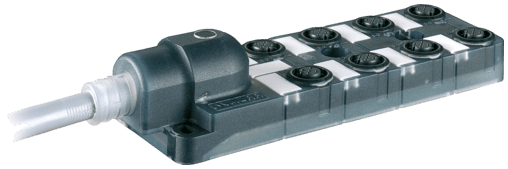

8000-88410-3620500 Murr Elektronik I/O Distributors

Product Details

• Weight694.13 g
• SeriesDistribution Systems
• Temperature range
  -20...+70 °C, depending on cable quality
• Locking of ports
  Screw thread (M12×1 mm)
• C-track properties
  2 Mio.
• Cable identification
  362
• No./diameter of wires
  8× 0.34 + 3× 0.75 mm²
• Wire isolation
  PVC
• Operating current per contact
  max. 4 A
• Protection
  IP65/IP67
• Housing
  Plastic, flame retardant
• Operating voltage
  24 V DC
• Cable Type
  2 (PUR/PVC)
• Wire-Ø incl. isolation
  1.3 mm ±5% (0.34 mm²); 1.8 mm ±5% (0.75 mm²)
• Outer-Ø (jacket)
  8.1 mm ±5%
• Temperature range (mobile)
  -5...+70 °C
• PIN 5
  (Earth)
• Approval (cable)
  UL (AWM-Style 20549/1731), CE conform
• Single wire Ø (core)
  0.15 mm (0.34 mm²); 0.2 mm (0.75 mm²)
• Shield
  no
Color (jacket)
gray
Bend radius (fixed)
5× outer Ø
PIN 1
(+)
Material (wire)
Cu wire, bare
AWG
similar to AWG 22 (0.34 mm²); similar to AWG 18 (0.75 mm²)
Color/numbering of wires
wh, vi, gn, ye, gr, pk, rd, bk+br, bl, gnye longitudinally striped
Temperature range (fixed)
-30...+80 °C
Cable weight [g/m]
115,5 g
Material (wire isolation)
PVC
Test voltage
2000 V AC
Outer Ø
8.1 mm ±5%
Jacket Color
gray
No. of bending cycles (C-track)
max. 2 Mio. (25 °C)
Product article number of manufacturer
8000-88410-3620500
Construction (core)
19× 0.15 mm (0.34 mm²); 24× 0.2 mm (0.75 mm²); (multi-strand wire class 5)
Material (jacket)
PUR/PVC
Acceleration (C-track)
max. 10 m/s²
Shore hardness (wire isolation)
43 ±5 D
Resistor (core)
max. 57 Ω/km (0.34 mm²), max. 26 Ω/km (0.75 mm²); (20 °C)
chemical resistance
good resistance to oil, gasoline and chemicals (EN 60811-404)
Current load capacity
to DIN VDE 0298-4
PIN 3
(-)
Material property (wire isolation)
CFC-, cadmium-, silicone- and lead-free
Bend radius (moving)
10× outer Ø
Diameter (core)
8× 0.34 + 3× 0.75 mm²
Nominal voltage
U0/U 300/300 V AC
Travel speed (C-track)
max. 2 m/s
PIN 4
(NO)/(S1)
