8000-84510-3631000 Murr Elektronik I/O Distributors
Part#:8000-84510-3631000
Manufacturer:Murr Elektronik
Product Lifecycle:Active
In-stock parts: 4
Jun 20, 2025

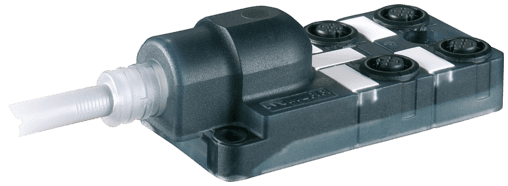

8000-84510-3631000 Murrelektronik - EXACT12, 4XM12, 5-POLE, MOULDED CABLE, 10.0m PUR/PVC 8x0,34+3X0.75, UL/CSA
About the manufacturer: Murr Elektronik is one of the manufacturers that offers I/O Distributors that you can order at marketplace.quotebeam.com. Murrelektronik is a worldwide frontrunner in creating, producing, and distributing automation solutions. Our product offerings are categorized into four main lines: Power Supplies and Control, Interfaces, Cables/Connectors, and IO Systems.
Check out the 8000-84510-3631000 Murr Elektronik price in the box on the right side or send a quick quote.
Product Details
- Weight1450 g
- SeriesDistribution Systems
- Housing Plastic, flame retardant
- Cable identification 363
- AWG similar to AWG 22 (0.34 mm²); similar to AWG 18 (0.75 mm²)
- Test voltage 2000 V AC
- PIN 2 (NC)/(S2)
- Operating voltage 24 V DC
- Construction (core) 19× 0.15 mm (0.34 mm²); 24× 0.2 mm (0.75 mm²); (multi-strand wire class 5)
- Shield no
- Current load capacity to DIN VDE 0298-4
- Acceleration (C-track) max. 10 m/s²
- Temperature range -20...+70 °C, depending on cable quality
- Material (wire) Cu wire, bare
- Color/numbering of wires wh, ye, gr, grpk, rdbl, gn, whgn, brgn+bl, br, gnye longitudinally striped
- Temperature range (mobile) -5...+70 °C
- PIN 5 (Earth)
- Wire isolation PVC
- Single wire Ø (core) 0.15 mm (0.34 mm²); 0.2 mm (0.75 mm²)
- Material (jacket) PUR/PVC
- Temperature range (fixed) -30...+80 °C
- Travel speed (C-track) max. 2 m/s
- Protection IP65/IP67
- Diameter (core) 8× 0.34 + 3× 0.75 mm²
- Outer-Ø (jacket) 8.1 mm ±5%
- No. of bending cycles (C-track) max. 2 Mio. (25 °C)
- Operating current per contact max. 4 A
- Cable number 363
- Shore hardness (wire isolation) 43 ±5 D
- chemical resistance good resistance to oil, gasoline and chemicals (EN 60811-404)
- PIN 3 (-)
- C-track properties 2 Mio.
- Locking of ports Screw thread (M12×1 mm)
- Cable Type 2 (PUR/PVC)
- Resistor (core) max. 57 Ω/km (0.34 mm²), max. 26 Ω/km (0.75 mm²); (20 °C)
- Material (wire isolation) PVC
- Shore hardness (jacket) 87 ±5 A
- Jacket Color gray
- Bend radius (fixed) 5× outer Ø
- PIN 4 (NO)/(S1)
- Outer Ø 8.1 mm ±5%
- Cable weight [g/m] 115,5 g
- Material property (wire isolation) CFC-, cadmium-, silicone- and lead-free
- Nominal voltage U0/U 300/300 V AC
- Bend radius (moving) 10× outer Ø
- Product article number of manufacturer 8000-84510-3631000
- No./diameter of wires 8× 0.34 + 3× 0.75 mm²
- Approval (cable) UL (AWM-Style 21441/10955), CE conform
- Wire-Ø incl. isolation 1.3 mm ±5% (0.34 mm²); 1.8 mm ±5% (0.75 mm²)
- Color (jacket) gray
- PIN 1 (+)
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
8000-84510-3631000 Description
8000-84510-3631000 Murrelektronik - EXACT12, 4XM12, 5-POLE, MOULDED CABLE, 10.0m PUR/PVC 8x0,34+3X0.75, UL/CSA
