8000-88010-3590500 Murr Elektronik I/O Distributors
Part#:8000-88010-3590500
Manufacturer:Murr Elektronik
Product Lifecycle:Active
In-stock parts: 5
Jun 20, 2025

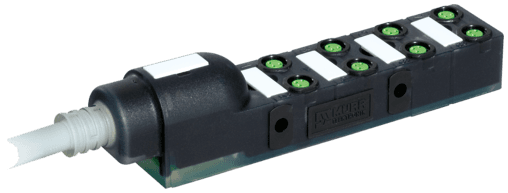

8000-88010-3590500 Murrelektronik - EXACT8, 8XM8, 3 POLE MOULDED CABLE, 5.0m PUR 8x0,34+2x0,75, UL/CSA
About the manufacturer: Murr Elektronik is one of the manufacturers that offers I/O Distributors that you can order at marketplace.quotebeam.com. Murrelektronik is a worldwide frontrunner in creating, producing, and distributing automation solutions. Our product offerings are categorized into four main lines: Power Supplies and Control, Interfaces, Cables/Connectors, and IO Systems.
Check out the 8000-88010-3590500 Murr Elektronik price in the box on the right side or send a quick quote.
Product Details
- Weight677.33 g
- SeriesDistribution Systems
- Temperature range -20...+80 °C, depending on cable quality
- Cable number 359
- PIN 3 (-)
- Outer Ø 9.2 mm ±5%
- Temperature range (fixed) -40...+80 °C
- Signal per port 1 - (31-32)
- No./diameter of wires 8× 0.34 + 2× 0.75 mm²
- Jacket Color gray
- Form 88010
- Bend radius (fixed) 5× outer Ø
- PIN 4 (NO)/(S1)
- Protection IP65/IP67
- Material (jacket) PUR (UL/CSA)
- Locking of ports Screw thread (M8×1 mm)
- C-track properties 5 Mio.
- Housing Plastic, flame retardant
- Wire isolation TPE (vi, bk, rd, pk, gr, ye, gn, wh+br, bl)
- PIN 1 (+)
- Operating voltage 24 V DC
- Color (jacket) gray
- Product article number of manufacturer 8000-88010-3590500
- Operating current per contact max. 2 A
- Bend radius (moving) 10× outer Ø
- Total current max. 8 A
- Temperature range (mobile) -5...+60 °C
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
8000-88010-3590500 Description
8000-88010-3590500 Murrelektronik - EXACT8, 8XM8, 3 POLE MOULDED CABLE, 5.0m PUR 8x0,34+2x0,75, UL/CSA
Related documents 8000-88010-3590500 Specs
