YS39A1 Hubbell Electronic Components
Part#:YS39A1
Manufacturer:Hubbell
Product Lifecycle:Active
Get a quick Quote!

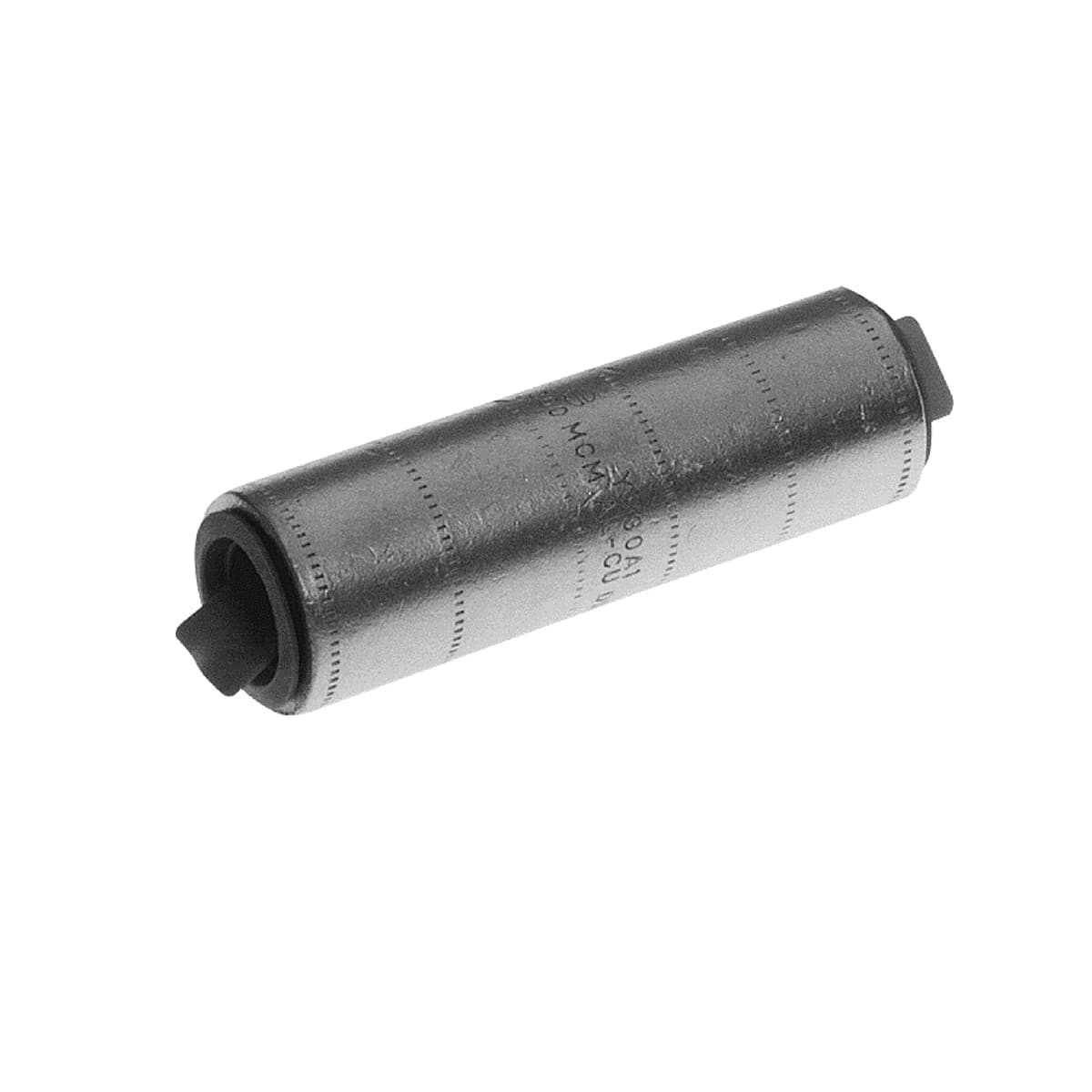

750 kcmil AL Splice, AL9CU, Internal Chamfer, Tin Plated, Prefilled PENETROX™, End Cap, UL/CSA, 90°C, Up to 35kV, Yellow Color Code, 936 Die Index ; Features: Manufactured From High-Conductivity Wrought Aluminum With Heavy Duty Wall Thickness: Provides H
About the manufacturer: Hubbell is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Hubbell offers a variety of products that are specifically designed to tackle challenges faced by businesses, increase energy efficiency, enhance safety, perform well in harsh environments, streamline wiring organization, and improve grounding systems in and around buildings.
Check out the YS39A1 Hubbell price in the box on the right side or send a quick quote.
Product Details
- Color Code Yellow
- Feature - Barrel Type Long
- Conductor - Copper Str Size 700 kcmil; 750 kcmil
- Conductor - Copper Str Size Range 750 kcmil
- Certification - UL Recognized No
- Conductor - Copper Str Compact Size 700;750
- UL Listed Yes
- Certification - ETL No
- EU RoHS Indicator Yes
- Feature - Barrel Style Chamfered
- Die Index 936
- Connector Type Splice
- Trade Name HYLINK™
- Plated Y
- Wire Size 750 kcmil
- Conductor - AL Str Size 700 kcmil; 750 kcmil
- Certification - CSA Approved Yes
- Standards - RoHS Compliance Status CM
- Industry Standard(s) UL 486A-486B
- Standards - Industry Standards Met UL 486A-486B
- Minimum Pack Quantity 1
- Certification - cULus No
- Dimension - B Length inch 2.50 in
- UPC 781810766026
- Voltage Rating 35 kV
- Temperature Rating 194
- Sub Brand HYLINK
- Dimension - L Length Overall mm 134 mm
- Length 5.26 in
- Type YS-A, Standard Barrel
- Dimension - B Length fraction 2-1/2 in
- Dimension - Strip Length inch 2-7/8 in
- Voltage - Maximum 35000
- Plating Type Tin - Electro Plated
- UPC 12 Digit 7818107660266
- Rating - KVA 35 kV
- Conductor - AL Str Size Range 750 kcmil
- Dimension - Outside Diameter inch 1.46 in
- Dimension - Length Overall inch 5.26 in
- Outside Diameter 1.46 in
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents YS39A1 Specs
